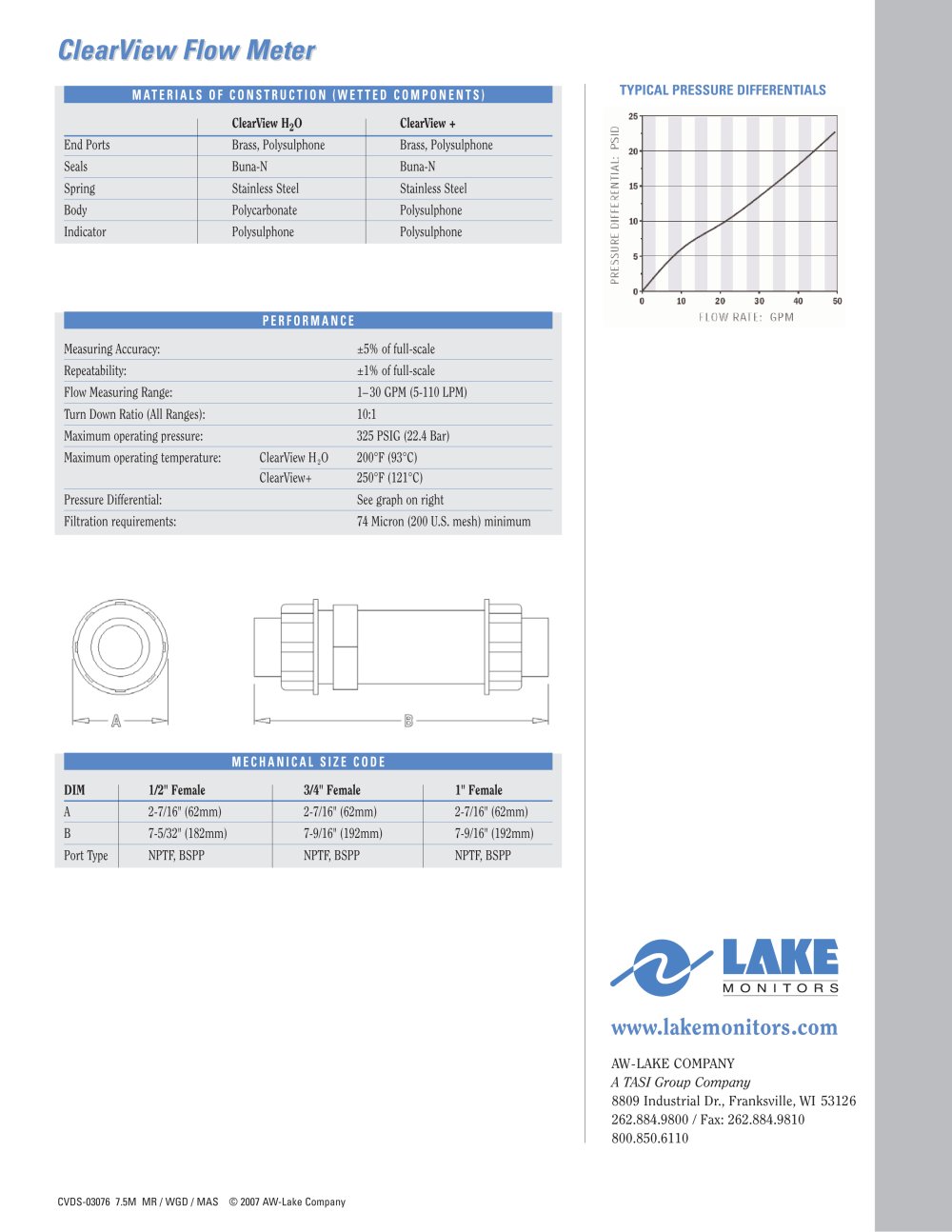

ClearView Flow MeterClearView Flow Meter
MATERIALS OF CONSTRUCTION (WETTED COMPONENTS) TYPICAL PRESSURE DIFFERENTIALS ClearView H2 OClearView + End Ports Brass, Polysulphone Brass, Polysulphone SealsBuna-NBuna-N SpringStainless SteelStainless Steel BodyPolycarbonatePolysulphone IndicatorPolysulphonePolysulphone PERFORMANCE Measuring Accuracy:±5% of full-scale Repeatability:±1% of full-scale Flow Measuring Range:1–30 GPM (5-110 LPM) Turn Down Ratio (All Ranges):10:1 Maximum operating pressure:325 PSIG (22.4 Bar) Maximum operating temperature:ClearView H
2 O200°F (93°C) ClearView+ 250°F (121°C) Pressure Differential:See graph on right Filtration requirements:74 Micron (200 U.S. mesh) minimum MECHANICAL SIZE CODE DIM 1/2" Female3/4" Female1" Female A2-7/16" (62mm)2-7/16" (62mm)2-7/16" (62mm) B7-5/32" (182mm)7-9/16" (192mm)7-9/16" (192mm)Port TypeNPTF, BSPPNPTF, BSPPNPTF, BSPP
