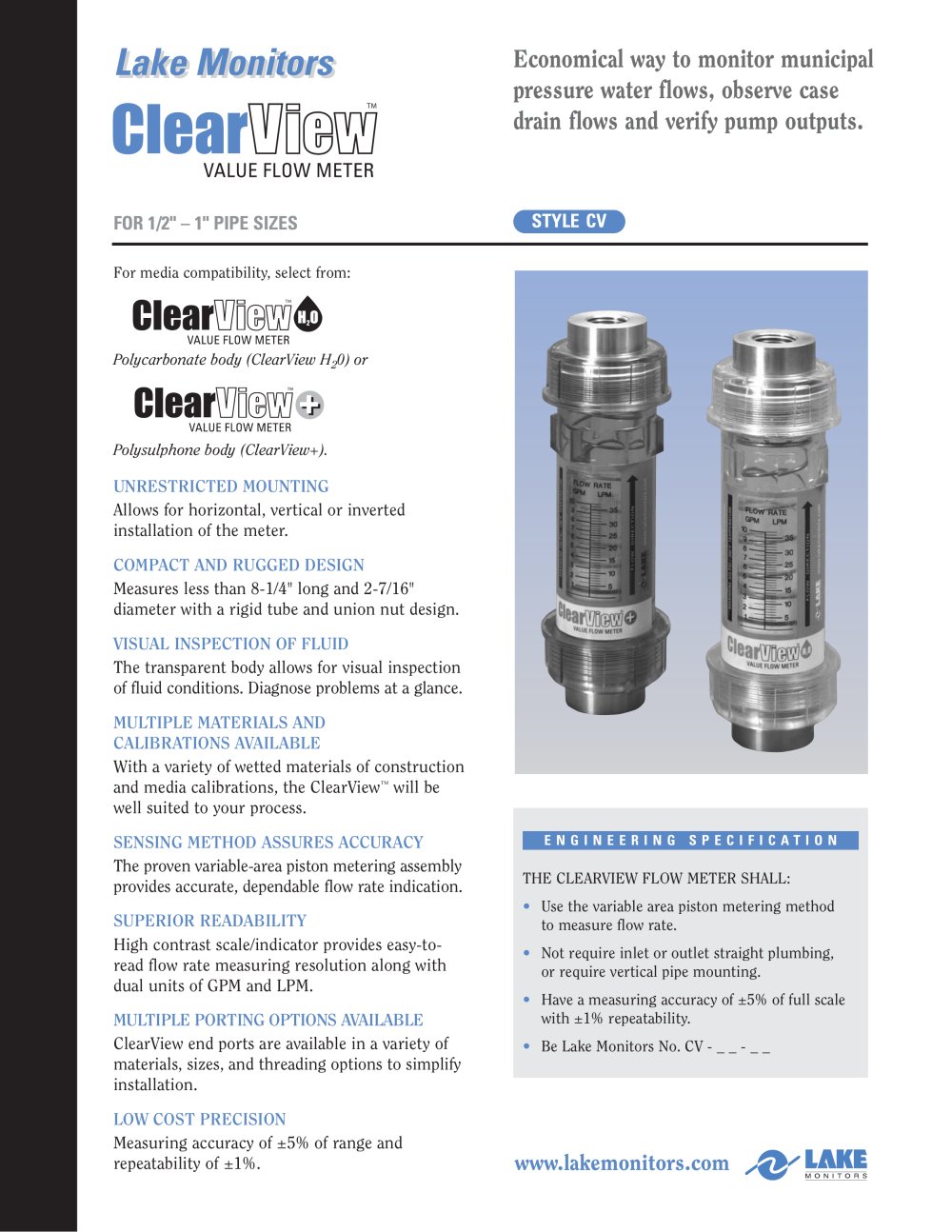

Lake Monitors Lake Monitors

Economical way to monitor municipalpressure water flows, observe case drain flows and verify pump outputs.

TM

FOR 1/2" – 1" PIPE SIZES STYLECV

For media compatibility, select from: TM HO 2 Polycarbonate body (ClearView H 2 0) orPolysulphone body (ClearView+). TM

Lake Monitors Brand Catalog - 13569 + +

UNRESTRICTED MOUNTING Allows for horizontal, vertical or inverted installation of the meter. COMPACT AND RUGGED DESIGN Measures less than 8-1/4" long and 2-7/16" diameter with a rigid tube and union nut design. VISUAL INSPECTION OF FLUID The transparent body allows for visual inspectionof fluid conditions. Diagnose problems at a glance. MULTIPLE MATERIALS ANDCALIBRATIONS AVAILABLE With a variety of wetted materials of constructionand media calibrations, the ClearView
™ will bewell suited to your process. SENSING METHOD ASSURES ACCURACY
ENGINEERING SPECIFICATION The proven variable-area piston metering assemblyprovides accurate, dependable flow rate indication.
THE CLEARVIEW FLOW METER SHALL: • Use the variable area piston metering method to measure flow rate. SUPERIOR READABILITY High contrast scale/indicator provides easy-to-read flow rate measuring resolution along with dual units of GPM and LPM.
• Not require inlet or outlet straight plumbing, or require vertical pipe mounting. MULTIPLE PORTING OPTIONS AVAILABLE ClearView end ports are available in a variety ofmaterials, sizes, and threading options to simplify installation.
• Have a measuring accuracy of ±5% of full scale with ±1% repeatability. LOW COST PRECISION
• Be Lake Monitors No. CV - _ _ - _ _ Measuring accuracy of ±5% of range and repeatability of ±1%.

www.lakemonitors.com
