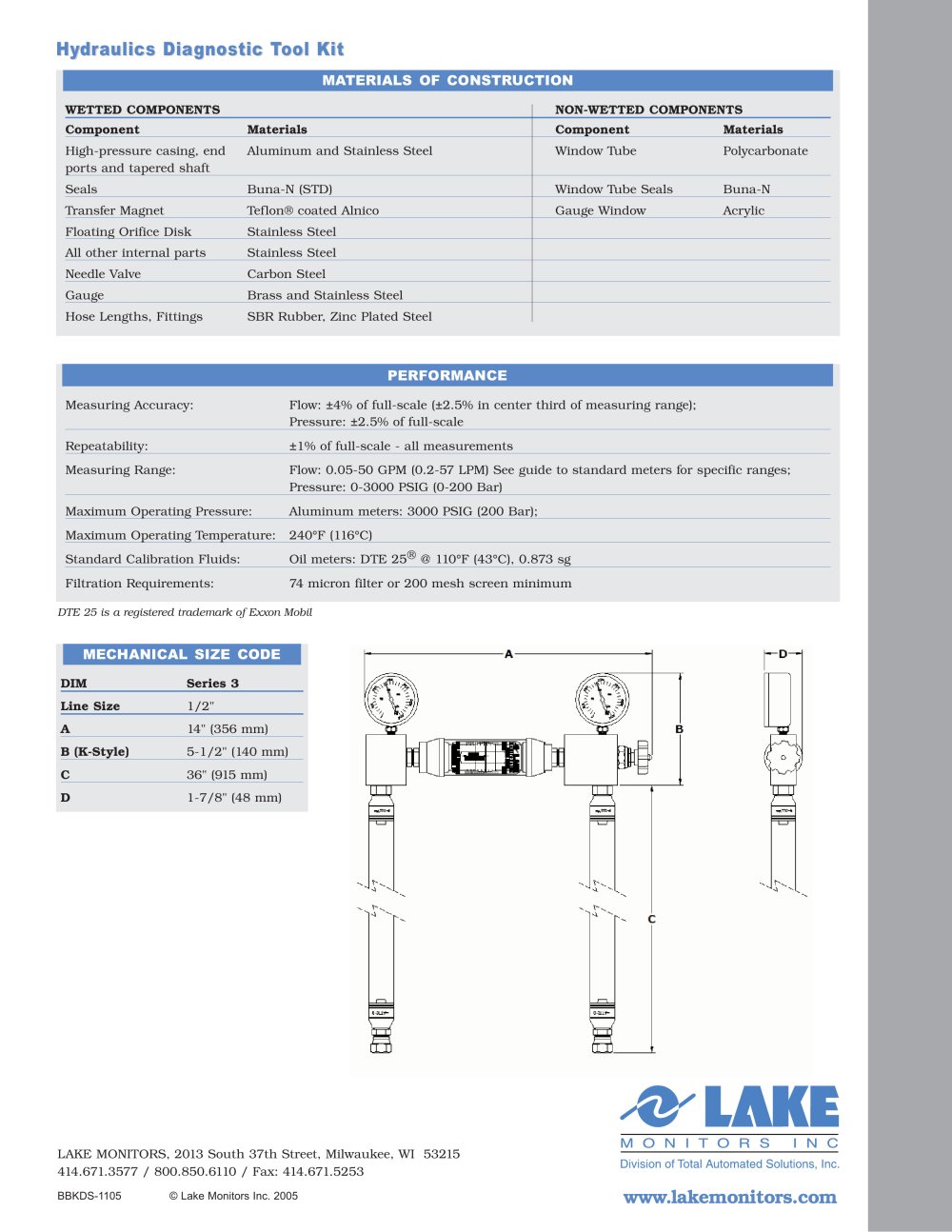

HyHydrdraulics Diaaulics DiagnosticgnosticTTool Kitool Kit

MATERIALSOFCONSTRUCTION

WETTED COMPONENTSNON-WETTED COMPONENTS ComponentMaterialsComponentMaterials High-pressure casing, endAluminum and Stainless SteelWindow TubePolycarbonate ports and tapered shaft SealsBuna-N (STD)Window Tube SealsBuna-N Transfer MagnetTeflon® coated AlnicoGauge WindowAcrylic Floating Orifice DiskStainless Steel All other internal partsStainless Steel Needle ValveCarbon Steel GaugeBrass and Stainless Steel Hose Lengths, FittingsSBR Rubber, Zinc Plated Steel

PERFORMANCE

Measuring Accuracy:Flow: ±4% of full-scale (±2.5% in center third of measuring range); Pressure: ±2.5% of full-scale Repeatability: ±1% of full-scale - all measurementsMeasuring Range:Flow: 0.05-50 GPM (0.2-57 LPM) See guide to standard meters for specific ranges; Pressure: 0-3000 PSIG (0-200 Bar) Maximum Operating Pressure:Aluminum meters: 3000 PSIG (200 Bar); Maximum Operating Temperature:240°F (116°C) Standard Calibration Fluids:Oil meters: DTE 25®@ 110°F (43°C), 0.873 sgFiltration Requirements:74 micron filter or 200 mesh screen minimum
DTE 25 is a registered trademark of Exxon Mobil

MECHANICALSIZECODE

DIMSeries 3 Line Size 1/2" A 14" (356 mm) B (K-Style) 5-1/2" (140 mm) C 36" (915 mm) D 1-7/8" (48 mm) LAKE MONITORS, 2013 South 37th Street, Milwaukee, WI 53215414.671.3577 / 800.850.6110 / Fax: 414.671.5253
BBKDS-1105© Lake Monitors Inc. 2005
