STYLE BBK

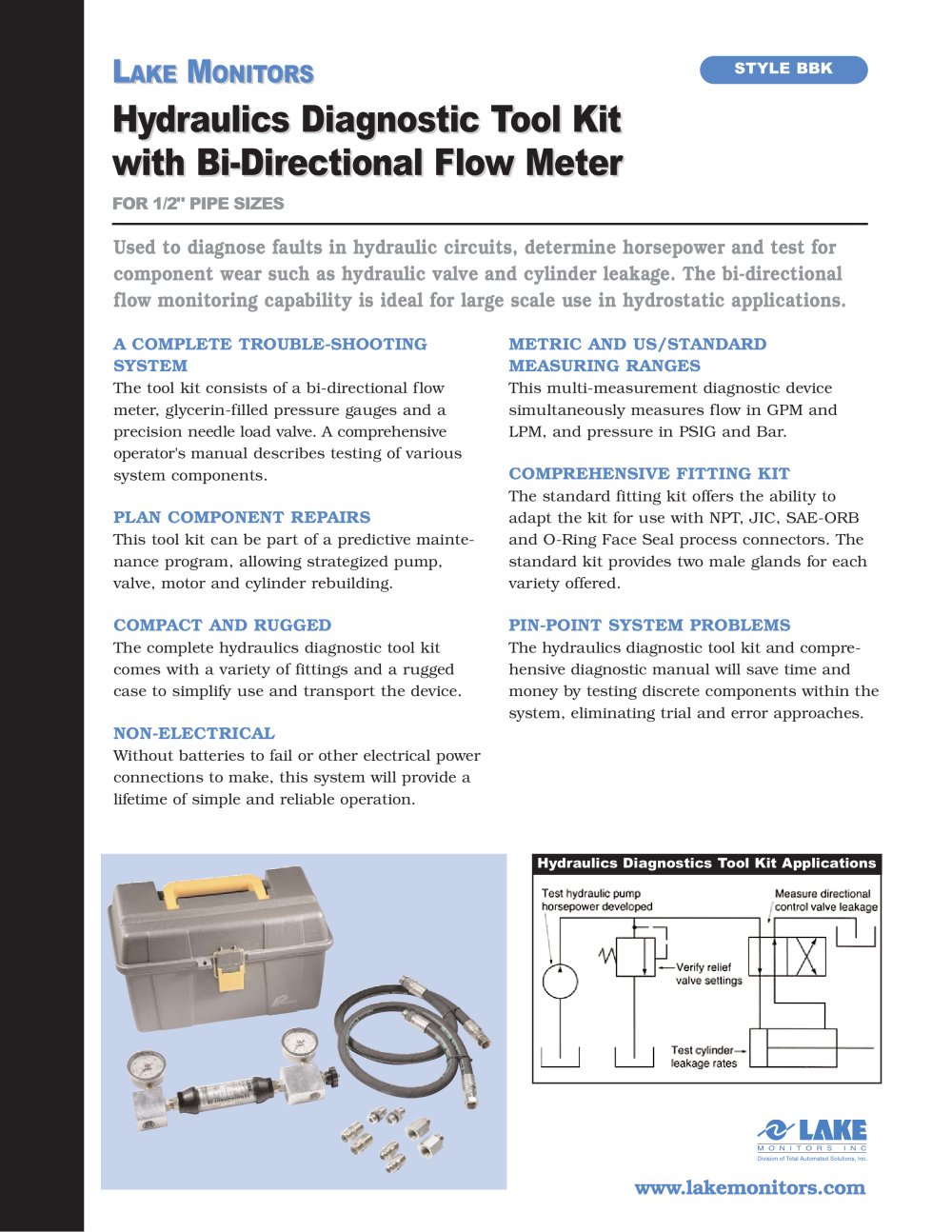

Lake Monitors Brand Catalog - 13569 HyHydrdraulics Diaaulics DiagnosticgnosticTTool Kitool Kitwith Bi-Dirwith Bi-Directional Fectional Flolow Meterw Meter

FOR 1/2" PIPE SIZES

Used to diagnose faults in hydraulic circuits, determine horsepower and test forcomponent wear such as hydraulic valve and cylinder leakage. The bi-directional flow monitoring capability is ideal for large scale use in hydrostatic applications.

A COMPLETE TROUBLE-SHOOTINGSYSTEM METRIC AND US/STANDARDMEASURING RANGES
The tool kit consists of a bi-directional flowmeter, glycerin-filled pressure gauges and a precision needle load valve. A comprehensiveoperator's manual describes testing of varioussystem components. This multi-measurement diagnostic devicesimultaneously measures flow in GPM and LPM, and pressure in PSIG and Bar. COMPREHENSIVE FITTING KIT
The standard fitting kit offers the ability to adapt the kit for use with NPT, JIC, SAE-ORB and O-Ring Face Seal process connectors. The standard kit provides two male glands for each variety offered. PLAN COMPONENT REPAIRS
This tool kit can be part of a predictive mainte- nance program, allowing strategized pump, valve, motor and cylinder rebuilding. COMPACT AND RUGGED PIN-POINT SYSTEM PROBLEMS
The complete hydraulics diagnostic tool kit comes with a variety of fittings and a rugged case to simplify use and transport the device. The hydraulics diagnostic tool kit and compre- hensive diagnostic manual will save time and money by testing discrete components within the system, eliminating trial and error approaches. NON-ELECTRICAL
Without batteries to fail or other electrical power connections to make, this system will provide a lifetime of simple and reliable operation. Hydraulics Diagnostics Tool Kit Applications
