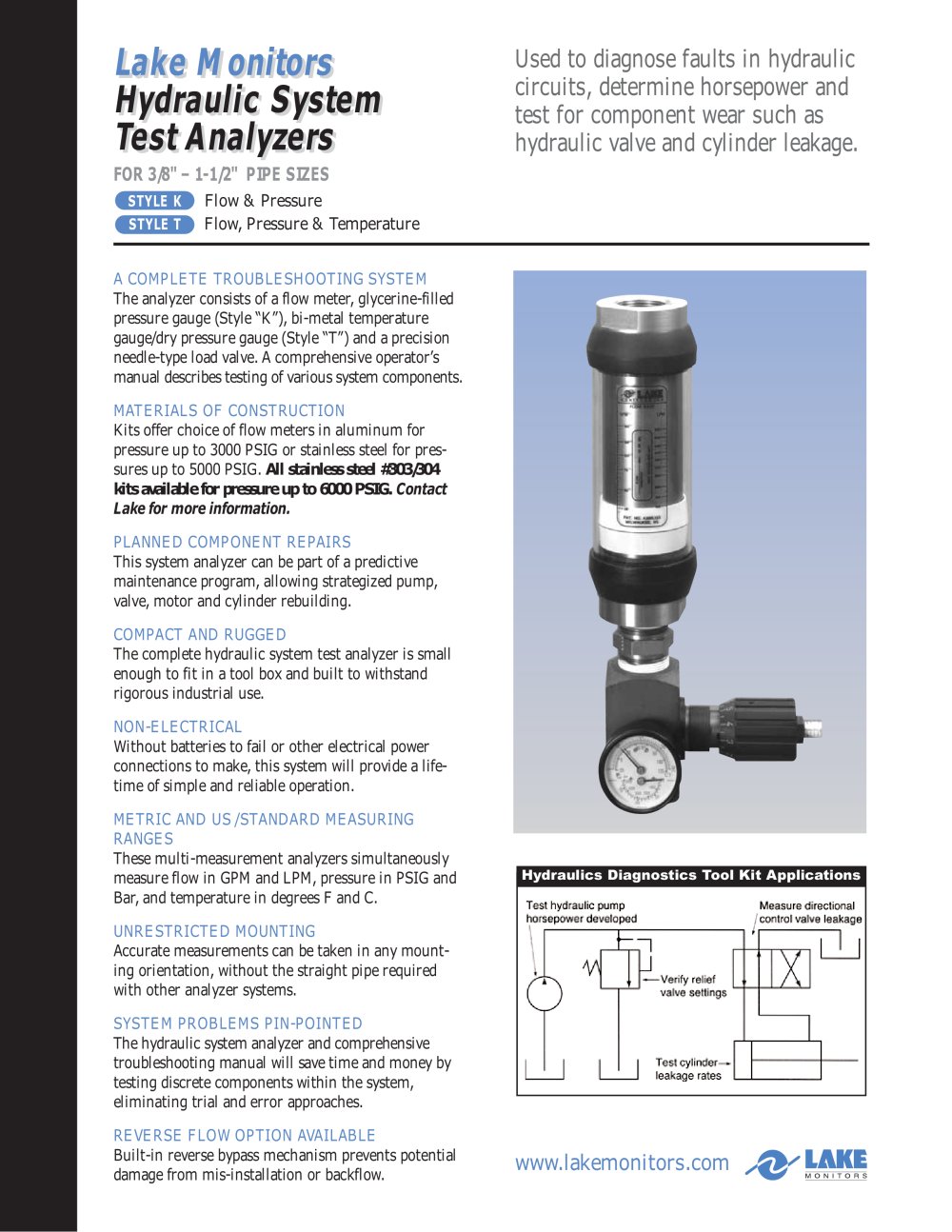

Lake Monitorsdraulic Sste Test Analers Lake Monitorsdraulic Sste Test Analers

Used to diagnose faults in hydrauliccircuits, determine horsepower and test for component wear such as hydraulic ale and cylinder leakage.

FOR /8" – 1-1/2" PIPE SIZES

STYLE

Flow Pressure

STYLET

Flow, Pressure Temperature

MATERIALS OF CONSTRUCTION A COMPLETE TROUBLESHOOTING SYSTEM its offer choice of flow meters in aluminum for pressure up to 000 PSIG or stainless steel for pres-sures up to 5000 PSIG. The analyzer consists of a flow meter, glycerine-filled pressure gauge Style , bi-metal temperature gauge/dry pressure gauge Style T and a precision needle-type load valve. A comprehensive operators manual describes testing of various system components. A 3334 PSI ontactLae for more information. PLANNED COMPONENT REPAIRS This system analyzer can be part of a predictive maintenance program, allowing strategized pump, valve, motor and cylinder rebuilding. COMPACT AND RUGGED The complete hydraulic system test analyzer is small enough to fit in a tool box and built to withstand rigorous industrial use. NON-ELECTRICAL Without batteries to fail or other electrical power connections to make, this system will provide a life- time of simple and reliable operation. METRIC AND USSTANDARD MEASURINGRANGES These multi-measurement analyzers simultaneously measure flow in GPM and LPM, pressure in PSIG and Bar, and temperature in degrees F and C. UNRESTRICTED MOUNTING Accurate measurements can be taken in any mount- ing orientation, without the straight pipe required with other analyzer systems. SYSTEM PROBLEMS PIN-POINTED REVERSE FLOW OPTION AVAILABLE The hydraulic system analyzer and comprehensive troubleshooting manual will save time and moneyby testing discrete components within the system, eliminating trial and error approaches. Built-in reverse bypass mechanism prevents potential damage from mis-installation or backflow.
Hydraulics Diagnostics Tool Kit Applications
