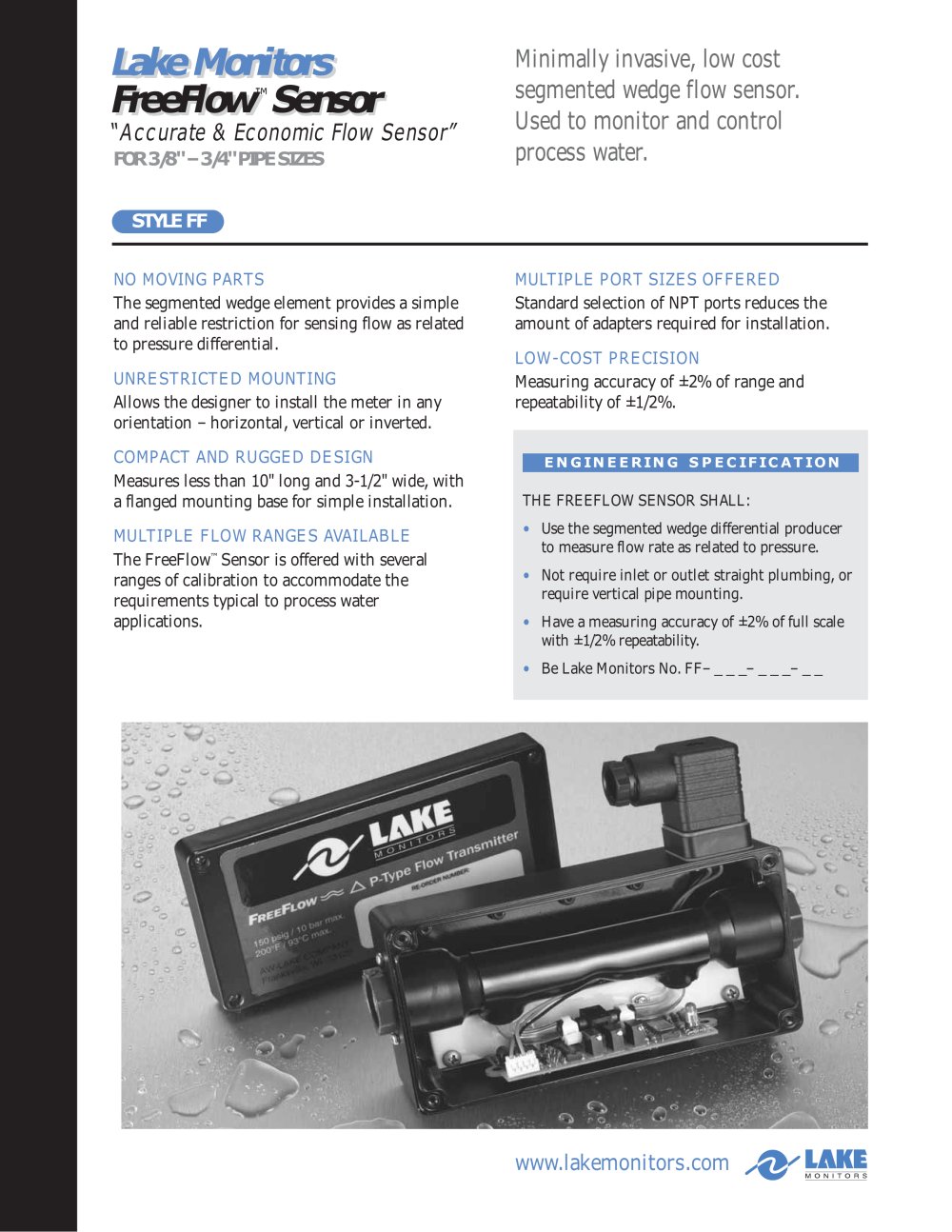

Lake MonitorsFreeFlow Lake Monitors FreeFlowSensor

Minimally inasie, low cost segmented wedge flow sensor. Used to monitor and control process water.

™

“Accrate conoic o Sensor”

Sensor

FOR /8" – /" PIPE SIZES STYLEFF

NO MOVING PARTS MULTIPLE PORT SIES OFFERED The segmented wedge element provides a simpleand reliable restriction for sensing flow as related to pressure differential. Standard selection of NPT ports reduces theamount of adapters required for installation. UNRESTRICTED MOUNTING Allows the designer to install the meter in anyorientation – horizontal, vertical or inverted. LOW-COST PRECISION Measuring accuracy of ±2% of range and repeatability of ±/2%. COMPACT AND RUGGED DESIGN Measures less than 0 long and -/2 wide, witha flanged mounting base for simple installation.
ENGINEERING SPECIFICATION MULTIPLE FLOW RANGES AVAILABLE
THE FREEFLOW SENSOR SHALL: The FreeFlowSensor is offered with severalranges of calibration to accommodate the requirements typical to process water applications.
? Use the segmented wedge differential producer to measure flow rate as related to pressure. ? Not require inlet or outlet straight plumbing, or require vertical pipe mounting. ? Have a measuring accuracy of ±2% of full scalewith ±/2% repeatability. ? Be Lake Monitors No. FF– _ _ _– _ _ _– _ _

www.lakemonitors.com
