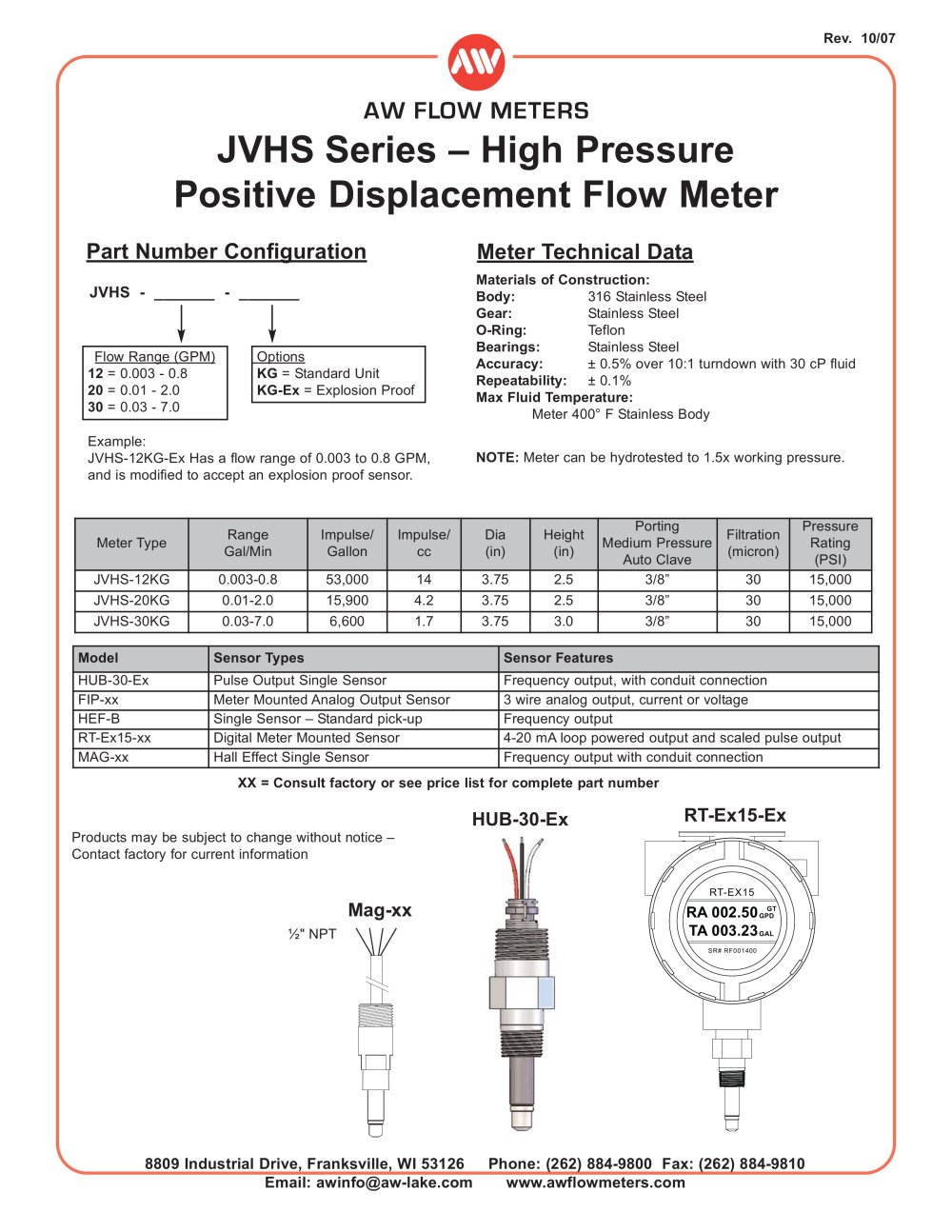

JVHSSeries – High PressurePositive Displacement Industrial flow meter

Part Number Configuration Meter T echnical Dat a

Materials of Construction: Body: 316 Stainless Steel

JVHS - _ - _

Gear: Stainless Steel O-Ring: Teflon Bearings: Stainless Steel Flow Range (GPM) Options Accuracy: ± 0.5% over 10:1 turndown with 30 cPfluid 12 = 0.003 - 0.8 KG = Standard Unit Repeatability: ± 0.1% 20 = 0.01 - 2.0 KG-Ex = Explosion Proof Max Fluid Temperature: 30 = 0.03 - 7.0 Meter 400° F Stainless Body Example:JVHS-12KG-Ex Has a flow range of 0.003 to 0.8 GPM, and is modified to accept an explosion proof sensor. NOTE: Meter can be hydrotested to 1.5x working pressure. Porting Medium PressureAuto Clave PressureRating(PSI) Meter Type RangeGal/Min Impulse/Gallon Impulse/cc Dia(in) Height(in) Filtration(micron) JVHS-12KG 0.003-0.8 53,000 14 3.75 2.5 3/8” 30 15,000 JVHS-20KG 0.01-2.0 15,900 4.2 3.75 2.5 3/8” 30 15,000 JVHS-30KG 0.03-7.0 6,600 1.7 3.75 3.0 3/8” 30 15,000 Model Sensor Types Sensor Features HUB-30-Ex Pulse Output Single Sensor Frequency output, with conduit connection FIP-xx Meter Mounted Analog Output Sensor 3 wire analog output, current or voltage HEF-B Single Sensor – Standard pick-up Frequency output RT-Ex15-xx Digital Meter Mounted Sensor Loop powered, 4-20 mAoutput and scaled pulse output MAG-Px Hall Effect Single Sensor XX = Consult factory or see price list for complete part number Frequency output with conduit connection

HUB-30-Ex RT-Ex15-Ex

RT-EX15

Mag-Px

RA 002.50

GTGPDGAL ½" NPTProducts may be subject to change without notice –Contact factory for current information

TA 003.23

SR# RF001400

8809 Industrial Drive, Franksville, WI 53126 Phone: (262) 884-9800 Fax: (262) 884-9810Email: awinfo@aw-lake.com www.awflowmeters.com
