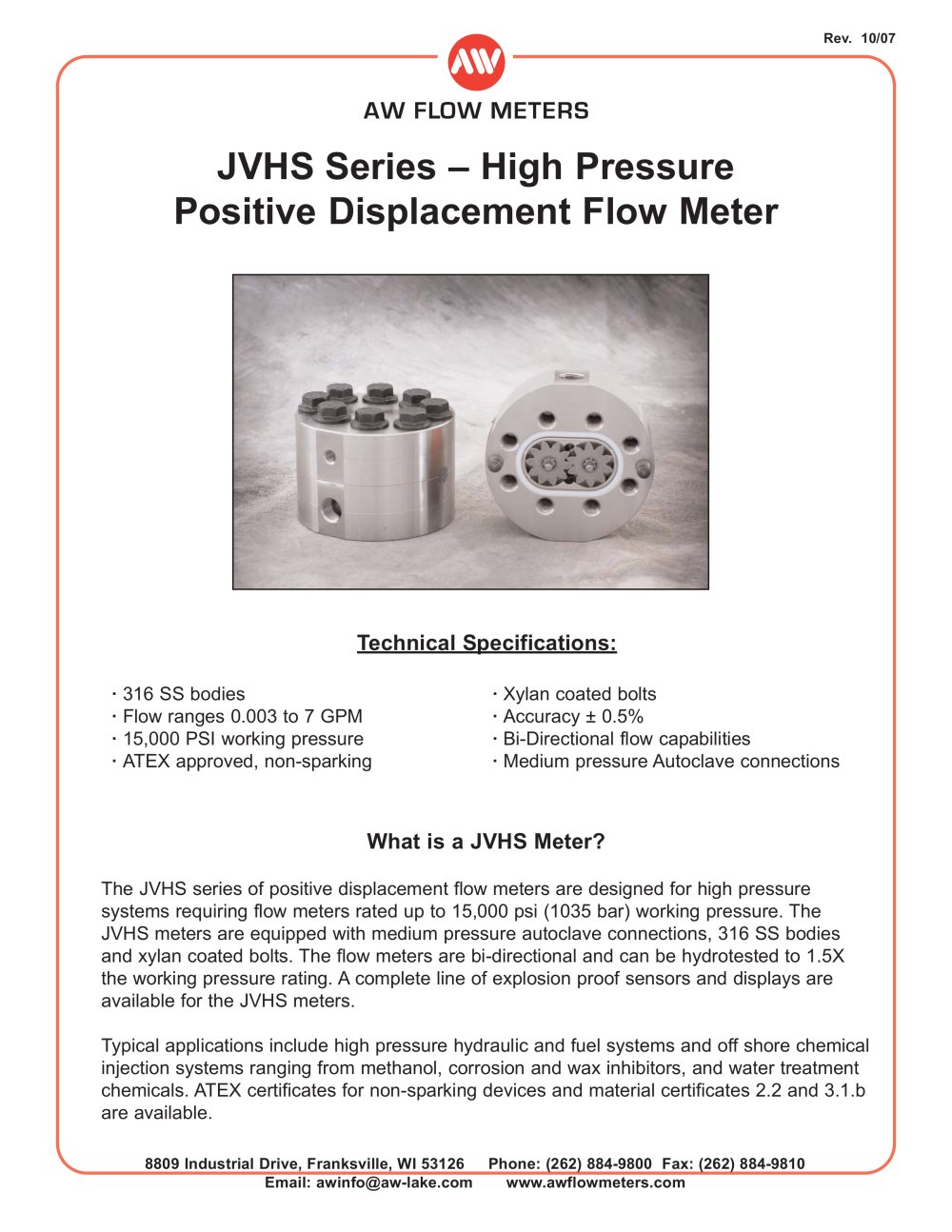

JVHSSeries – High PressurePositive Displacement Flow Meter

T echnical S pecifications:

· 316 SS bodies · Xylan coated bolts · Flow ranges 0.003 to 7 GPM · Accuracy ± 0.5% · 15,000 PSI working pressure · Bi-Directional flow capabilities · ATEX approved, non-sparking · Medium pressure Autoclave manufacturer connections

What is a JVHS Meter?

The JVHS series of positive displacement industrial flow meters are designed for high pressuresystems requiring flow meters rated up to 15,000 psi (1035 bar) working pressure. The JVHS meters are equipped with medium pressure autoclave connections, 316 SS bodies and xylan coated bolts. The flow meters are bi-directional and can be hydrotested to 1.5X the working pressure rating. Acomplete line of explosion proof sensors and displays are available for the JVHS meters. Typical applications include high pressure hydraulic and fuel systems and off shore chemicalinjection systems ranging from methanol, corrosion and wax inhibitors, and water treatment chemicals. ATEX certificates for non-sparking devices and material certificates 2.2 and 3.1.b are available.
