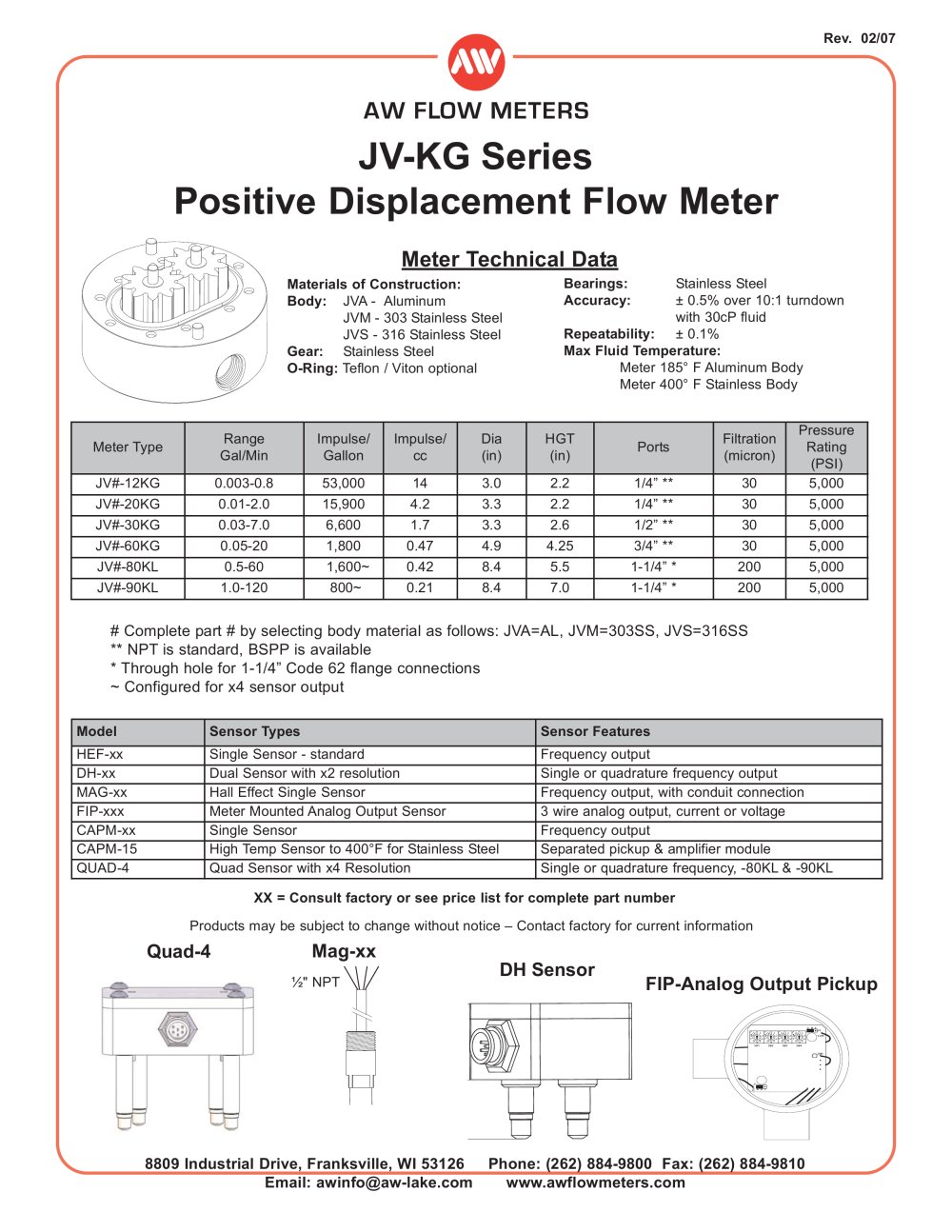

JV-KGSeriesPositive Displacement Flow Meter

Meter T echnical Dat

Bearings manufacturers: Accuracy:

a

Stainless Steel ± 0.5% over 10:1 turndownwith 30cPfluid Materials of Construction:Body: JVA- AluminumJVM- 303Stainless Steel JVS - 316 Stainless Steel Repeatability: ± 0.1% Gear: Stainless Steel Max Fluid Temperature: O-Ring: Teflon / Viton optional Meter 185° F Aluminum Body Meter 400° F Stainless Body PressureRating(PSI) Meter Type RangeGal/Min Impulse/Gallon Impulse/cc Dia(in) HGT(in) Ports Filtration(micron) JV#-12KG 0.003-0.8 53,000 14 3.0 2.2 1/4” ** 30 5,000 JV#-20KG 0.01-2.0 15,900 4.2 3.3 2.2 1/4” ** 30 5,000 JV#-30KG 0.03-7.0 6,600 1.7 3.3 2.6 1/2” ** 30 5,000 JV#-60KG 0.05-20 1,800 0.47 4.9 4.25 3/4” ** 30 5,000 JV#-80KL 0.5-60 1,600~ 0.42 8.4 5.5 1-1/4” * 200 5,000 JV#-90KL 1.0-120 800~ 0.21 8.4 7.0 1-1/4” * 200 5,000

# Complete part # by selecting body material as follows: JVA=AL, JVM=303SS, JVS=316SS** NPTis standard, BSPPis available * Through hole for 1-1/4” Code 62 flange connections ~ Configured for x4 suppliers of sensor output

Model Sensor Types Sensor Features HEF-xx Single Sensor - standard Frequency output DH-xx Dual Sensor with x2 resolution Single or quadrature frequency output MAG-xx Hall Effect Single Sensor Frequency output, with conduit connection FIP-xxx Meter Mounted Analog Output Sensor 3 wire analog output, current or voltage CAPM-xx Single Sensor XX = Consult factory or see price list for complete part number Frequency output CAPM-15 High Temp Sensor to 400°F for Stainless Steel Separated pickup & amplifier module QUAD-4 Quad Sensor with x4 Resolution Single or quadrature frequency, -80KL& -90KL Products may be subject to change without notice – Contact factory for current information

Quad-4Mag-xxDHSensorFIP-Analog Output Pickup

½" NPT
