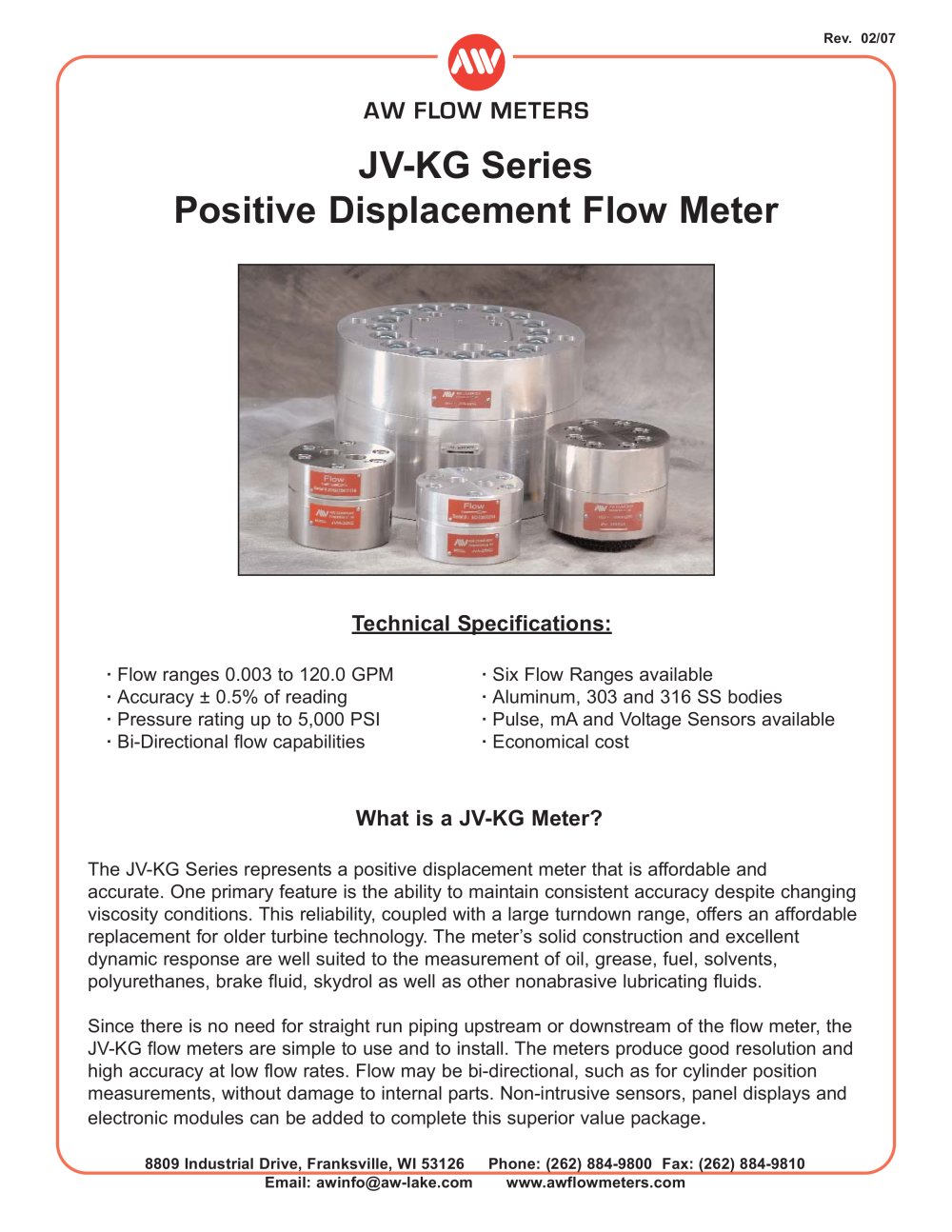

JV-KGSeriesPositive Displacement Flow Meter

T echnical S pecifications:

· Flow ranges 0.003 to 120.0 GPM · Six Flow Ranges available · Accuracy ± 0.5% of reading · Aluminum, 303 and 316 SS bodies · Pressure rating up to 5,000 PSI · Pulse, mAand Voltage sensors available · Bi-Directional flow capabilities · Economical cost

What is a JV-KG Meter?

The JV-KG Series represents a positive displacement meter that is affordable and accurate. One primary feature is the ability to maintain consistent accuracy despite changing viscosity conditions. This reliability, coupled with a large turndown range, offers an affordable replacement for older turbine technology. The meter’s solid construction and excellent dynamic response are well suited to the measurement of oil, grease, fuel, solvents, polyurethanes, brake fluid, skydrol as well as other nonabrasive lubricating fluids. Since there is no need for straight run piping upstream or downstream of the flow meter, theJV-KG industrial flow meters are simple to use and to install. The meters produce good resolution and high accuracy at low flow rates. Flow may be bi-directional, such as for cylinder position measurements, without damage to internal parts. Non-intrusive sensors,panel displays and electronic modules can be added to complete this superior value package

.

8809 Industrial Drive, Franksville, WI 53126 Phone: (262) 884-9800 Fax: (262) 884-9810Email: awinfo@aw-lake.com www.awflowmeters.com
