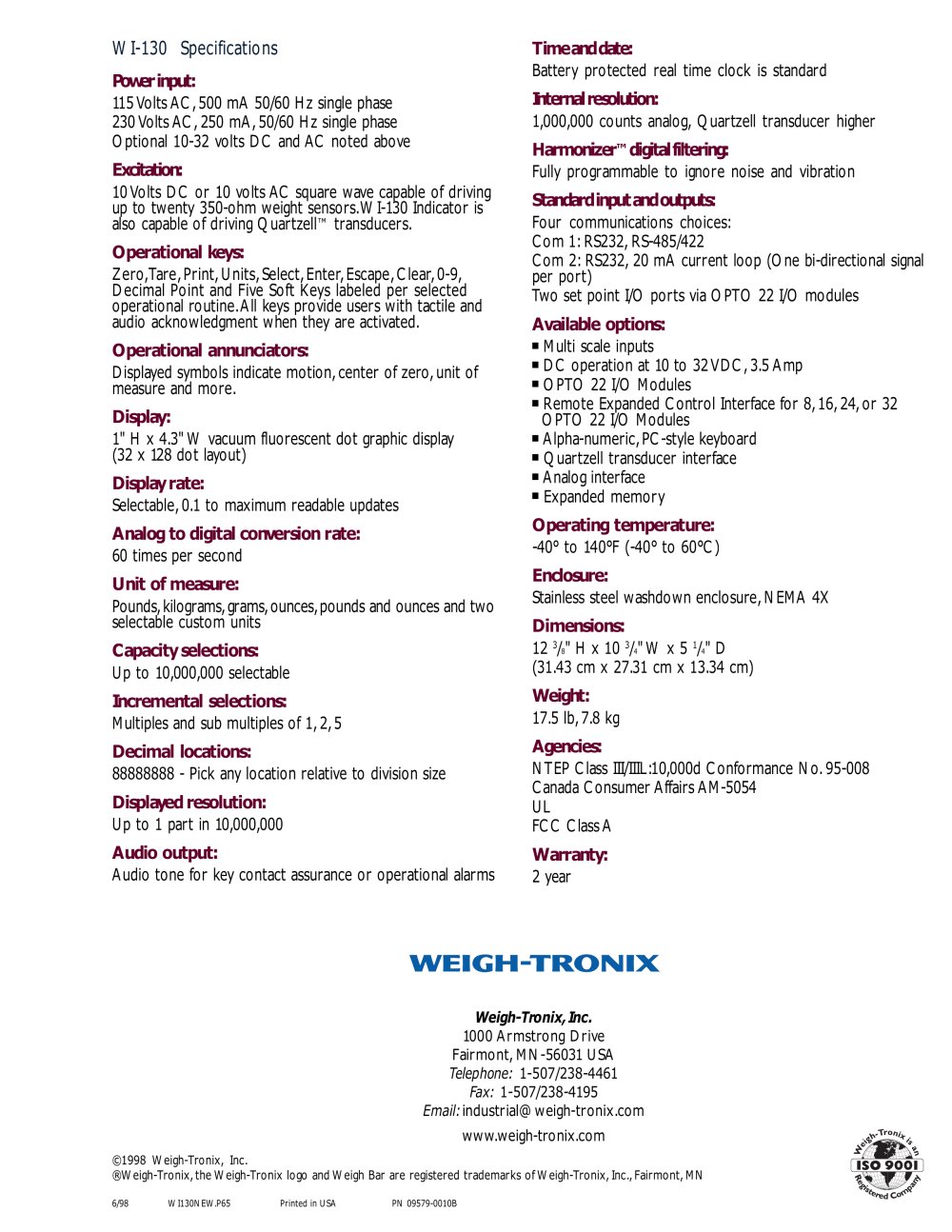

| WI-130 Specifications Power input: 115 Volts AC, 500 mA 50/60 Hz snge phase 230 VoltsAC, 250 mA, 50/60 Hz snge phase Optional 10-32 volts DC and AC noted above Excitation: 10 Volts DC or 10 volts AC square wave capable of driving up to twenty 350-ohm weight sensors. WI-130 Indicator is also capable of driving Quartzell™ transducers. Operational keys: Zero, Tare, Print, Units, Select, Enter, Escape, Clear, 0-9, Decimal Point and Five Soft Keys labeled per selected operational routine. All keys provide users with tactile and audio acknowledgment when they are activated. Operational annunciators: Displayed symbols indicate motion, center of zero, unit of measure and more. Display: 1" H x 4.3" W vacuum fluorescent dot graphic display (32 x 128 dot layout) Display rate: Selectable, 0.1 to maximum readable updates Analog to digital conversion rate: 60 times per second Unit of measure: Pounds, kilograms, crams, ounces, pounds and ounces and two selectable custom units Capacity selections: Up to 10,000,000 selectable Incremental selections: Multiples and sub multiples of 1, 2, 5 Decimal locations: 88888888 - Pick any location relative to division size Displayed resolution: Up to 1 part in 10,000,000 Audio output: Audio tone for key contact assurance or operational alarms | |||||||||
| Time and date: Battery protected real time clock is standard Internal resolution: 1,000,000 counts analog, Quartzell transducer higher Harmonizer™ digital filtering: Fully programmable to ignore noise and vibration Standard input and outputs: Four communications choices: Com 1: RS232, RS-485/422 Com 2: RS232, 20 mA current loop (One bi-directional signal per port) Two set point I/O ports via OPTO 22 I/O modules Available options: ■ Multi scale inputs ■ DC operation at 10 to 32 VDC, 3.5 Amp ■ OPTO 22 I/O Modules ■ Remote Expanded Control Interface for 8, 16, 24, or 32 OPTO 22 I/O Modules ■ Alpha-numeric, PC-style keyboard ■ Quartzell transducer interface ■ Analog interface ■ Expanded memory Operating temperature: -40° to 1401= (-40° to 60°C) Enclosure: Stainless steel washdown enclosure, N EMA 4X Dimensions: 12 3/8" H x 10 3/4"W x 5 V/' D (31.43 cm x 27.31 cm x 13.34 cm) Weight: 17.5 lb, 7.8 kg Agencies: NTEP Class III/IIII_10,000d Conformance No. 95-008 Canada Consumer Affairs AM-5054 UI FCC Class A W arranty: 2 year | |||||||||
| WEIGH-TRONIX | |||||||||
| Weicfr-Tronix, Inc. 1000 Armstrong Drive Fairmont, MN-56031 USA Telephone: 1-507/238-4461 Fax 1-507/238-4195 Email: industrial@weigh-tronix.com www.weigh-tronix.com ©1998 WeicgvTronix, Inc. ®Weicg>Tronix, the Weicgi-Trorix logo and Weigh Bar are regstered trademarks of Weigh-Tronix, Inc., Fairmont, MN 6/98 WI130NEW.F65 Printed in USA PN 09579-0010B | |||||||||
