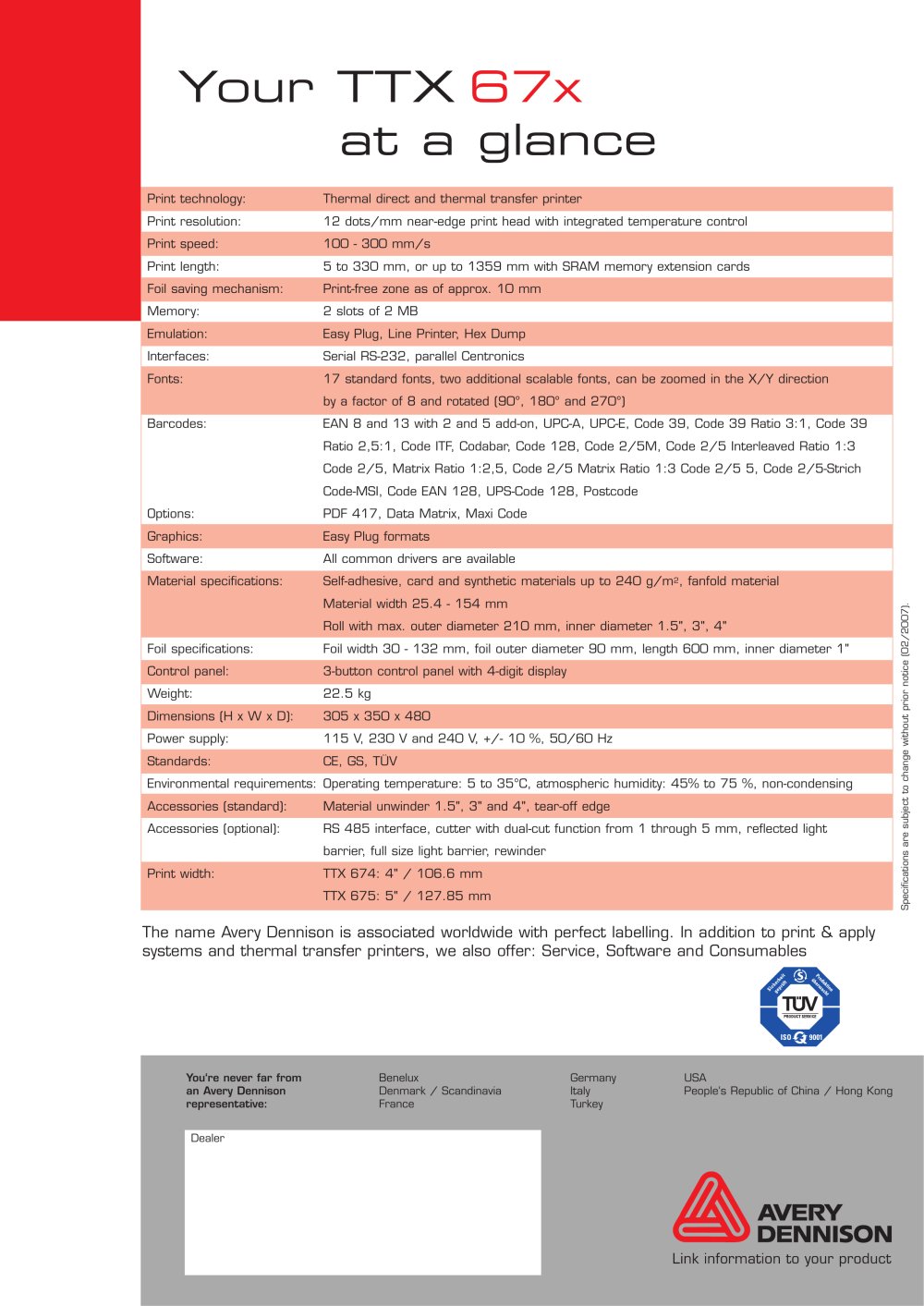

Your TTX67x at a glance

Print technology: Thermal direct and thermal transfer printerPrint resolution: 12 dots/mm near-edge print head with integrated temperature control Print speed: 100 - 300 mm/s Print length: 5 to 330 mm, or up to 1359 mm with SRAM memory extension cards Foil saving mechanism: Print-free zone as of approx. 10 mm Memory: 2 slots of 2 MB Emulation: Easy Plug, Line Printer, Hex Dump Interfaces: Serial RS-232, parallel Centronics Fonts: 17 standard fonts, two additional scalable fonts, can be zoomed in the X/Y direction by a factor of 8 and rotated (90°, 180° and 270°) Barcodes: EAN 8 and 13 with 2 and 5 add-on, UPC-A, UPC-E, Code 39, Code 39 Ratio 3:1, Code 39 Ratio 2,5:1, Code ITF, Codabar, Code 128, Code 2/5M, Code 2/5 Interleaved Ratio 1:3 Code 2/5, Matrix Ratio 1:2,5, Code 2/5 Matrix Ratio 1:3 Code 2/5 5, Code 2/5-Strich Code-MSI, Code EAN 128, UPS-Code 128, Postcode Options: PDF 417, Data Matrix, Maxi Code Graphics: Easy Plug formats Software: All common drivers are available Material specifications: Self-adhesive, card and synthetic materials up to 240 g/m

2

, fanfold material Material width 25.4 - 154 mm Roll with max. outer diameter 210 mm, inner diameter 1.5", 3", 4" Foil specifications: Foil width 30 - 132 mm, foil outer diameter 90 mm, length 600 mm, inner diameter 1" Control panel: 3-button control panel with 4-digit display Weight: 22.5 kg Dimensions (H x W x D): 305 x 350 x 480 Power supply: 115 V, 230 V and 240 V, +/- 10 %, 50/60 Hz Standards: CE, GS, TÜV Environmental requirements: Operating temperature: 5 to 35°C, atmospheric humidity: 45% to 75 %, non-condensing Accessories (standard): Material unwinder 1.5", 3" and 4", tear-off edge Accessories (optional): RS 485 interface, cutter with dual-cut function from 1 through 5 mm, reflected light barrier, full size light barrier, rewinder Print width: TTX 674: 4" / 106.6 mm TTX 675: 5" / 127.85 mm

Specifications are subject to change without prior notice (02/2007).
