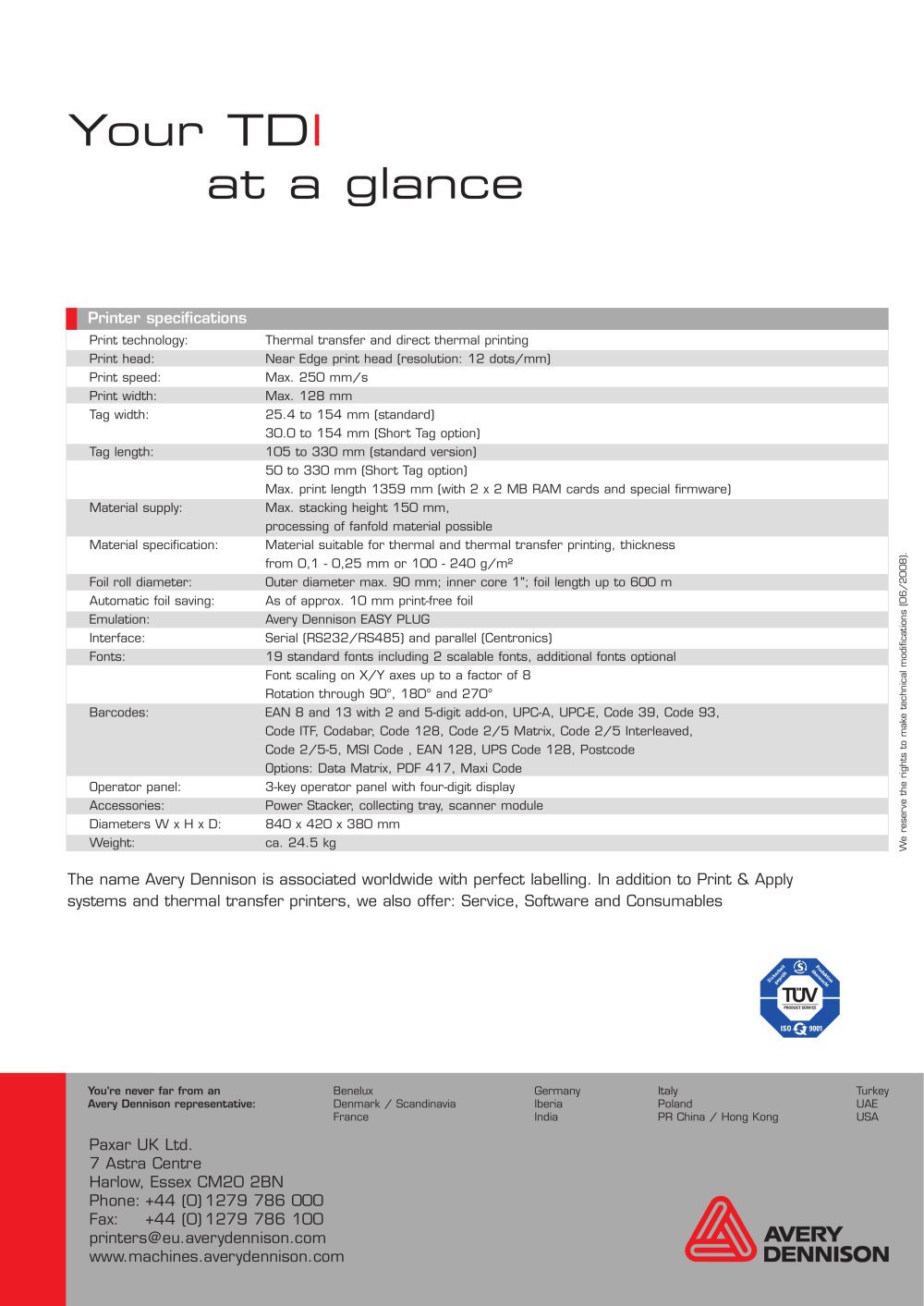

Your TDI
at a glance
Printer specifications
Print technology:
Thermal transfer and direct thermal printing
Print head:
Near Edge print head (resolution: 12 dots/mm)
Print speed:
Max. 250 mm/s
Print width:
Max. 128 mm
Tag width:
25.4 to 154 mm (standard)
30.0 to 154 mm (Short Tag option)
Tag length:
105 to 330 mm (standard version)
50 to 330 mm (Short Tag option)
Max. print length 1359 mm (with 2 x 2 MB RAM cards and special firmware)
Material supply:
Max. stacking height 150 mm, processing of fanfold material possible
Material specification:
Material suitable for thermal and thermal transfer printing, thickness from 0,1 - 0,25 mm or 100 - 240 g/m2
Foil roll diameter:
Outer diameter max. 90 mm; inner core 1"; foil length up to 600 m
Automatic foil saving:
As of approx. 10 mm print-free foil
Emulation:
Avery Dennison EASY PLUG
Interface:
Serial (RS232/RS485) and parallel (Centronics)
Fonts:
19 standard fonts including 2 scalable fonts, additional fonts optional
Font scaling on X/Y axes up to a factor of 8
Rotation through 90°, 180° and 270°
Barcodes:
EAN 8 and 13 with 2 and 5-digit add-on, UPC-A, UPC-E, Code 39, Code 93,
Code ITF, Codabar, Code 128, Code 2/5 Matrix, Code 2/5 Interleaved, Code 2/5-5, MSI Code , EAN 128, UPS Code 128, Postcode
Options: Data Matrix, PDF 417, Maxi Code
Operator panel:
3-key operator panel with four-digit display
Accessories:
Power Stacker, collecting tray, scanner module
Diameters W x H x D:
840 x 420 x 380 mm
Weight:
ca. 24.5 kg
The name Avery Dennison is associated worldwide with perfect labelling. In addition to Print & Apply systems and thermal transfer printers, we also offer: Service, Software and Consumables
You're never far from an Benelux
Avery Dennison representative: Denmark / Scandinavia
France
Paxar UK Ltd.
7 Astra Centre
Harlow, Essex CM20 2BN
Phone: +44 (0) 1279 786 000
Fax: +44 (0) 1279 786 100
printers@eu.averydennison.com
www.machines.averydennison.com
Germany Italy Turkey
Iberia Poland UAE
India PR China / Hong Kong USA
