... increased productivity is all around.

Whatever application you wish to use it for -the Monarch® Pathfinder® Ultra® Platinum 6039™ will make your day's work so much easier.

Would you like comprehensive advice, on-site service, and support in implementing your Avery Dennison devices? Just give use a call and we'll be right there for you.

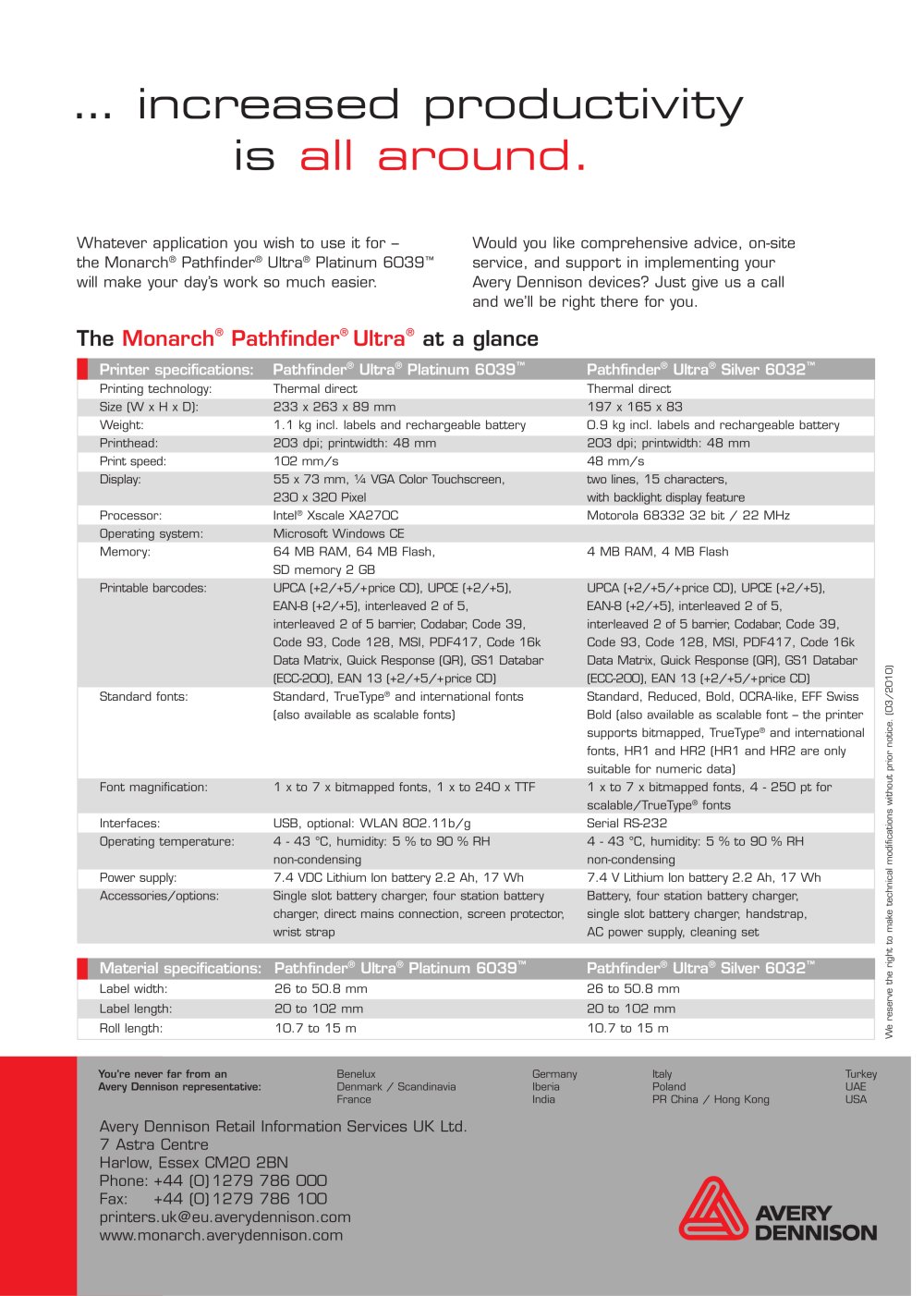

The Monarch® Pathfinder® Ultra® at a glance


Printer specifications:	Pathfinder® Ultra® Platinum 6039™	Pathfinder® Ultra® Silver 6032™
Printing technology:	Thermal direct	Thermal direct
Size (W x H x D):	233 x 263 x 89 mm	233 x 263 x 89 mm
Weight:	1.1 kg incl. labels and rechargeable battery	0.9 kg incl. labels and rechargeable battery
Printhead:	203 dpi; printwidth: 48 mm	203 dpi; printwidth: 50.8 mm
Print speed:	102 mm/s	48 mm/s
Display:	55 x 73 mm, % VGA Color Touchscreen,	two lines, 15 characters,
	230 x 320 Pixel	with backlight display feature
Processor:	Intel® Xscale XA270C	Motorola 68332 32 bit / 22 MHz
Operating system:	Microsoft Windows CE
Memory:	32 MB RAM, 64 MB Flash, optional: SD Memory Card 256 MB, 512 MB or higher	1 MB RAM, 2 MB Flash
Printable barcodes:	UPCA (+2/+5/+price CD), UPCE (+2/+5), EAN-8	UPCA (+2/+5), UPCE (+2/+5), EAN-8 (+2/+5),
	(+2/+5/+price CD), 12 of 5, 12 of 5 Barrier, Codabar,	EAN-13 (+2/+5), Interleaved 2 of 5, Codabar
	Code 39, Code 93, Code 128, MSI, PDF417,	Code 39, Code 93, Code 128, MSI
	Code 16k, Data Matrix, Quick Response (QR)
Standard fonts:	Standard, TrueType® and international fonts	Standard, Reduced, Bold, OCRA-like, EFF Swiss
	(also available as scalable fonts)	Bold (also available as scalable font - the printer supports bitmapped, TrueType® and international fonts, HR1 and HR2 (HR1 and HR2 are only suitable for numeric data)
Font magnification:	1 x to 7 x bitmapped fonts, 1 x to 240 x TTF	1 x to 7 x bitmapped fonts, 4 - 250 pt for scalable/TrueType^® fonts
Interfaces:	USB, optional: WLAN 802.11b/g or Bluetooth	Serial RS-232
Operating temperature:	4 - 43 °C, humidity: 5 % to 90 % RH	4 - 43 °C, humidity: 5 % to 90 % RH
	non-condensing	non-condensing
Power supply:	7.4 VDC Lithium Ion battery 2.2 Ah, 17 Wh	7.4 V Lithium Ion battery 2.2 Ah, 17 Wh
Accessories/options:	Single slot battery charger, four station battery	Battery, four station battery charger,
	charger, direct mains connection, screen protector,	single slot battery charger, handstrap,
	wrist strap	AC power supply, cleaning set

□ □ cu

c g

to u

□ E

y c

-C

CU CO

E a

_c c_


Material specifications:	Pathfinder^® Ultra^® Platinum 6039^™	Pathfinder^® Ultra^® Silver 6032^™
Label width:	26 to 50.8 mm	26 to 50.8 mm
Label length:	20 to 102 mm	20 to 102 mm
Roll length:	10.7 to 15 m	10.7 to 15 m
You're never far from an Avery Dennison representative:	Benelux Denmark / Scandinavia	Iberia Poland India PR China / Hong Kong	UAE UK

France Germany

Italy

Turkey

USA

Avery Dennison Deutschland GmbH Ohmstrasse 3, D-85386 Eching Phone: +49/(0) 81 65/925 - 299 Fax: +49/(0) 81 65/6 43 60 printers@eu.averydennison.com www.machines.averydennison.com
