Label creation software

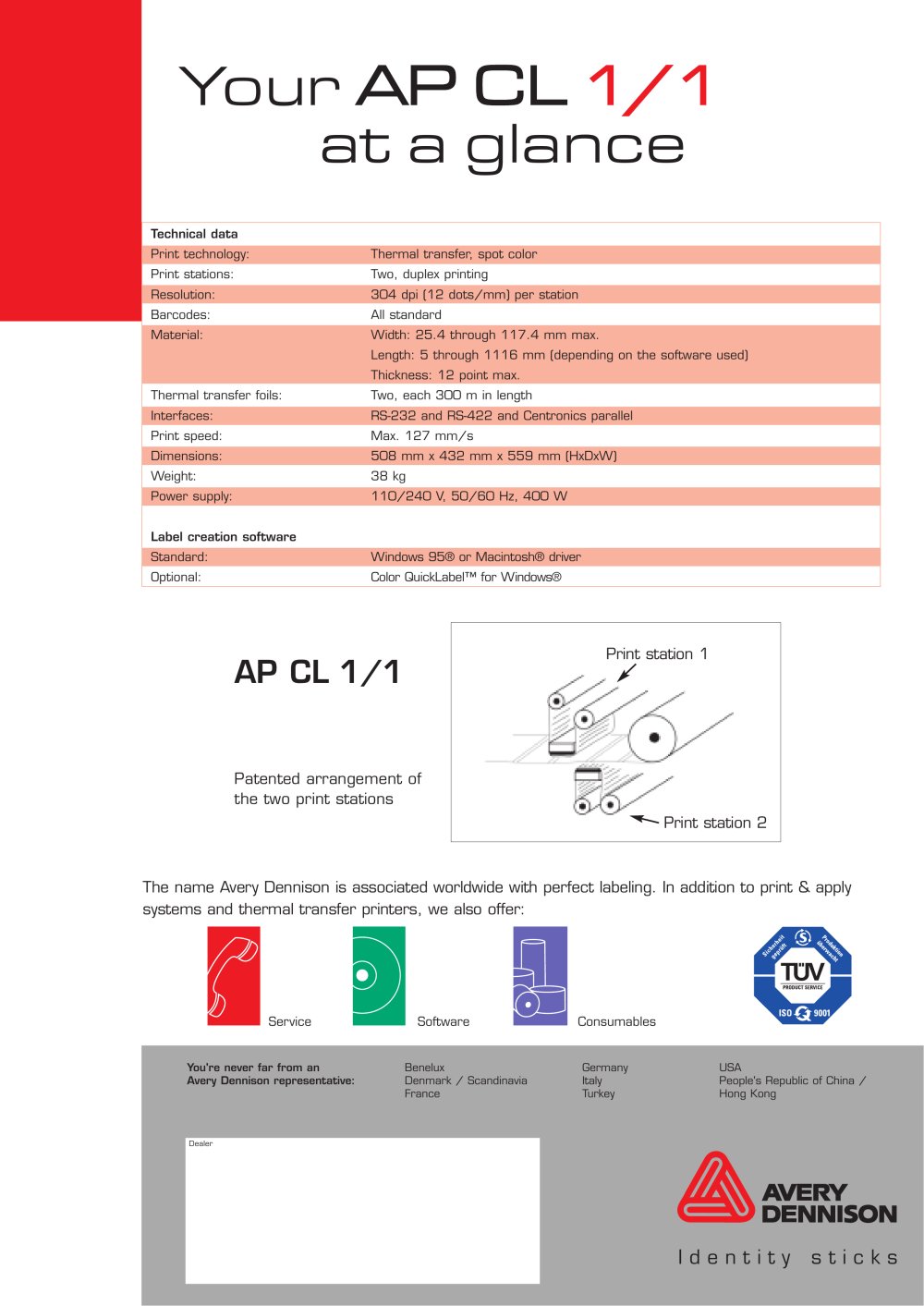

AP CL 1/1 - 5861 Your AP CL1/1

Standard:Windows 95® or Macintosh® driverOptional:Color QuickLabel™ for Windows®

at a glance

Technical data Print technology:Thermal transfer, spot color Print stations:Two, duplex printing Resolution:304 dpi (12 dots/mm) per station Barcodes:All standard Material:Width: 25.4 through 117.4 mm max.Length: 5 through 1116 mm (depending on the software used) Thickness: 12 point max.Thermal transfer foils:Two, each 300 m in length Interfaces:RS-232 and RS-422 and Centronics parallel Print speed:Max. 127 mm/s Dimensions:508 mm x 432 mm x 559 mm (HxDxW) Weight:38 kg Power supply:110/240 V, 50/60 Hz, 400 W

Print station 1

AP CL1/1

Patented arrangement ofthe two print stations Print station 2 The name Avery Dennison is associated worldwide with perfect labeling. In addition to print & applysystems and thermal transfer printers, we also offer:

ServiceSoftwareConsumables
You're never far from an Avery Dennison representative: BeneluxDenmark / Scandinavia FranceUSAPeople's Republic of China / Hong KongGermanyItaly Turkey Dealer

Identity sticks
