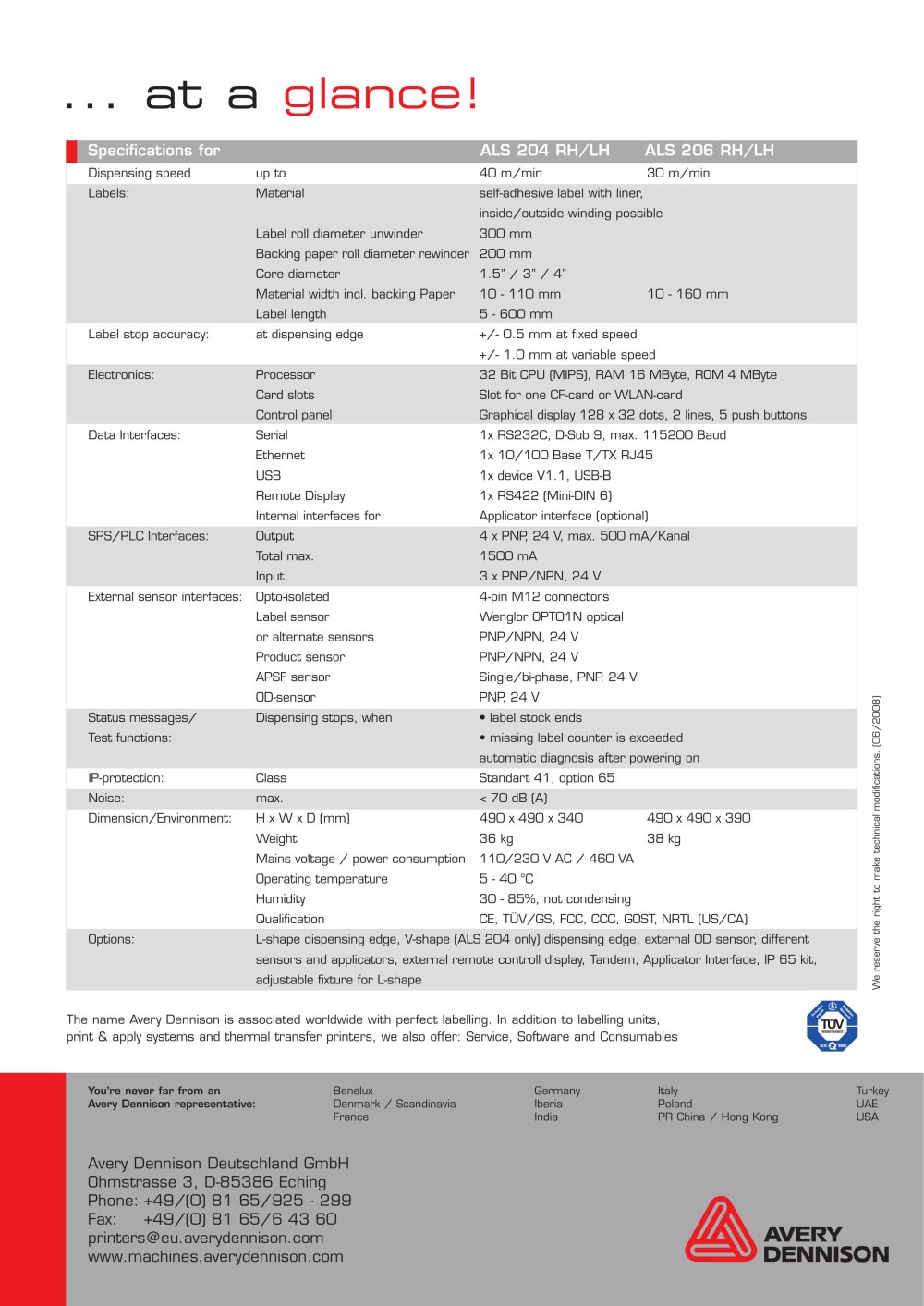

... at a glance!


Specifications for		ALS 204 RH/LH ALS 206 RH/LH
Dispensing speed	up to	40 m/min 30 m/min
Labels:	Material	self-adhesive label with liner, inside/outside winding possible
	Label roll diameter unwinder	300 mm
	Backing paper roll diameter rewinder	200 mm
	Core diameter	1.5" / 3" / 4"
	Material width incl. backing Paper	10 - 110 mm 10 - 160 mm
	Label length	5 - 600 mm
Label stop accuracy:	at dispensing edge	+/- 0.5 mm at fixed speed +/- 1.0 mm at variable speed
Electronics:	Processor	32 Bit CPU (MIPS), RAM 16 MByte, ROM 4 MByte
	Card slots	Slot for one CF-card or WLAN-card
	Control panel	Graphical display 128 x 32 dots, 2 lines, 5 push buttons
Data Interfaces:	Serial	1x RS232C, D-Sub 9, max. 115200 Baud
	Ethernet	1x 10/100 Base T/TX RJ45
	USB	1x device V1.1, USB-B
	Remote Display	1x RS422 (Mini-DIN 6)
	Internal interfaces for	Applicator interface (optional)
SPS/PLC Interfaces:	Output	4 x PNP 24 V, max. 500 mA/Kanal
	Total max.	1500 mA
	Input	3 x PNP/NPN, 24 V
External sensor interfaces:	Opto-isolated	4-pin M12 connectors
	Label sensor	Wenglor OPT01N optical
	or alternate sensors	PNP/NPN, 24 V
	Product sensor	PNP/NPN, 24 V
	APSF sensor	Single/bi-phase, PNP, 24 V
	OD-sensor	PNP, 24 V
Status messages/	Dispensing stops, when	• label stock ends
Test functions:		• missing label counter is exceeded automatic diagnosis after powering on
IP-protection:	Class	Standart 41, option 65
Noise:	max.	< 70 dB (A)
Dimension/Environment:	H x W x D (mm)	490 x 490 x 340 490 x 490 x 390
	Weight	36 kg 38 kg
	Mains voltage / power consumption	110/230 V AC / 460 VA
	Operating temperature	5 - 40 °C
	Humidity	30 - 85%, not condensing
	Qualification	CE, TÜV/GS, FCC, CCC, GOST, NRTL (US/CA)

□ □ cu \

CD □

c g

to y

□ E

y c sz a cu

D CD

Options:

L-shape dispensing edge, V-shape (ALS 204 only) dispensing edge, external OD sensor, different sensors and applicators, external remote controll display, Tandem, Applicator Interface, IP 65 kit, adjustable fixture for L-shape

■J] u

The name Avery Dennison is associated worldwide with perfect labelling. In addition to labelling units, print & apply systems and thermal transfer printers, we also offer: Service, Software and Consumables

You're never far from an Benelux Germany Italy Turkey

Avery Dennison representative: Denmark / Scandinavia Iberia Poland UAE

France India PR China / Hong Kong USA

Avery Dennison Deutschland GmbH Ohmstrasse 3, D-85386 Eching Phone: +49/(0) 81 65/925 - 299 Fax: +49/(0) 81 65/6 43 60 printers@eu.averydennison.com www.machines.averydennison.com
