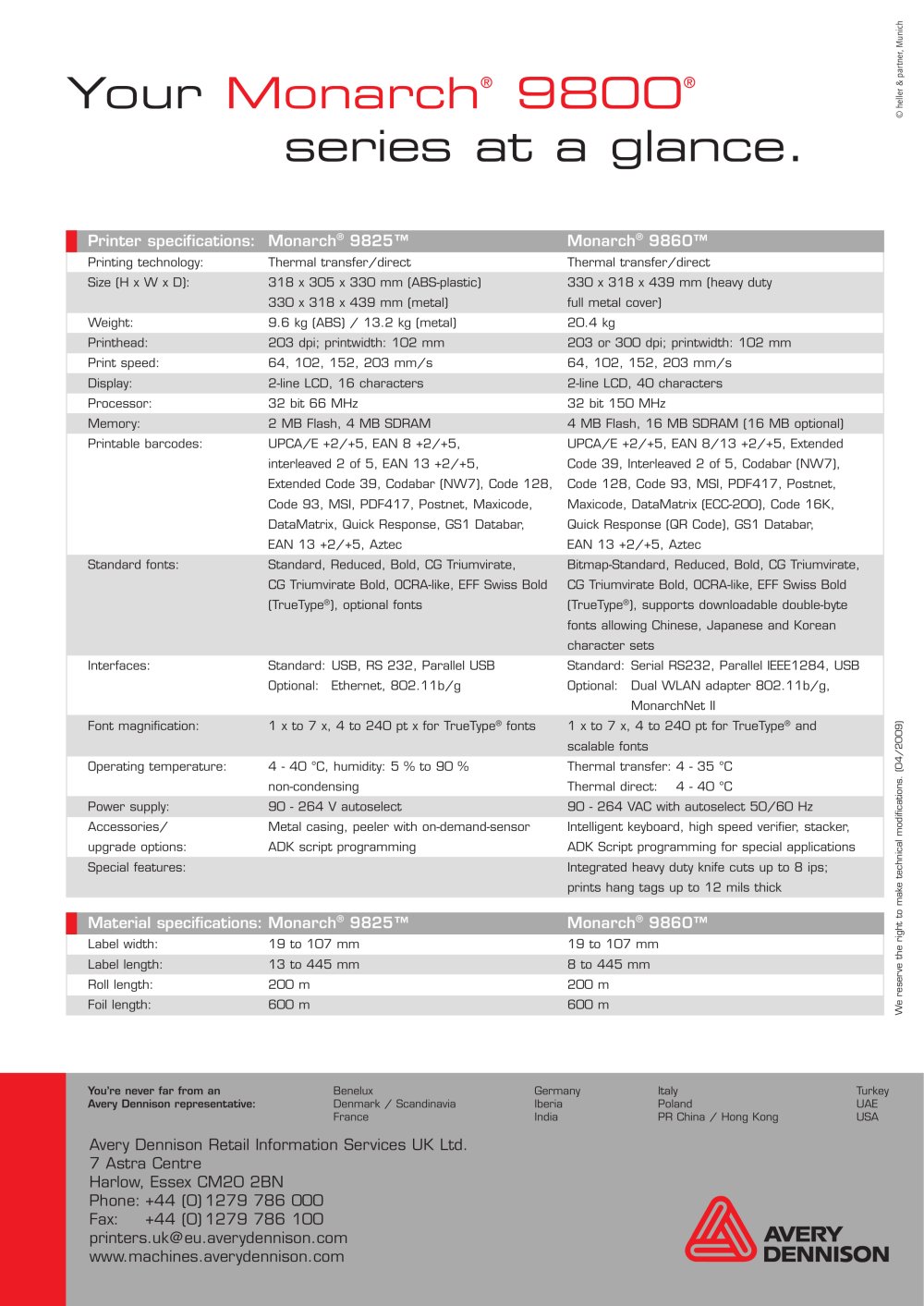

Your Monarch® 9800®

séries at a glance.

Mnnani-h® QQPRTM

Mnnani-h® QRRO™


Printing technology:	Monarch 9825™ Thermal transfer/direct	Thermal transfer/direct
Size (HxWx □):	318 x 305 x 330 mm (ABS-plastic)	330 x 318 x 439 mm (heavy duty
	330 x 318 x 439 mm (métal)	full métal cover)
Weight:	9.6 kg (ABS) / 13.2 kg (métal)	20.4 kg
Printhead:	203 dpi; printwidth: 102 mm	203 or 300 dpi; printwidth: 102 mm
Print speed:	64, 102, 152, 203 mm/s	64, 102, 152, 203 mm/s
□isplay:	2-line LCD, 16 characters	2-line LCD, 40 characters
Processor:	32 bit 66 MHz	32 bit 150 MHz
Memory:	2 MB Flash, 4 MB SDRAM	4 MB Flash, 16 MB SDRAM (16 MB optional)
Printable barcodes:	UPCA/E +2/+5, EAN 8 +2/+5,	UPCA/E +2/+5, EAN 8/13 +2/+5, Extended
	interleaved 2 of 5, EAN 13 +2/+5,	Code 39, Interleaved 2 of 5, Codabar (NW7),
	Extended Code 39, Codabar (NW7), Code 128,	Code 128, Code 93, MSI, PDF417, Postnet,
	Code 93, MSI, PDF417, Postnet, Maxicode,	Maxicode, DataMatrix (ECC-200), Code 16K,
	DataMatrix, Quick Response, GS1 Databar,	Quick Response (QR Code), GS1 Databar,
	EAN 13 +2/+5, Aztec	EAN 13 +2/+5, Aztec
Standard fonts:	Standard, Reduced, Bold, CG Triumvirate,	Bitmap-Standard, Reduced, Bold, CG Triumvirate,
	CG Triumvirate Bold, OCRA-like, EFF Swiss Bold	CG Triumvirate Bold, OCRA-like, EFF Swiss Bold
	(TrueType®), optional fonts	(TrueType®), supports downloadable double-byte fonts allowing Chinese, Japanese and Korean character sets
Interfaces:	Standard: USB, RS 232, Parallel USB	Standard: Sériai RS232, Parallel IEEE1284, USB
	Optional: Ethernet, 802.11b/g	Optional: Dual WLAN adapter 802.11b/g, MonarchNet II
Font magnification:	1 x to 7 x, 4 to 240 pt x for TrueType® fonts	1 x to 7 x, 4 to 240 pt for TrueType® and scalable fonts
Operating température:	4 - 40 °C, humidity: 5 % to 90 %	Thermal transfer: 4 - 35 °C
	non-condensing	Thermal direct: 4 - 40 °C
Power supply:	90 - 264 V autoselect	90 - 264 VAC with autoselect 50/60 Hz
Accessories/	Métal casing, peeler with on-demand-sensor	Intelligent keyboard, high speed vérifier, Stacker,
upgrade options:	ADK script programming	ADK Script programming for spécial applications
Spécial features:		Integrated heavy duty knife cuts up to 8 ips; prints hang tags up to 12 mils thick

Material spécifications: Monarch® 9825™		Monarch® 9860™
Label width:	19 to 107 mm	19 to 107 mm
Label length:	13 to 445 mm	8 to 445 mm
Roll length:	200 m	200 m
Foil length:	600 m	600 m
