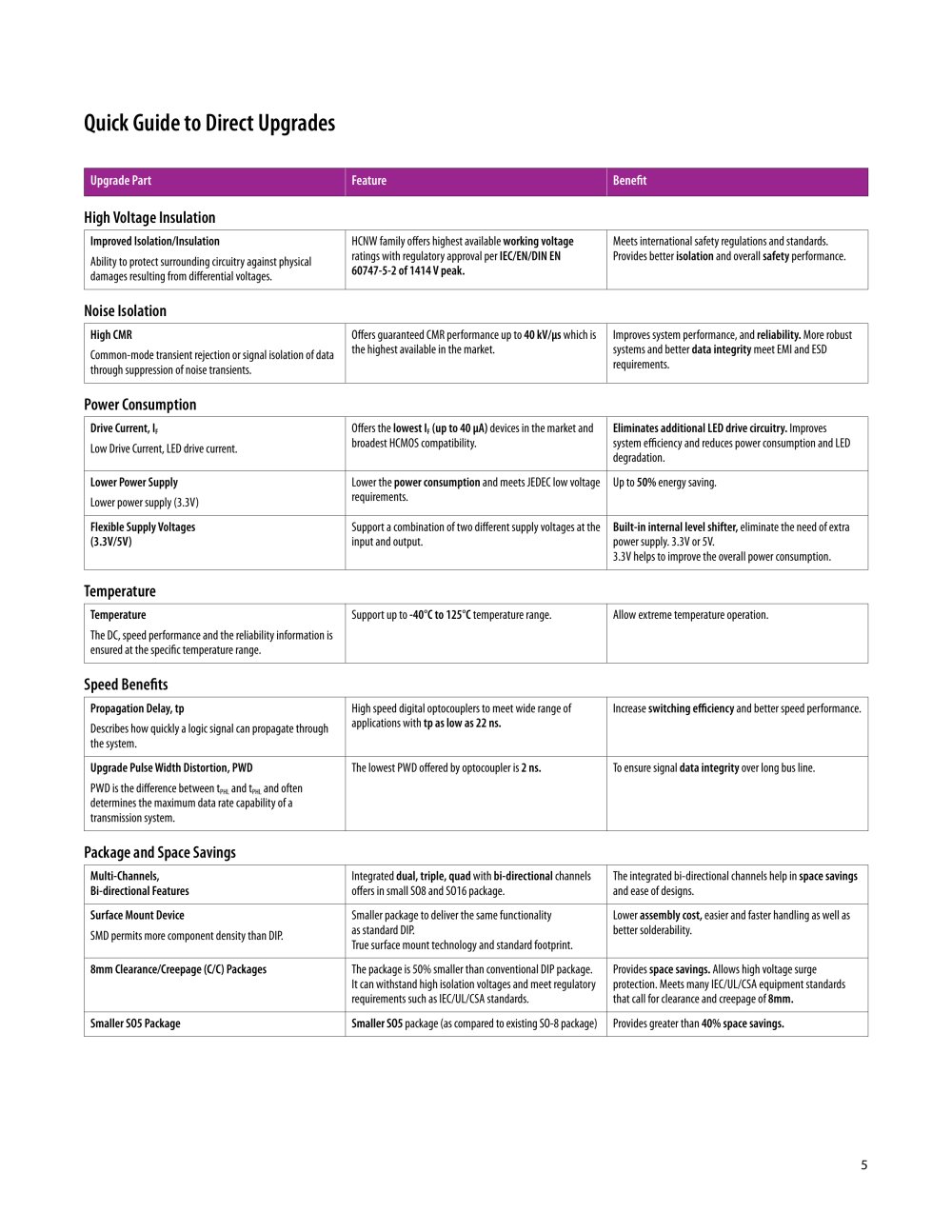

Quick Guide to Direct Upgrades
High Voltage Insulation
Improved Isolation/Insulation
Ability to protect surrounding circuitry against physical damages resulting from differential voltages.
HCNW family offers highest available working voltage ratings with regulatory approval per IEC/EN/DIN EN 60747-5-2 of 1414 V peak.
Meets international safety regulations and standards. Provides better isolation and overall safety performance.
Noise Isolation
High CMR
Common-mode transient rejection or signal isolation of data through suppression of noise transients.
Offers guaranteed CMR performance up to 40 kV/ps which is the highest available in the market.
Improves system performance, and reliability. More robust systems and better data integrity meet EMI and ESD requirements.
Power Consumption
Drive Current, IF
Low Drive Current, LED drive current.
Offers the lowest IF (up to 40 pA) devices in the market and broadest HCMOS compatibility.
Eliminates additional LED drive circuitry. Improves system efficiency and reduces power consumption and LED degradation.
Lower Power Supply
Lower power supply (3.3V)
Lower the power consumption and meets JEDEC low voltage requirements.
Up to 50% energy saving.
Flexible Supply Voltages (3.3V/5V)
Support a combination of two different supply voltages at the input and output.
Built-in internal level shifter, eliminate the need of extra power supply. 3.3V or 5V.
3.3V helps to improve the overall power consumption.
Temperature
Temperature
The DC, speed performance and the reliability information is ensured at the specific temperature range.
Support up to -40°C to 125°C temperature range.
Allow extreme temperature operation.
Speed Benefits
Propagation Delay, tp
Describes how quickly a logic signal can propagate through the system.
High speed digital optocouplers to meet wide range of applications with tp as low as 22 ns.
Increase switching efficiency and better speed performance.
Upgrade Pulse Width Distortion, PWD
PWD is the difference between tPHL and tPHL and often determines the maximum data rate capability of a transmission system.
The lowest PWD offered by optocoupler is 2 ns.
To ensure signal data integrity over long bus line.
Package and Space Savings
Multi-Channels, Bi-directional Features
Integrated dual, triple, quad with bi-directional channels offers in small SO8 and SO16 package.
The integrated bi-directional channels help in space savings and ease of designs.
Surface Mount Device
SMD permits more component density than DIP.
Smaller package to deliver the same functionality as standard DIP.
True surface mount technology and standard footprint.
Lower assembly cost, easier and faster handling as well as better solderability.
8mm Clearance/Creepage (C/C) Packages
The package is 50% smaller than conventional DIP package. It can withstand high isolation voltages and meet regulatory requirements such as IEC/UL/CSA standards.
Provides space savings. Allows high voltage surge protection. Meets many IEC/UL/CSA equipment standards that call for clearance and creepage of 8mm.
Smaller SO5 Package Smaller SO5 package (as compared to existing SO-8 package) Provides greater than 40% space savings.
