Untitled

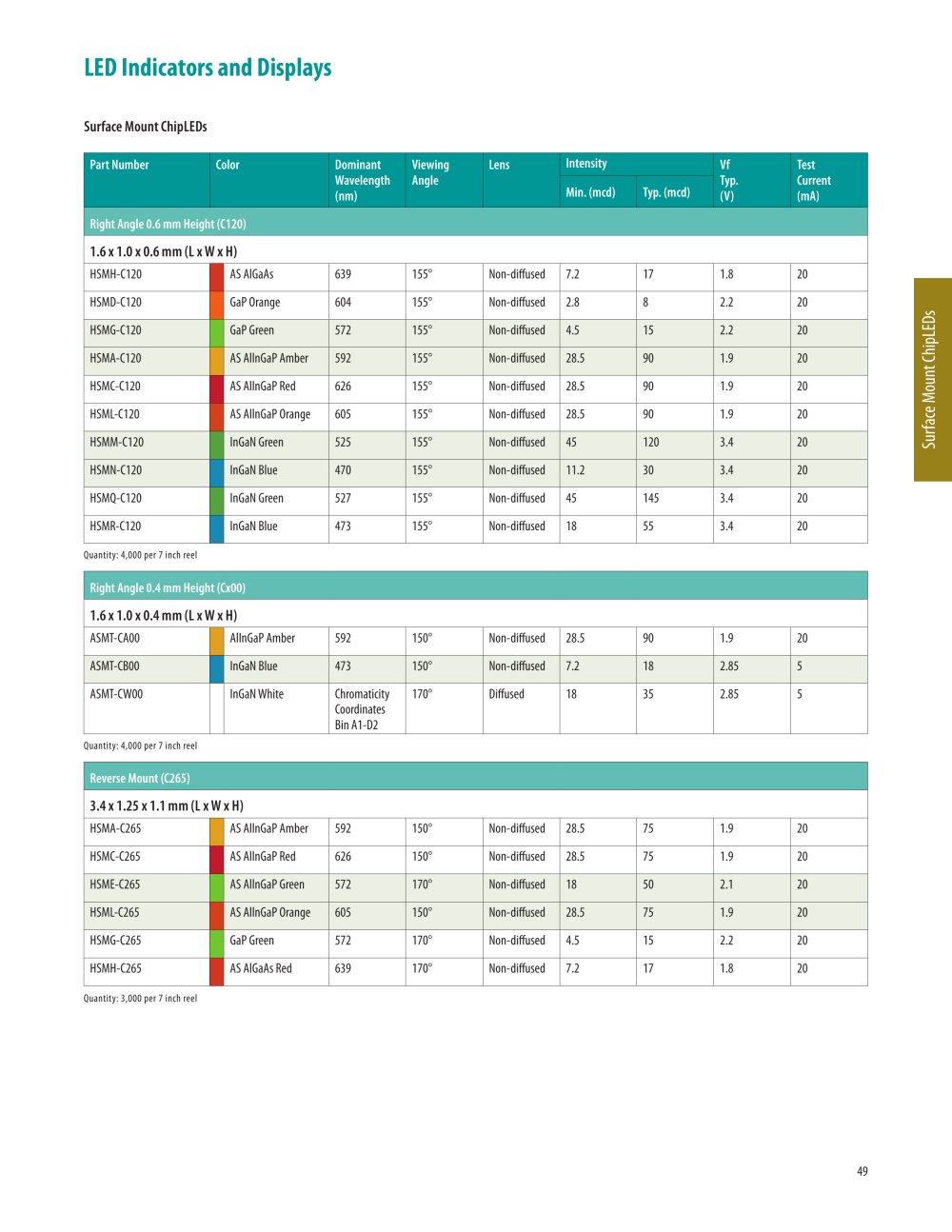

LED Indicators and Displays
Surface Mount ChipLEDs
Part Number
Dominant
Wavelength
(nm)
Viewing Angle
Intensity
Right Angle 0.6 mm Height (C120)
1.6 x 1.0 x 0.6 mm (L x W x H)
HSMH-C120
AS AlGaAs
639
155°
Non-diffused
7.2
17
1.8
20
HSMD-C120
GaP Orange
604
155°
Non-diffused
2.8
8
2.2
20
HSMG-C120
GaP Green
572
155°
Non-diffused
4.5
15
2.2
20
HSMA-C120
AS AllnGaP Amber
592
155°
Non-diffused
28.5
90
1.9
20
HSMC-C120
AS AllnGaP Red
626
155°
Non-diffused
28.5
90
1.9
20
HSML-C120
AS AllnGaP Orange
605
155°
Non-diffused
28.5
90
1.9
20
HSMM-C120
InGaN Green
525
155°
Non-diffused
45
120
3.4
20
HSMN-C120
InGaN Blue
470
155°
Non-diffused
11.2
30
3.4
20
HSMQ-C120
InGaN Green
527
155°
Non-diffused
45
145
3.4
20
HSMR-C120
InGaN Blue
473
155°
Non-diffused
18
55
3.4
20
Quantity: 4,000 per 7 inch reel
Right Angle 0.4 mm Height (Cx00)
1.6 x 1.0 x 0.4 mm (L x W x H)
ASMT-CA00
AlInGaP Amber
592
150°
Non-diffused
28.5
90
1.9
20
ASMT-CB00
_
InGaN Blue
473
150°
Non-diffused
7.2
18
2.85
5
ASMT-CW00
InGaN White
Chromaticity Coordinates Bin A1-D2
170°
Diffused
18
35
2.85
5
Quantity: 4,000 per 7 inch reel
Reverse Mount (C265)
3.4 x 1.25 x 1.1 mm (L x W x H)
HSMA-C265
AS AllnGaP Amber
592
150°
Non-diffused
28.5
75
1.9
20
HSMC-C265
AS AllnGaP Red
626
150°
Non-diffused
28.5
75
1.9
20
HSME-C265
AS AllnGaP Green
572
170°
Non-diffused
18
50
2.1
20
HSML-C265
AS AllnGaP Orange
605
150°
Non-diffused
28.5
75
1.9
20
HSMG-C265
—
GaP Green
572
170°
Non-diffused
4.5
15
2.2
20
HSMH-C265
AS AlGaAs Red
639
170°
Non-diffused
7.2
17
1.8
20
Quantity: 3,000 per 7 inch reel
49
