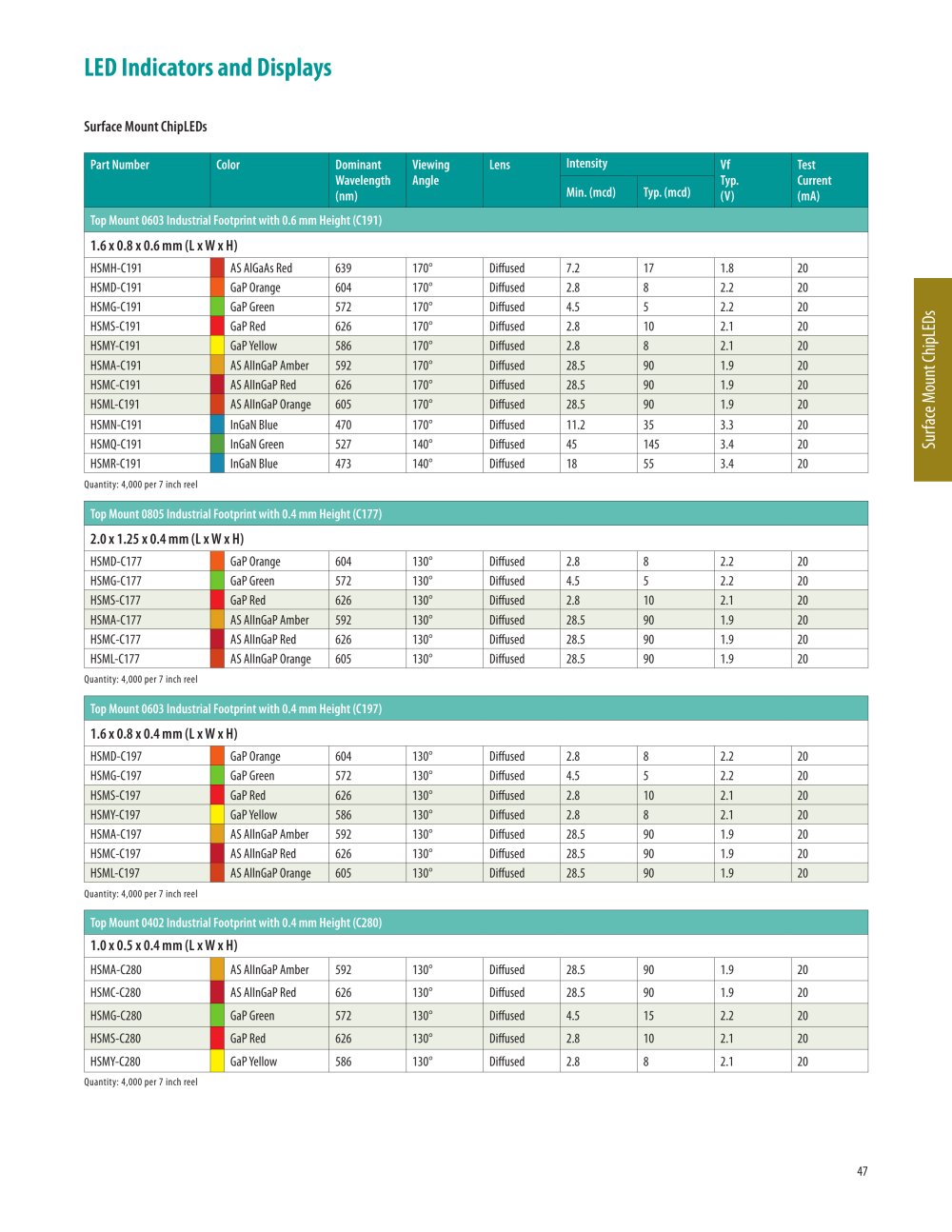

Surface Mount ChipLEDs
Part Number
Color
Dominant
Viewing
Lens
Intensity
m
Wavelength (nm)
Angle
Min. (mcd) Typ. (mcd)
Current (mA)
_
1.6 x 0.8 x 0.6 mm (L x W x H)
HSMH-C191
AS AlGaAs Red
639
170°
Diffused
7.2
17
1.8
20
HSMD-C191
GaP Orange
604
170°
Diffused
2.8
8
2.2
20
HSMG-C191
GaP Green
572
170°
Diffused
4.5
5
2.2
20
HSMS-C191
GaP Red
626
170°
Diffused
2.8
10
2.1
20
HSMY-C191
GaP Yellow
586
170°
Diffused
2.8
8
2.1
20
HSMA-C191
AS AlInGaP Amber
592
170°
Diffused
28.5
90
1.9
20
HSMC-C191
AS AlInGaP Red
626
170°
Diffused
28.5
90
1.9
20
HSML-C191
AS AlInGaP Orange
605
170°
Diffused
28.5
90
1.9
20
HSMN-C191
InGaN Blue
470
170°
Diffused
11.2
35
3.3
20
HSMQ-C191
InGaN Green
527
140°
Diffused
45
145
3.4
20
HSMR-C191
InGaN Blue
473
140°
Diffused
18
55
3.4
20
un
4—'
o
Ol
Quantity: 4,000 per 7 inch reel
Top Mount 0805 Industrial Footprint with 0.4 mm Height (C177
2.0 x 1.25 x 0.4 mm (L x W x H)
HSMD-C177
1 GaP Orange
604
130°
Diffused
2.8
8
2.2
20
HSMG-C177
GaP Green
572
130°
Diffused
4.5
5
2.2
20
HSMS-C177
GaP Red
626
130°
Diffused
2.8
10
2.1
20
HSMA-C177
AS AlInGaP Amber
592
130°
Diffused
28.5
90
1.9
20
HSMC-C177
AS AlInGaP Red
626
130°
Diffused
28.5
90
1.9
20
HSML-C177
AS AlInGaP Orange
605
130°
Diffused
28.5
90
1.9
20
Quantity: 4,000 per 7 inch reel
Top Mount 0603 Industrial Footprint with 0.4 mm Height (C197
1.6 x 0.8 x 0.4 mm (L x W x H)
HSMD-C197
GaP Orange
604
130°
Diffused
2.8
8
2.2
20
HSMG-C197
GaP Green
572
130°
Diffused
4.5
5
2.2
20
HSMS-C197
GaP Red
626
130°
Diffused
2.8
10
2.1
20
HSMY-C197
GaP Yellow
586
130°
Diffused
2.8
8
2.1
20
HSMA-C197
AS AllnGaP Amber
592
130°
Diffused
28.5
90
1.9
20
HSMC-C197
AS AllnGaP Red
626
130°
Diffused
28.5
90
1.9
20
HSML-C197
AS AllnGaP Orange
605
130°
Diffused
28.5
90
1.9
20
Quantity: 4,000 per 7 inch reel
Tod Mount 0402 Industria
Footprint with 0.4 mm Height (C280)
1.0 x 0.5 x 0.4 mm (L x W x H)
HSMA-C280
AS AlInGaP Amber
592
130°
Diffused
28.5
90
1.9
20
HSMC-C280
:
AS AlInGaP Red
626
130°
Diffused
28.5
90
1.9
20
HSMG-C280
GaP Green
572
130°
Diffused
4.5
15
2.2
20
HSMS-C280
GaP Red
626
130°
Diffused
2.8
10
2.1
20
HSMY-C280
GaP Yellow
586
130°
Diffused
2.8
8
2.1
20
Quantity: 4,000 per 7 inch reel
