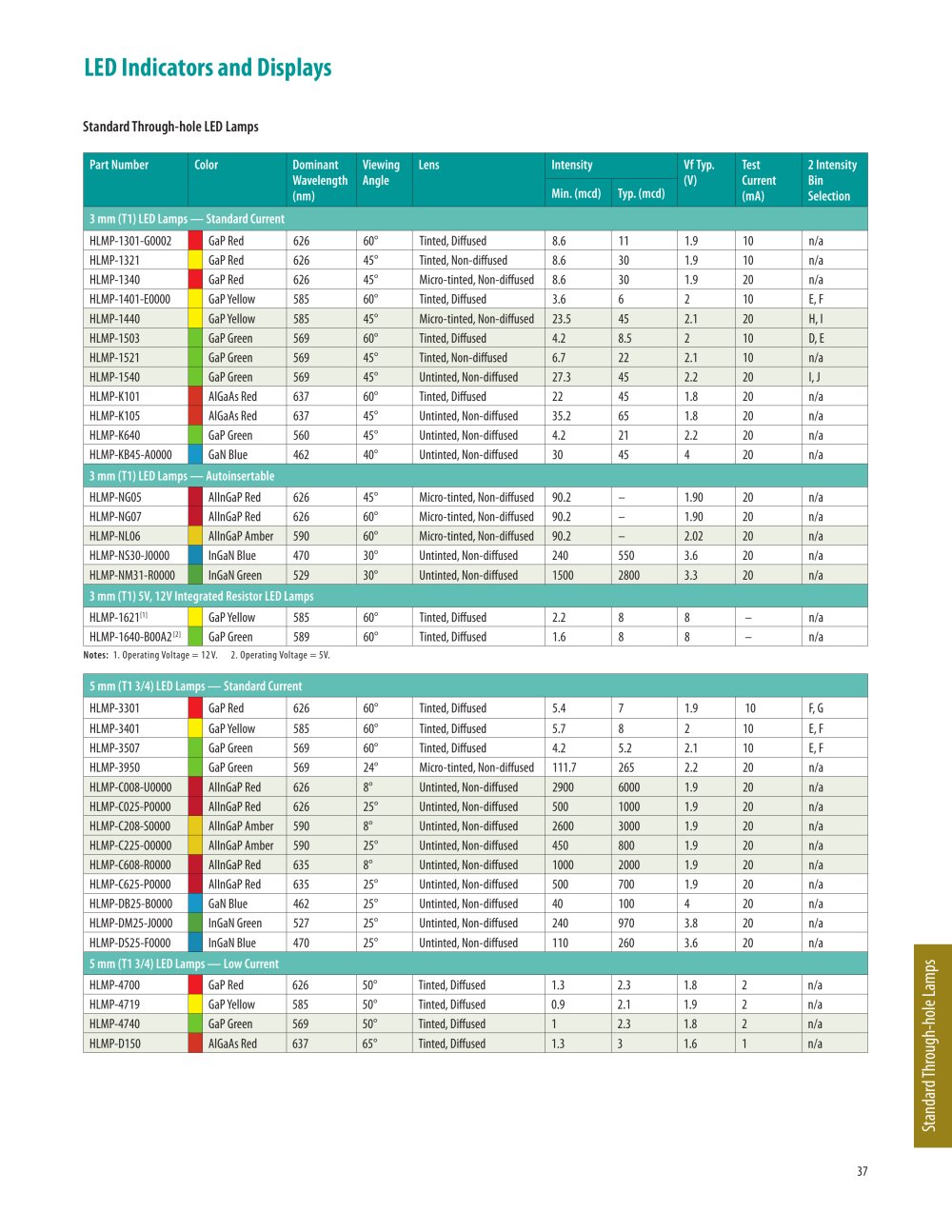

Standard Through-hole LED Lamps
Part Number
Color
Dominant Viewing Wavelength Angle (nm)
I
2 Intensi ty Current Bin (mA) Selection
(V)
Min. (med) Typ. (mcd)
HLMP-1301-G0002
GaP Red
626
60°
Tinted, Diffused
8.6
11
1.9
10
n/a
HLMP-1321
GaP Red
626
45°
Tinted, Non-diffused
8.6
30
1.9
10
n/a
HLMP-1340
GaP Red
626
45°
Micro-tinted, Non-diffused
8.6
30
1.9
20
n/a
HLMP-1401-E0000
GaP Yellow
585
60°
Tinted, Diffused
3.6
6
2
10
E, F
HLMP-1440
GaP Yellow
585
45°
Micro-tinted, Non-diffused
23.5
45
2.1
20
H, I
HLMP-1503
GaP Green
569
60°
Tinted, Diffused
4.2
8.5
2
10
D, E
HLMP-1521
GaP Green
569
45°
Tinted, Non-diffused
6.7
22
2.1
10
n/a
HLMP-1540
GaP Green
569
45°
Untinted, Non-diffused
27.3
45
2.2
20
I, J
HLMP-K101
AlGaAs Red
637
60°
Tinted, Diffused
22
45
1.8
20
n/a
HLMP-K105
AlGaAs Red
637
45°
Untinted, Non-diffused
35.2
65
1.8
20
n/a
HLMP-K640
GaP Green
560
45°
Untinted, Non-diffused
4.2
21
2.2
20
n/a
HLMP-KB45-A0000
GaN Blue
462
40°
Untinted, Non-diffused
30
45
4
20
n/a
3 mm led Lamps — Autoinsertauie
HLMP-NG05
AlInGaP Red
626
45°
Micro-tinted, Non-diffused
90.2
-
1.90
20
n/a
HLMP-NG07
AlInGaP Red
626
60°
Micro-tinted, Non-diffused
90.2
-
1.90
20
n/a
HLMP-NL06
AlInGaP Amber
590
60°
Micro-tinted, Non-diffused
90.2
-
2.02
20
n/a
HLMP-NS30-J0000
InGaN Blue
470
30°
Untinted, Non-diffused
240
550
3.6
20
n/a
HLMP-NM31-R0000
InGaN Green
529
30°
Untinted, Non-diffused
1500
2800
3.3
20
n/a
3 mm (T1) 5V, 12V Integrated Resistor LED Lamps
HLMP-1621[1]
GaP Yellow
585
60°
Tinted, Diffused
2.2
8
8
-
n/a
HLMP-1640-B00A2[2]
GaP Green
589
60°
Tinted, Diffused
1.6
8
8
-
n/a
Notes: 1. Operating Voltage = 12V. 2. Operating Voltage = 5V.
5 mm (T1 3/4) LED Lamps — Standard Curre
HLMP-3301
GaP Red
626
60°
Tinted, Diffused
5.4
7
1.9
10
F, G
HLMP-3401
GaP Yellow
585
60°
Tinted, Diffused
5.7
8
2
10
E, F
HLMP-3507
GaP Green
569
60°
Tinted, Diffused
4.2
5.2
2.1
10
E, F
HLMP-3950
GaP Green
569
24°
Micro-tinted, Non-diffused
111.7
265
2.2
20
n/a
HLMP-C008-U0000
AlInGaP Red
626
8°
Untinted, Non-diffused
2900
6000
1.9
20
n/a
HLMP-C025-P0000
AlInGaP Red
626
25°
Untinted, Non-diffused
500
1000
1.9
20
n/a
HLMP-C208-S0000
AlInGaP Amber
590
8°
Untinted, Non-diffused
2600
3000
1.9
20
n/a
HLMP-C225-O0000
AlInGaP Amber
590
25°
Untinted, Non-diffused
450
800
1.9
20
n/a
HLMP-C608-R0000
AlInGaP Red
635
8°
Untinted, Non-diffused
1000
2000
1.9
20
n/a
HLMP-C625-P0000
AlInGaP Red
635
25°
Untinted, Non-diffused
500
700
1.9
20
n/a
HLMP-DB25-B0000
GaN Blue
462
25°
Untinted, Non-diffused
40
100
4
20
n/a
HLMP-DM25-J0000
InGaN Green
527
25°
Untinted, Non-diffused
240
970
3.8
20
n/a
HLMP-DS25-F0000
InGaN Blue
470
25°
Untinted, Non-diffused
110
260
3.6
20
n/a
5 mm (T1 3/4) LED Lamps — Low Current
HLMP-4700
GaP Red
626
50°
Tinted, Diffused
1.3
2.3
1.8
2
n/a
HLMP-4719
GaP Yellow
585
50°
Tinted, Diffused
0.9
2.1
1.9
2
n/a
HLMP-4740
GaP Green
569
50°
Tinted, Diffused
1
2.3
1.8
2
n/a
HLMP-D150
AlGaAs Red
637
65°
Tinted, Diffused
1.3
3
1.6
1
n/a
