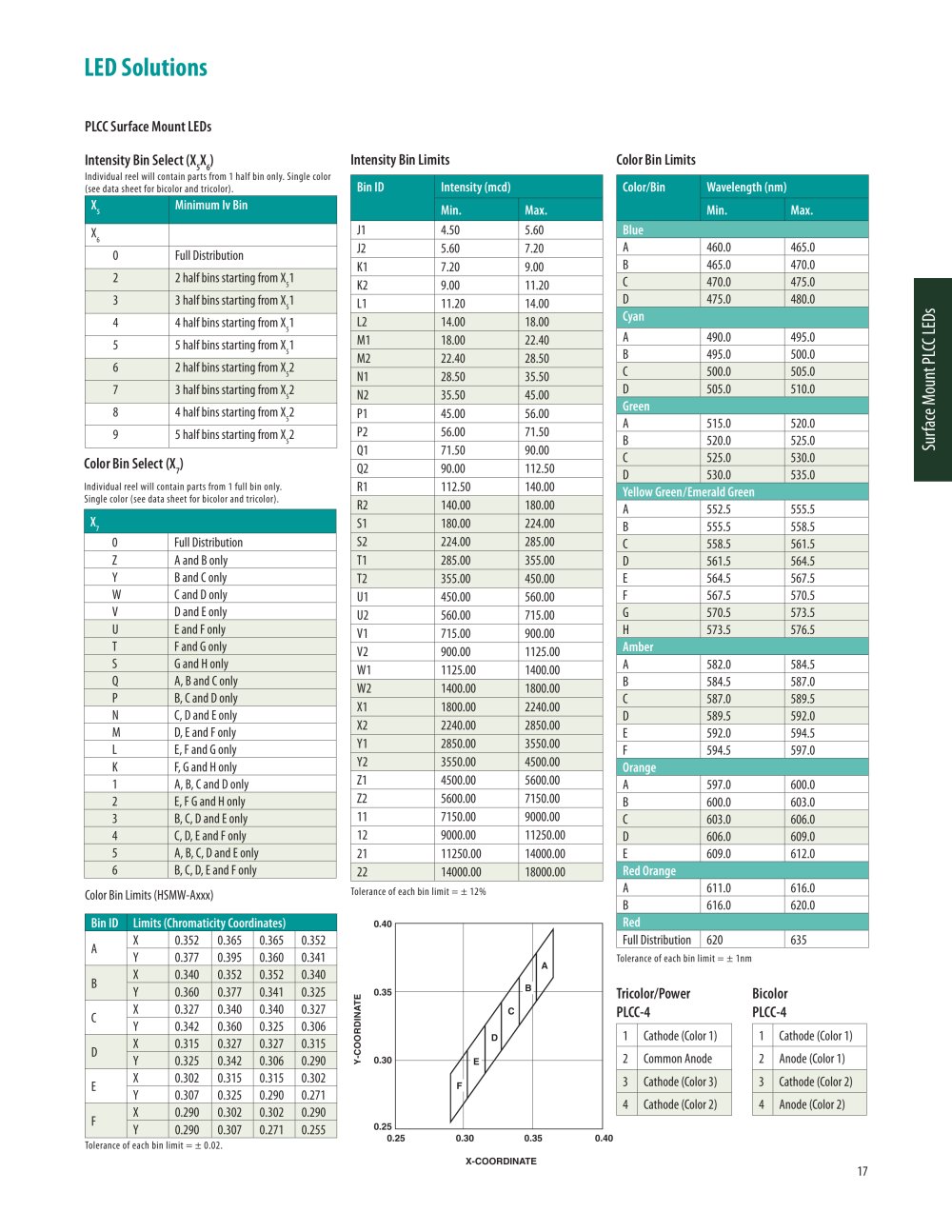

PLCC Surface Mount LEDs
Color Bin Limits
Intensity Bin Select (X5X6)
Individual reel will contain parts from 1 half bin only. Single color (see data sheet for bicolor and tricolor).
Intensity Bin Limits
Bin ID
Intensity (mcd)
ME
Min.
Max.
J1
4.50
5.60
J2
5.60
7.20
K1
7.20
9.00
K2
9.00
11.20
L1
11.20
14.00
L2
14.00
18.00
M1
18.00
22.40
M2
22.40
28.50
N1
28.50
35.50
N2
35.50
45.00
P1
45.00
56.00
P2
56.00
71.50
Q1
71.50
90.00
Q2
90.00
112.50
R1
112.50
140.00
R2
140.00
180.00
S1
180.00
224.00
S2
224.00
285.00
T1
285.00
355.00
T2
355.00
450.00
U1
450.00
560.00
U2
560.00
715.00
V1
715.00
900.00
V2
900.00
1125.00
W1
1125.00
1400.00
W2
1400.00
1800.00
X1
1800.00
2240.00
X2
2240.00
2850.00
Y1
2850.00
3550.00
Y2
3550.00
4500.00
Z1
4500.00
5600.00
Z2
5600.00
7150.00
11
7150.00
9000.00
12
9000.00
11250.00
21
11250.00
14000.00
22
14000.00
18000.00
Wavelength (nm
Min.
Max.
A
460.0
465.0
B
465.0
470.0
C
470.0
475.0
D
475.0
480.0
A
490.0
495.0
B
495.0
500.0
C
500.0
505.0
D
505.0
510.0
Green
A
515.0
520.0
B
520.0
525.0
C
525.0
530.0
D
530.0
535.0
Yellow Green/Emerald Green
A
552.5
555.5
B
555.5
558.5
C
558.5
561.5
D
561.5
564.5
E
564.5
567.5
F
567.5
570.5
G
570.5
573.5
H
573.5
576.5
Amber
A
582.0
584.5
B
584.5
587.0
C
587.0
589.5
D
589.5
592.0
E
592.0
594.5
F
594.5
597.0
Orange
A
597.0
600.0
B
600.0
603.0
C
603.0
606.0
D
606.0
609.0
E
609.0
612.0
Red Orange
A
611.0
616.0
B
616.0
620.0
Full Distribution
620
635
Minimum Iv Bin
0
Full Distribution
2
2 half bins starting from X51
3
3 half bins starting from X51
4
4 half bins starting from X51
5
5 half bins starting from X51
6
2 half bins starting from X52
7
3 half bins starting from X52
8
4 half bins starting from X52
9
5 half bins starting from X52
K/1 LU
1—1 1—1
-t—'
O
Ol
Color Bin Select (X7)
Individual reel will contain parts from 1 full bin only. Single color (see data sheet for bicolor and tricolor).
Full Distribution
Z
A and B only
Y
B and C only
W
C and D only
V
D and E only
U
E and F only
T
F and G only
S
G and H only
Q
A, B and C only
P
B, C and D only
N
C, D and E only
M
D, E and F only
L
E, F and G only
K
F, G and H only
1
A, B, C and D only
2
E, F G and H only
3
B, C, D and E only
4
C, D, E and F only
5
A, B, C, D and E only
6
B, C, D, E and F only
Tolerance of each bin limit = ± 12%
Color Bin Limits (HSMW-Axxx)
Bin ID Limits (Chromaticity Coordinates)
A
X
0.352
0.365
0.365
0.352
Y
0.377
0.395
0.360
0.341
B
X
0.340
0.352
0.352
0.340
Y
0.360
0.377
0.341
0.325
C
X
0.327
0.340
0.340
0.327
Y
0.342
0.360
0.325
0.306
D
X
0.315
0.327
0.327
0.315
Y
0.325
0.342
0.306
0.290
E
X
0.302
0.315
0.315
0.302
Y
0.307
0.325
0.290
0.271
F
X
0.290
0.302
0.302
0.290
Y
0.290
0.307
0.271
0.255
0.40
/
A
/
>
/fC/
V
Tolerance of each bin limit = ± 1nm
Tricolor/Power Bicolor
PLCC-4 PLCC-4
0.35
LU Z
□ ce o o o >■
1
Cathode (Color 1)
2
Common Anode
3
Cathode (Color 3)
4
Cathode (Color 2)
1
Cathode (Color 1)
2
Anode (Color 1)
3
Cathode (Color 2)
4
Anode (Color 2)
0.30
0.25 L
0.25
0.30
0.35
0.40
Tolerance of each bin limit = ± 0.02.
X-COORDINATE
