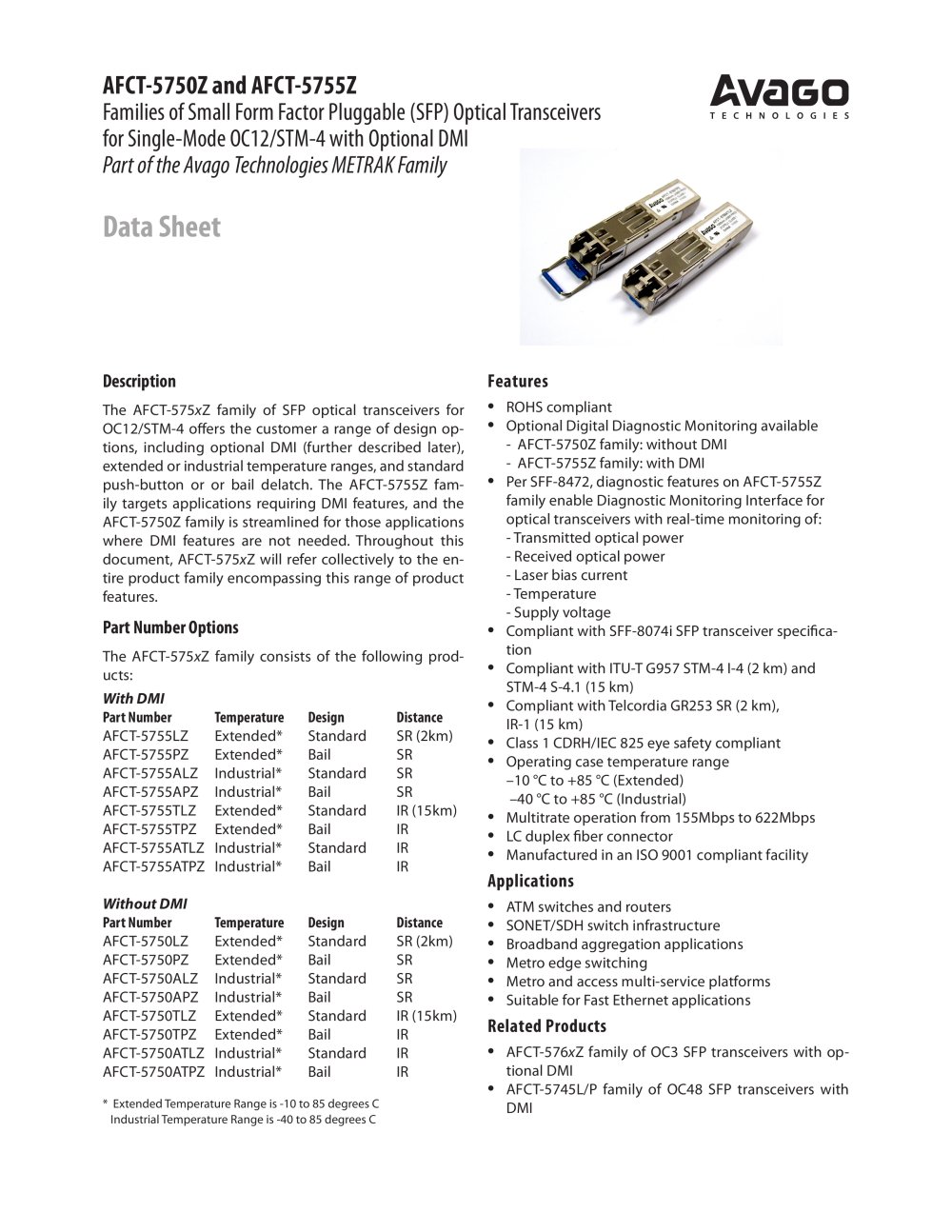

AFCT-5750Z and AFCT-5755Z

Families of Small Form Factor Pluggable (SFP) Optical Transceivers for Single-Mode OC12/STM-4 with Optional DMI Part of the Avago Technologies METRAK Family

Families of Small Form Factor Pluggable (SFP) Optical Transceivers - 33934 Data Sheet

x Z will refer collectively to the en-tire product family encompassing this range of product features.

Description Features

The AFCT-575 x Z family of SFP optical transceivers for OC12/STM-4 oers the customer a range of design op- tions, including optional DMI (further described later), extended or industrial temperature ranges, and standard push-button or or bail delatch. The AFCT-5755Z fam- ily targets applications requiring DMI features, and the AFCT-5750Z family is streamlined for those applications where DMI features are not needed. Throughout this document, AFCT-575

•

ROHS compliant

•

Optional Digital Diagnostic Monitoring available - AFCT-5750Z family: without DMI - AFCT-5755Z family: with DMI

•

Per SFF-8472, diagnostic features on AFCT-5755Z family enable Diagnostic Monitoring Interface for optical transceivers with real-time monitoring of: - Transmitted optical power - Received optical power - Laser bias current - Temperature - Supply voltage Without DMI AFCT-5750LZ Extended* Standard SR (2km) AFCT-5750PZ Extended* Bail SR AFCT-5750ALZ Industrial* Standard SR AFCT-5750APZ Industrial* Bail SR AFCT-5750TLZ Extended* Standard IR (15km) AFCT-5750TPZ Extended* Bail IR AFCT-5750ATLZ Industrial* Standard IR AFCT-5750ATPZ Industrial* Bail IR

Part Number Options

Part Number Temperature Design Distance

•

Compliant with SFF-8074i SFP transceiver specica- tion The AFCT-575 x Z family consists of the following prod-ucts:

•

Compliant with ITU-T G957 STM-4 I-4 (2 km) and STM-4 S-4.1 (15 km) With DMI AFCT-5755LZ Extended* Standard SR (2km) AFCT-5755PZ Extended* Bail SR AFCT-5755ALZ Industrial* Standard SR AFCT-5755APZ Industrial* Bail SR AFCT-5755TLZ Extended* Standard IR (15km) AFCT-5755TPZ Extended* Bail IR AFCT-5755ATLZ Industrial* Standard IR AFCT-5755ATPZ Industrial* Bail IR Part Number Temperature Design Distance

•

Compliant with Telcordia GR253 SR (2 km), IR-1 (15 km)

•

Class 1 CDRH/IEC 825 eye safety compliant

•

Operating case temperature range –10 °C to +85 °C (Extended) –40 °C to +85 °C (Industrial)

•

Multitrate operation from 155Mbps to 622Mbps

•

LC duplex ber connector

•

Manufactured in an ISO 9001 compliant facility

Applications •

ATM switches and routers

•

SONET/SDH switch infrastructure

•

Broadband aggregation applications

•

Metro edge switching

•

Metro and access multi-service platforms

• •

Suitable for Fast Ethernet applications

Related Products

AFCT-576 x Z family of OC3 SFP transceivers with op-tional DMI AFCT-5745L/P family of OC48 SFP transceivers with DMI
* Extended Temperature Range is -10 to 85 degrees C Industrial Temperature Range is -40 to 85 degrees C

•
