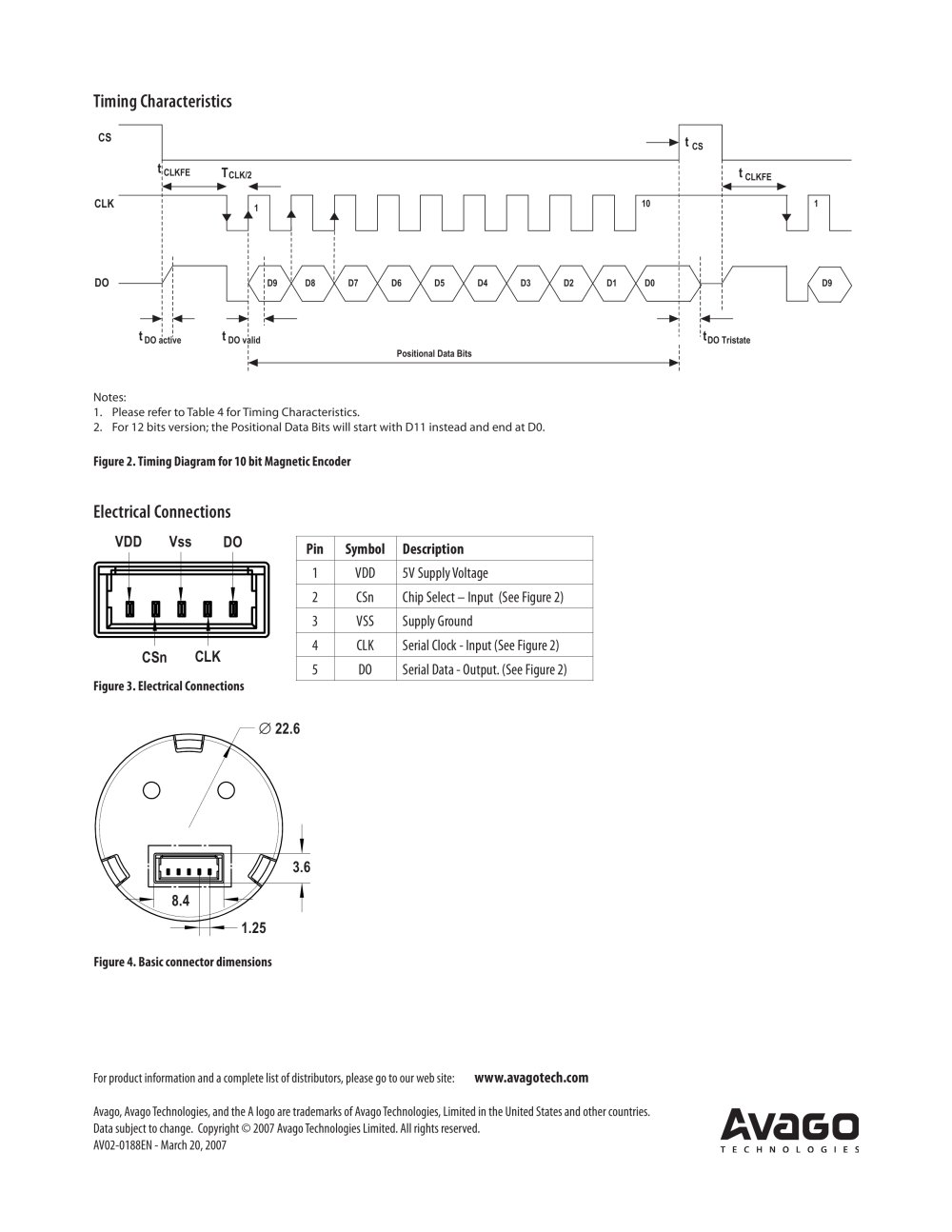

Timing Characteristics

TcLK/2

clkfe

clk

DI Y do

! D9 Y D8

^TDO active ^TDO vàlid

^TD0 Tristate

Positional Data Bits

Notes:

1. Please refer to Table 4 for Timing Characteristics.

2. For 12 bits version; the Positional Data Bits will start with D11 instead and end at DO. Figure 2. Timing Diagram for 10 bit Magnetic Encoder

Electrical Connections VDD Vss DO


Pin	Symbol	Description
1	VDD	5V Supply Voltage
2	CSn	Chip Select - Input (See Figure 2)
3	VSS	Supply Ground
4	CLK	Serial Clock - Input (See Figure 2)
5	DO	Serial Data - Output. (See Figure 2)


	Fi
	limili

esn clk

Figure 3. Electrical Connections

22 fi

Figure 4. Basic connector dimensions

For product information and a complete list of distributors, please go to our web site: www.avagotech.com

Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies, Limited in the United States and other countries. Data subject to change. Copyright © 2007 Avago Technologies Limited. All rights reserved. AV02-0188EN - March 20, 2007
