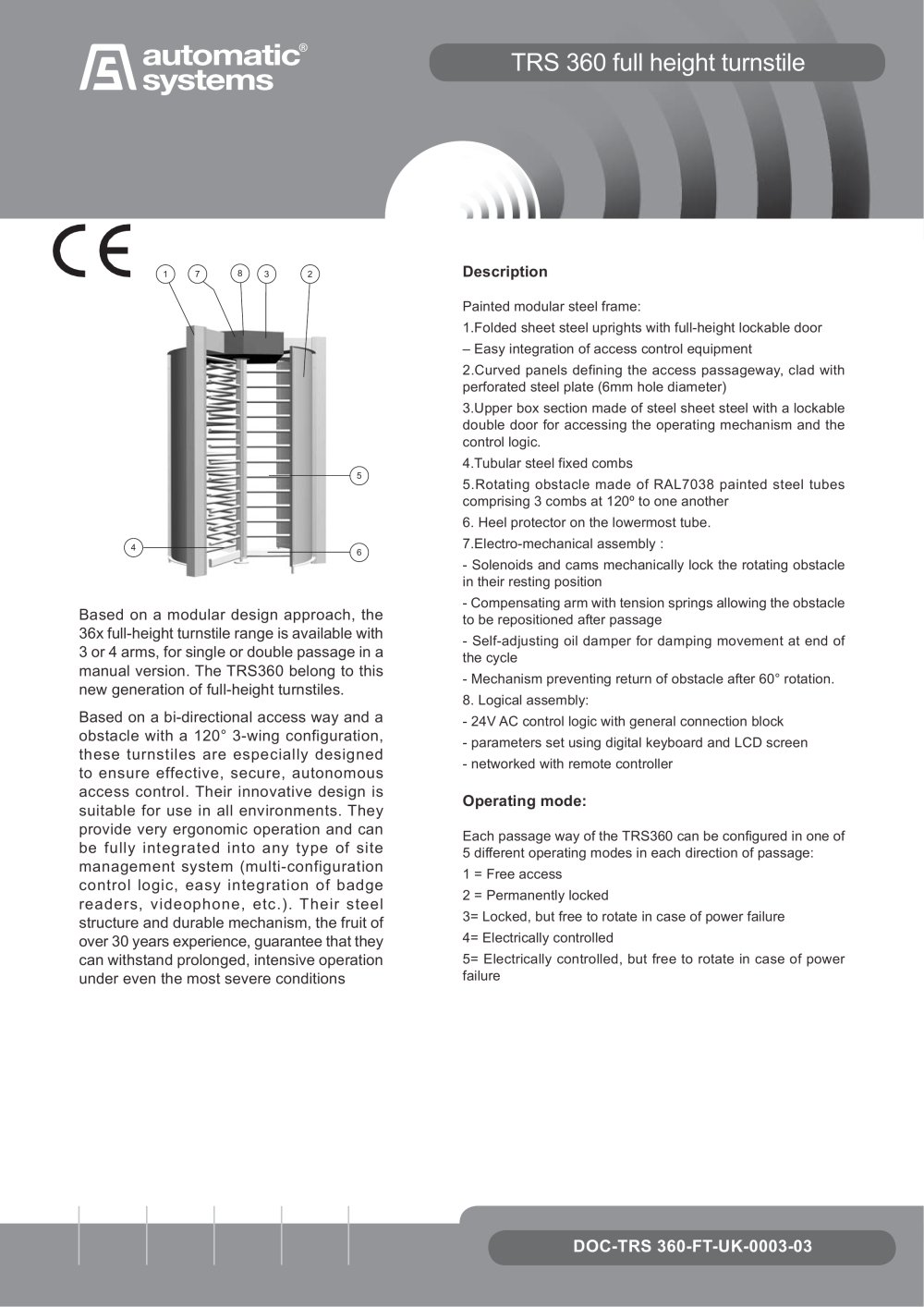

TRS 360 full height turnstile

Description

Painted modular steel frame: 1.Folded sheet steel uprights with full-height lockable door– Easy integration of access control equipment2.Curved panels defining the access passageway, clad with perforated steel plate (6mm hole diameter)3.Upper box section made of steel sheet steel with a lockable double door for accessing the operating mechanism and the control logic.4.Tubular steel fixed combs5.Rotating obstacle made of RAL7038 painted steel tubes comprising 3 combs at 120º to one another6. Heel protector on the lowermost tube.7.Electro-mechanical assembly : - Solenoids and cams mechanically lock the rotating obstacle in their resting position- Compensating arm with tension springs allowing the obstacle to be repositioned after passage- Self-adjusting oil damper for damping movement at end of the cycle- Mechanism preventing return of obstacle after 60° rotation.8. Logical assembly:- 24V AC control logic with general connection block- parameters set using digital keyboard and LCD screen- networked with remote controller

Based on a modular design approach, the 36x full-height turnstile range is available with 3 or 4 arms, for single or double passage in a manual version. The TRS360 belong to this new generation of full-height turnstiles.Based on a bi-directional access way and a obstacle with a 120° 3-wing configuration, these turnstiles are especially designed to ensure effective, secure, autonomous access control. Their innovative design is suitable for use in all environments. They provide very ergonomic operation and can be fully integrated into any type of site management system (multi-configuration control logic, easy integration of badge readers, videophone, etc.). Their steel structure and durable mechanism, the fruit of over 30 years experience, guarantee that they can withstand prolonged, intensive operation under even the most severe conditions Operating mode:

Each passage way of the TRS360 can be configured in one of 5 different operating modes in each direction of passage:1 = Free access2 = Permanently locked3= Locked, but free to rotate in case of power failure4= Electrically controlled 5= Electrically controlled, but free to rotate in case of power failure

DOC-TRS 360-FT-UK-0003-03
