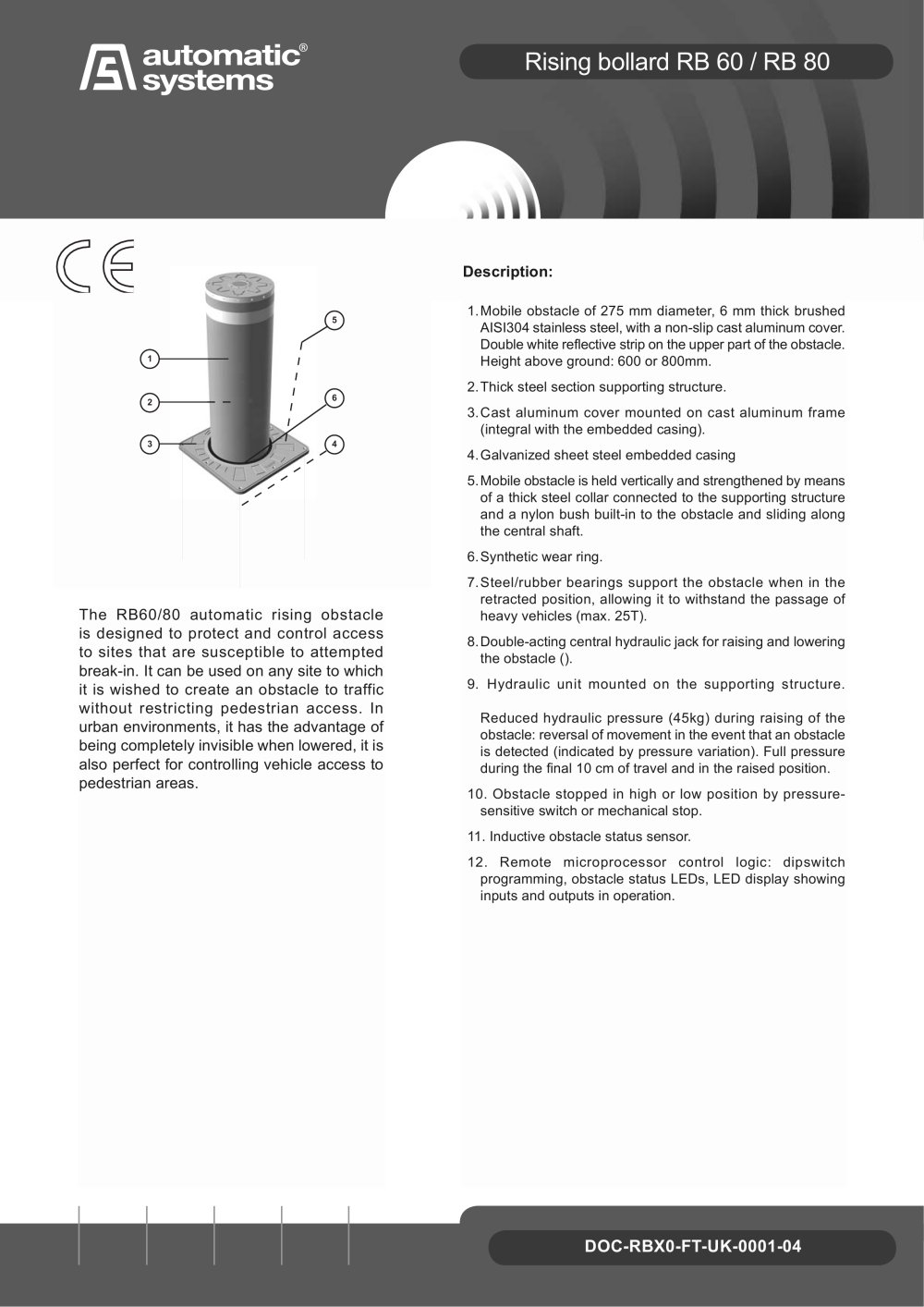

Rising bollard RB 60 / RB 80

Description:

1. Mobile obstacle of 275 mm diameter, 6 mm thick brushed AISI304 stainless steel, with a non-slip cast aluminum cover. Double white reflective strip on the upper part of the obstacle. Height above ground: 600 or 800mm.2. Thick steel section supporting structure. 3. Cast aluminum cover mounted on cast aluminum frame (integral with the embedded casing).4. Galvanized sheet steel embedded casing 5. Mobile obstacle is held vertically and strengthened by means of a thick steel collar connected to the supporting structure and a nylon bush built-in to the obstacle and sliding along the central shaft. 6. Synthetic wear ring. 7. Steel/rubber bearings support the obstacle when in the retracted position, allowing it to withstand the passage of heavy vehicles (max. 25T).8. Double-acting central hydraulic jack for raising and lowering the obstacle ().9. Hydraulic unit mounted on the supporting structure. Reduced hydraulic pressure (45kg) during raising of the obstacle: reversal of movement in the event that an obstacle is detected (indicated by pressure variation). Full pressure during the final 10 cm of travel and in the raised position.10. Obstacle stopped in high or low position by pressure-sensitive switch or mechanical stop.11. Inductive obstacle status sensor.12. Remote microprocessor control logic: dipswitch programming, obstacle status LEDs, LED display showing inputs and outputs in operation.

The RB60/80 automatic rising obstacle is designed to protect and control access to sites that are susceptible to attempted break-in. It can be used on any site to which it is wished to create an obstacle to traffic without restricting pedestrian access. In urban environments, it has the advantage of being completely invisible when lowered, it is also perfect for controlling vehicle access to pedestrian areas.

DOC-RBX0-FT-UK-0001-04
