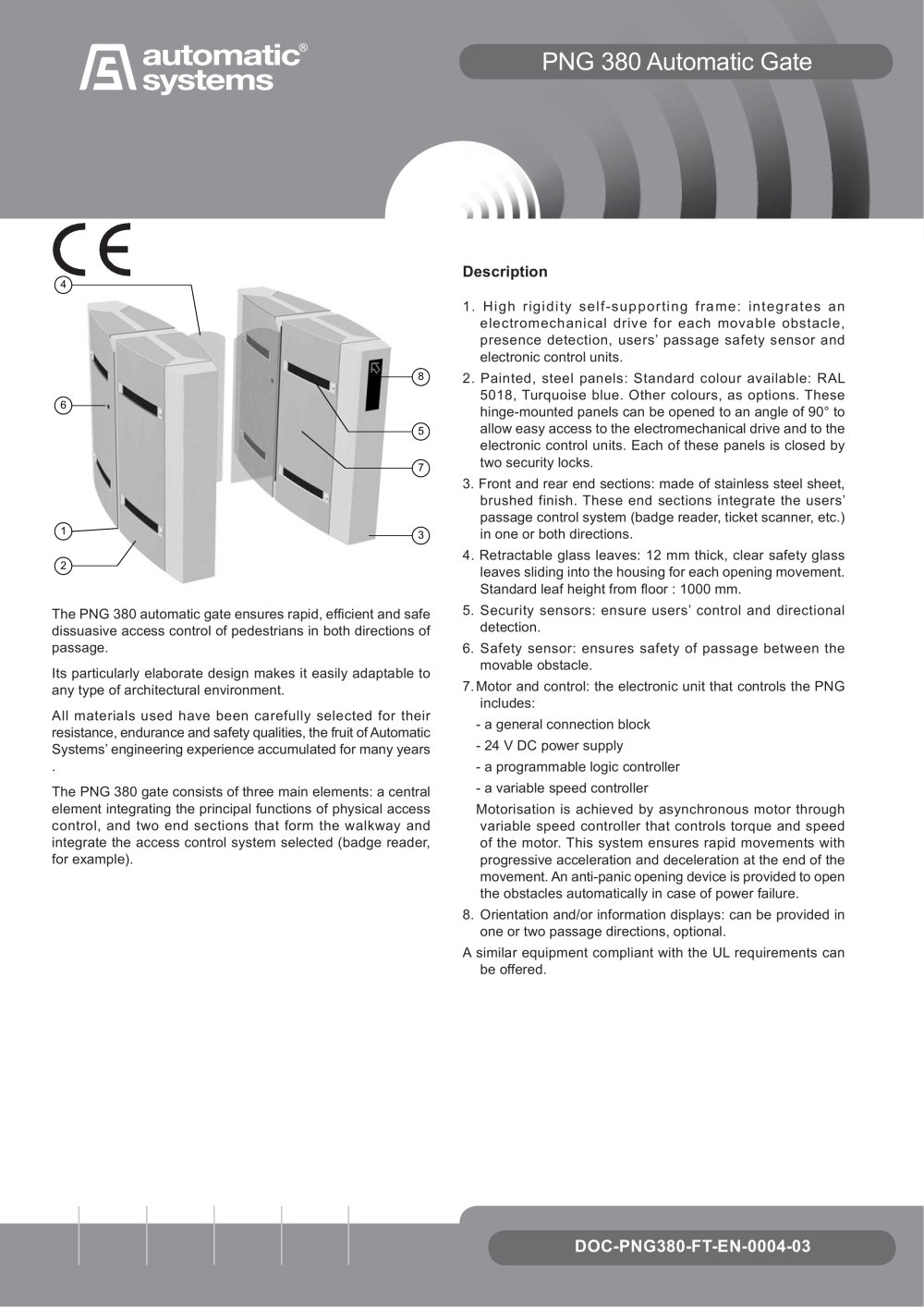

PNG 380 Automatic Gate

Description

1. High rigidity self-sup porting frame: integrates an electromechanical drive for each movable obstacle, presence de tection, users’ passage safety sensor and electronic control units.2. Painted, steel panels: Standard colour available: RAL 5018, Turquoise blue. Other colours, as options. These hinge-mounted pan els can be opened to an angle of 90° to allow easy ac cess to the elec tromechanical drive and to the electronic control units. Each of these panels is closed by two security locks.3. Front and rear end sections: made of stainless steel sheet, brushed finish. These end sections integrate the users’ passage con trol system (badge reader, ticket scanner, etc.) in one or both directions.4. Retractable glass leaves: 12 mm thick, clear safety glass leaves sliding into the housing for each opening move ment.Standard leaf height from floor : 1000 mm. 5. Security sensors: ensure users’ control and directional detection.6. Safety sensor: ensures safety of passage between the movable obstacle.7. Motor and control: the electronic unit that controls the PNG includes: - a general connection block - 24 V DC power supply - a programmable logic controller - a variable speed controller Motorisation is achieved by asynchronous motor through variable speed controller that controls torque and speed of the motor. This system ensures rapid movements with progressive acceleration and deceleration at the end of the movement. An anti-panic opening device is provided to open the obstacles automatically in case of power failure. 8. Orientation and/or information displays: can be provided in one or two passage directions, optional.A similar equipment compliant with the UL requirements can be offered.

The PNG 380 automatic gate ensures rapid, efficient and safe dissuasive access control of pedestrians in both directions of passage.Its particularly elaborate design makes it easily adapt able to any type of architectural environment.All ma terials used have been carefully selected for their resistance, endurance and safety qualities, the fruit of Au tomatic Systems’ engineering experience ac cumulated for many years .The PNG 380 gate consists of three main elements: a central element integrating the principal functions of physical access control, and two end sections that form the walkway and integrate the access control system se lected (badge reader, for example).

DOC-PNG380-FT-EN-0004-03
