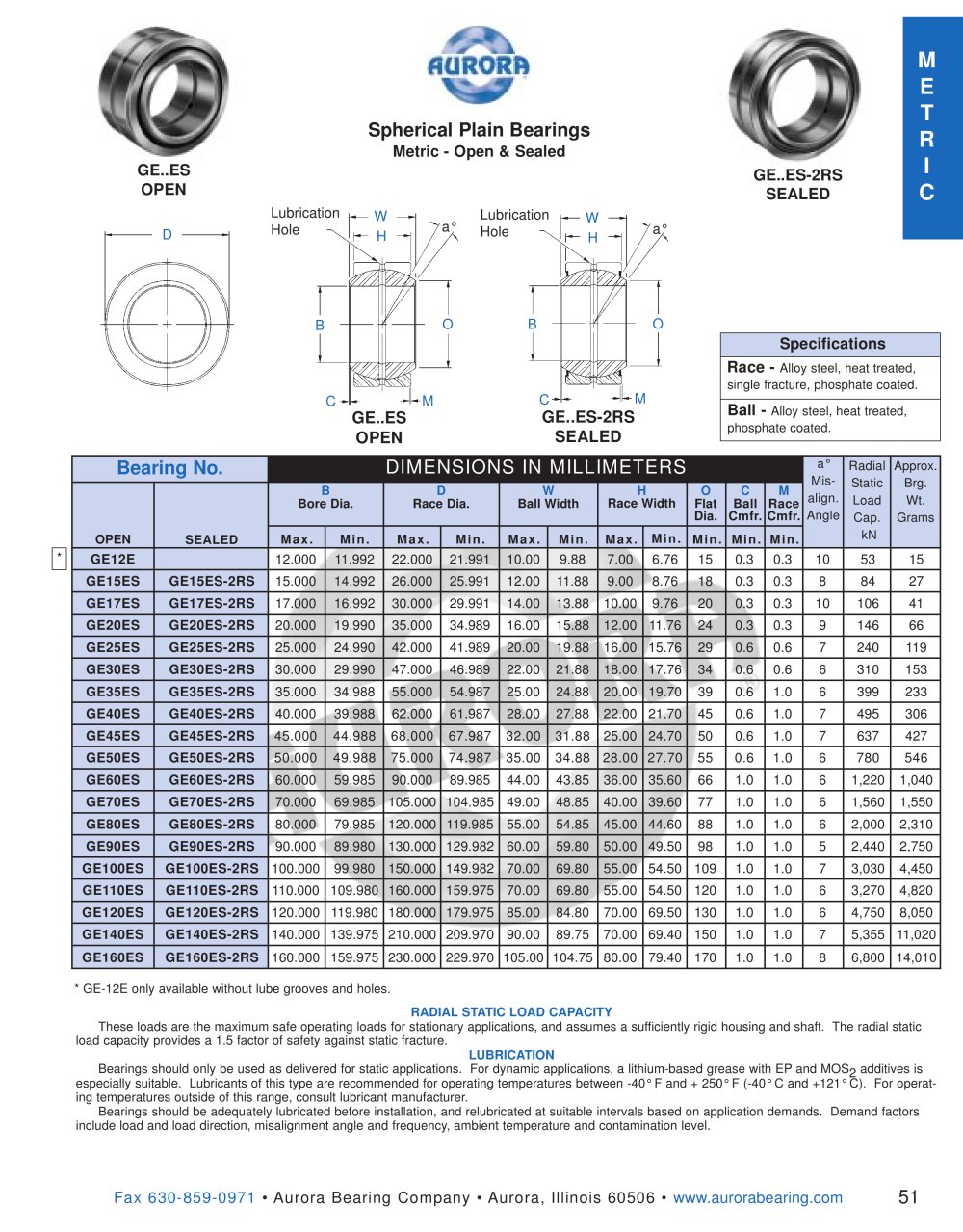

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Spherical Plain Bearings Metric - Open & Sealed | | | | | | | | | | GE..ES OPEN | | | | | | GE..ES-2RS SEALED | | | | | | | | | | | | | | Lubrication Hole | | | | | | Lubrication Hole | | | | | | | | | | | | | | Specifications | | | | | | | | | | Race - Alloy steel, heat treated, single fracture, phosphate coated. | | | | | | -II—M GE..ES OPEN | | | | | | | | | | | | | | | | C | | M | | | | | C | | | | | | | | | | Ball - Alloy steel, heat treated, phosphate coated. | | | | | | | | | | | | | | GE..ES-2RS SEALED | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Bearing No. | | dimensions in | millimeters | | | | a° Misalign. Angle | Radial Static Load Cap. | Approx. Brg. Wt. Grams | | | | | | B Bore Dia. | D Race Dia. | W Ball Width | H Race Width | O Flat Dia. | C Ball Cmfr. | M Race Cmfr. | | | | OPEN | SEALED | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | Min. | Min. | | kN | | | | | GE12E | | 12.000 | 11.992 | 22.000 | 21.991 | 10.00 | 9.88 | 7.00 | 6.76 | 15 | 0.3 | 0.3 | 10 | 53 | 15 | | | | GE15ES | GE15ES-2RS | 15.000 | 14.992 | 26.000 | 25.991 | 12.00 | 11.88 | 9.00 | 8.76 | 18 | 0.3 | 0.3 | 8 | 84 | 27 | | | | GE17ES | GE17ES-2RS | 17.000 | 16.992 | 30.000 | 29.991 | 14.00 | 13.88 | 10.00 | 9.76 | 20 | 0.3 | 0.3 | 10 | 106 | 41 | | | | GE20ES | GE20ES-2RS | 20.000 | .19.990 | 35.000 | 34.989 | 16.00 | 15.88 | 12.00 | 11.76 | 24 | 0.3 | 0.3 | 9 | 146 | 66 | | | | GE25ES | GE25ES-2RS | 25.000 | 24.990 | 42.000 | 41.989 | 20.00 | 19.88 | 16.00 | 15.76 | 29 | 0.6 | 0.6 | 7 | 240 | 119 | | | | GE30ES | GE30ES-2RS | 30.000 | 29.990 | 47.000 | 46.989 | 22.00 | 21.88 | 18.00 | 17.76 | 34 | 0.6 | 0.6 | 6 | 310 | 153 | | | | GE35ES | GE35ES-2RS | 35.000 | 34.988 | 55.000 | 54.987 | 25.00 | 24.88 | 20.00 | 19.70 | 39 | 0.6 | 1.0 | 6 | 399 | 233 | | | | GE40ES | GE40ES-2RS | 40.000 | 39.988 | 62.000 | 61.987 | 28.00 | 27.88 | 22.00 | 21.70 | 45 | 0.6 | 1.0 | 7 | 495 | 306 | | | | GE45ES | GE45ES-2RS | 45.000 | 44.988 | 68.000 | 67.987 | 32.00 | 31.88 | 25.00 | 24.70 | 50 | 0.6 | 1.0 | 7 | 637 | 427 | | | | GE50ES | GE50ES-2RS | 50.000 | 49.988 | 75.000 | 74.987 | 35.00 | 34.88 | 28.00 | 27.70 | 55 | 0.6 | 1.0 | 6 | 780 | 546 | | | | GE60ES | GE60ES-2RS | 60.000 | 59.985 | 90.000 | 89.985 | 44.00 | 43.85 | 36.00 | 35.60 | 66 | 1.0 | 1.0 | 6 | 1,220 | 1,040 | | | | GE70ES | GE70ES-2RS | 70.000 | 69.985 | 105.000 | 104.985 | 49.00 | 48.85 | 40.00 | 39.60 | 77 | 1.0 | 1.0 | 6 | 1,560 | 1,550 | | | | GE80ES | GE80ES-2RS | 80.000 | 79.985 | 120.000 | 119.985 | 55.00 | 54.85 | 45.00 | 44.60 | 88 | 1.0 | 1.0 | 6 | 2,000 | 2,310 | | | | GE90ES | GE90ES-2RS | ^90.000' | 89.980 | 130.000 | 129.982 | 60.00 | 59.80 | 50.00 | 49.50 | 98 | 1.0 | 1.0 | 5 | 2,440 | 2,750 | | | | GE100ES | GE100ES-2RS | 100.000 | 99.980 | 150.000 | 149.982 | 70.00 | 69.80 | 55.00 | 54.50 | 109 | 1.0 | 1.0 | 7 | 3,030 | 4,450 | | | | GE110ES | GE110ES-2RS | 110.000 | 109.980 | 160.000 | 159.975 | 70.00 | 69.80 | 55.00 | 54.50 | 120 | 1.0 | 1.0 | 6 | 3,270 | 4,820 | | | | GE120ES | GE120ES-2RS | 120.000 | 119.980 | 180.000 | 179.975 | 85.00 | 84.80 | 70.00 | 69.50 | 130 | 1.0 | 1.0 | 6 | 4,750 | 8,050 | | | | GE140ES | GE140ES-2RS | 140.000 | 139.975 | 210.000 | 209.970 | 90.00 | 89.75 | 70.00 | 69.40 | 150 | 1.0 | 1.0 | 7 | 5,355 | 11,020 | | | | GE160ES | GE160ES-2RS | 160.000 | 159.975 | 230.000 | 229.970 | 105.00 | 104.75 | 80.00 | 79.40 | 170 | 1.0 | 1.0 | 8 | 6,800 | 14,010 | | | | | | | | | | | | | | | | | | | | | | | | | | | □ | | | | | | | | | | | | | | * GE-12E only available without lube grooves and holes. RADIAL STATIC LOAD CAPACITY These loads are the maximum safe operating loads for stationary applications, and assumes a sufficiently rigid housing and shaft. The radial static load capacity provides a 1.5 factor of safety against static fracture. LUBRICATION Bearings should only be used as delivered for static applications. For dynamic applications, a lithium-based grease with EP and MOS2 additives is especially suitable. Lubricants of this type are recommended for operating temperatures between -40° F and + 250° F (-40° C and +121° C). For operating temperatures outside of this range, consult lubricant manufacturer. Bearings should be adequately lubricated before installation, and relubricated at suitable intervals based on application demands. Demand factors include load and load direction, misalignment angle and frequency, ambient temperature and contamination level. | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
