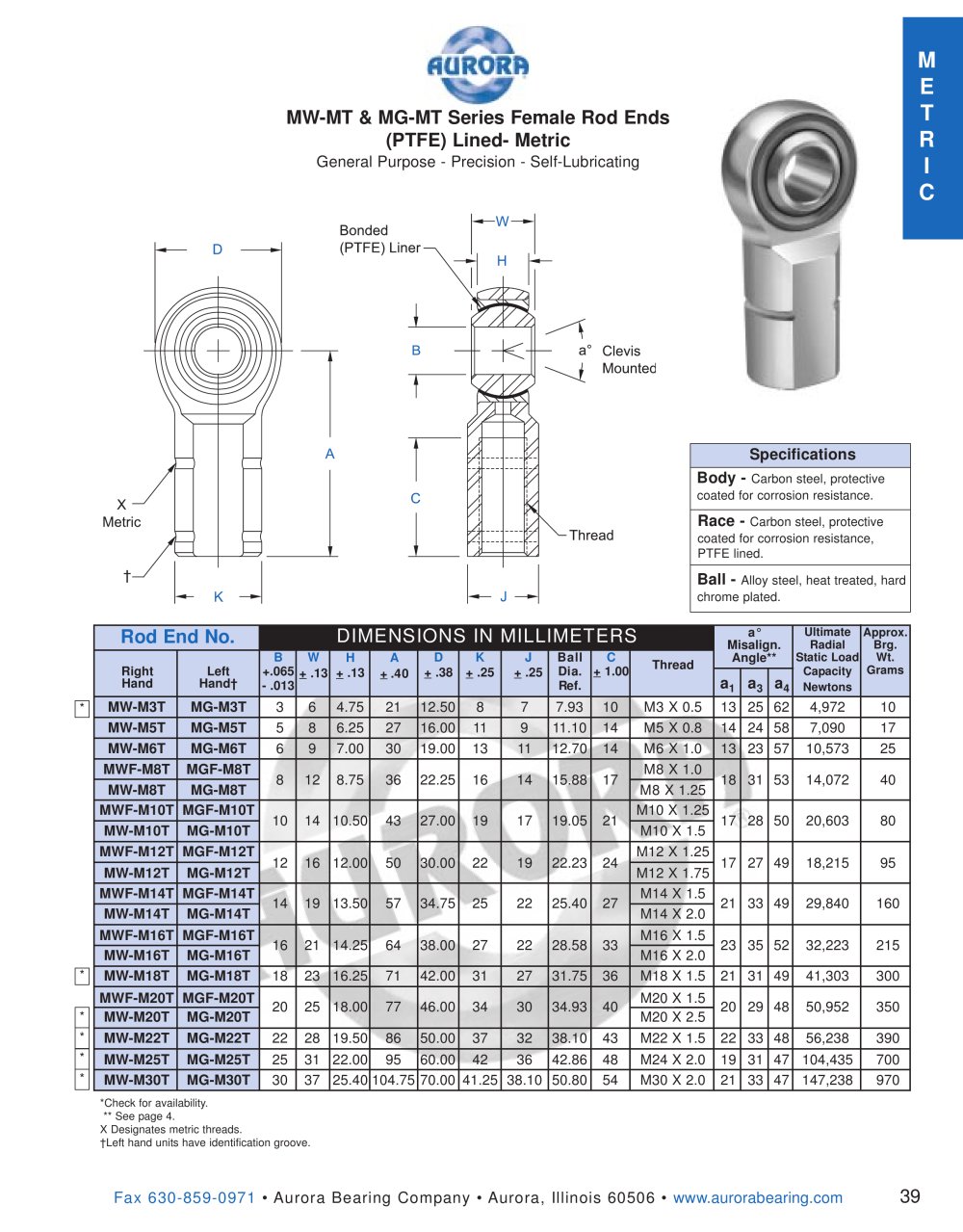

MW-MT & MG-MT Series Female Rod Ends (PTFE) Lined- Metric

General Purpose - Precision - Self-Lubricating

Bonded (PTFE) Liner

B —I--HC-f— a" Clevis

Mounted

Specifications

Body - Carbon steel, protective coated for corrosion resistance.

Race - Carbon steel, protective coated for corrosion resistance, PTFE lined.

Thread

Ball - Alloy steel, heat treated, hard chrome plated.


	Rod End No.		DIMENSIONS IN MILLIMETERS										a° Misalign. Angle**			Ultimate Radial Static Load Capacity Newtons	Approx. Brg. Wt. Grams
	Right Hand	Left Handt	B +.065 - .013	W + .13	H + .13	A + .40	D + .38	K + .25	J + .25	Ball Dia. Ref.	C + 1.00	Thread	a° Misalign. Angle**
	Right Hand	Left Handt	B +.065 - .013	W + .13	H + .13	A + .40	D + .38	K + .25	J + .25	Ball Dia. Ref.	C + 1.00	Thread	a₁	a₃	a₄
	MW-M3T	MG-M3T	3	6	4.75	21	12.50	8	7	7.93	10	M3 X 0.5	13	25	62	4,972	10
	MW-M5T	MG-M5T	5	8	6.25	27	16.00	11	9	11.10	14	M5 X 0.8	14	24	58	7,090	17
	MW-M6T	MG-M6T	6	9	7.00	30	19.00	13	11	12.70	14	M6 X1.0	13	23	57	10,573	25
	MWF-M8T	MGF-M8T	8	12	8.75	36	22.25	16	14	15.88	17	M8 X 1.0	18	31	53	14,072	40
	MW-M8T	MG-M8T	8	12	8.75	36	22.25	16	14	15.88	17	M8 X 1.25	18	31	53	14,072	40
	MWF-M10T	MGF-M10T	10	14	10.50	43	27.00	19	17	19.05	21	M10 X 1.25	17	28	50	20,603	80
	MW-M10T	MG-M10T	10	14	10.50	43	27.00	19	17	19.05	21	M10 X 1.5	17	28	50	20,603	80
	MWF-M12T	MGF-M12T		16	12.00	50	30.00	22	19	22.23	24	M12 X 1.25	17	27	49	18,215	95
	MW-M12T	MG-M12T		16	12.00	50	30.00	22	19	22.23	24	M12 X 1.75	17	27	49	18,215	95
	MWF-M14T	MGF-M14T	14	19	13.50	57	34.75	25	22	25.40	27	M14 X 1.5	21	33	49	29,840	160
	MW-M14T	MG-M14T	14	19	13.50	57	34.75	25	22	25.40	27	M14 X 2.0	21	33	49	29,840	160
	MWF-M16T	MGF-M16T	16	21	14.25	64	38.00	27	22	28.58	33	M16 X 1.5	23	35	52	32,223	215
	MW-M16T	MG-M16T	16	21	14.25	64	38.00	27	22	28.58	33	M16 X 2.0	23	35	52	32,223	215
	MW-M18T	MG-M18T	18	23	16.25	71	42.00	31	27	31.75	36	M18 X 1.5	21	31	49	41,303	300
	MWF-M20T	MGF-M20T	20	25	18.00	77	46.00	34	30	34.93	40	■ M20 X 1.5	20	29	48	50,952	350
*	MW-M20T	MG-M20T	20	25	18.00	77	46.00	34	30	34.93	40	M20 X 2.5	20	29	48	50,952	350
*	MW-M22T	MG-M22T	22	28	19.50	86	50.00	37	32	38.10	43	M22 X 1.5	22	33	48	56,238	390
*	MW-M25T	MG-M25T	25	31	22.00	95	60.00	42	36	42.86	48	M24 X 2.0	19	31	47	104,435	700
*	MW-M30T	MG-M30T	30	37	25.40	104.75	70.00	41.25	38.10	50.80	54	M30 X 2.0	21	33	47	147,238	970

"Check for availability. ** See page 4.

X Designates metric threads. tLeft hand units have Identification

groove.
