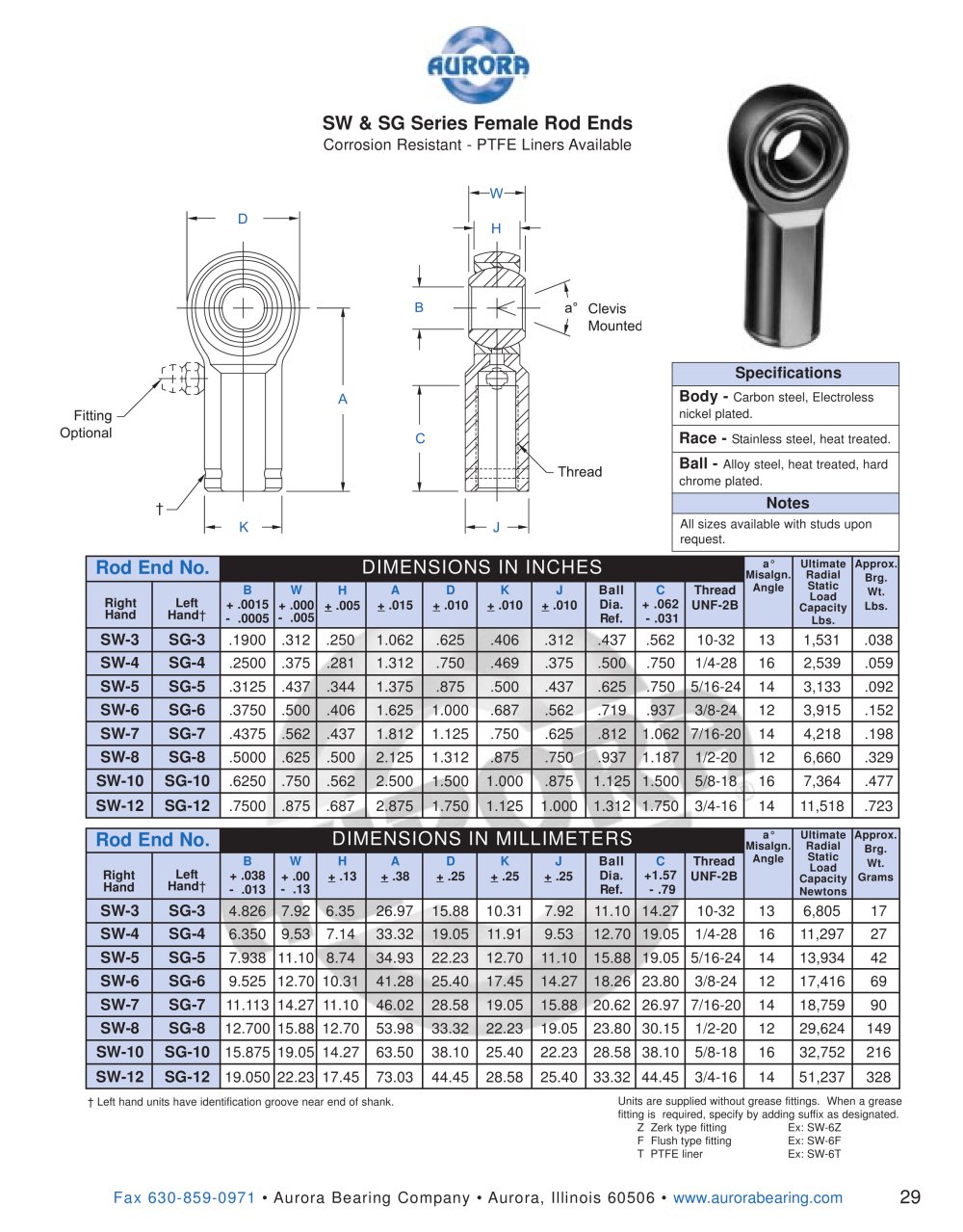

SW & SG Series Female Rod Ends

Corrosion Resistant - PTFE Liners Available

Clevis Mounted

Specifications

Body - Carbon steel, Electroless nickel plated.

Fitting Optional

Race - Stainless steel, heat treated.

Ball - Alloy steel, heat treated, hard chrome plated.

Thread

Notes

All sizes available with studs upon request.


Rod End No.		1			DIMENSION		S IN I	NCHES				a° Misalgn. Angle	Ultimate Radial Static Load Capacity Lbs.	Approx. Brg. Wt. Lbs.
Right Hand	Left Handf	B + .0015 - .0005	W + .000 - .005	H + .005	A + .015	D + .010	K + .010	j + .010	Ball Dia. Ref.	C + .062 - .031	Thread UNF-2B	a° Misalgn. Angle	Ultimate Radial Static Load Capacity Lbs.	Approx. Brg. Wt. Lbs.
SW-3	SG-3	.1900	.312	.250	1.062	.625	.406	.312	.437	.562	10-32	13	1,531	.038
SW-4	SG-4	.2500	.375	.281	1.312	.750	.469	.375	.500	.750	1/4-28	16	2,539	.059
SW-5	SG-5	.3125	.437	.344	1.375	.875	.500	.437	.625	.750	5/16-24	14	3,133	.092
SW-6	SG-6	.3750	.500	.406	1.625	1.000	.687	.562	.719	.937	3/8-24	12	3,915	.152
SW-7	SG-7	.4375	.562	.437	1.812	1.125	.750	.625	.812	1.062	7/16-20	14	4,218	.198
SW-8	SG-8	.5000	.625	.500₁	2.125	1.312	.875	.750	.937	1.187	1/2-20	12	6,660	.329
SW-10	SG-10	.6250	.750	.562	2.500	1.500	1.000	.875	1.125	1.500	5 8-18	16	7,364	.477
SW-12	SG-12	.7500]	.875	.687	2.875	1.750	1.125	1.000	1.312	1.750	3/4-16	14	11,518	.723


Rod End No.		DIMENSh				ONS IN MIL		LIMETERS				a° Misalgn. Angle	Ultimate Radial Static Load Capacity Newtons	Approx. Brg. Wt. Grams
Right Hand	Left Handf	B + .038 - .013	W + .00 - .13	H + .13	A + .38	D + .25	K + .25	j + .25	Ball Dia. Ref.	C +1.57 - .79	Thread UNF-2B	a° Misalgn. Angle	Ultimate Radial Static Load Capacity Newtons	Approx. Brg. Wt. Grams
SW-3	SG-3	4.826	7.92	6.35	26.97	15.88	10.31	7.92	11.10	14.27	10-32	13	6,805	17
SW-4	SG-4	6.350	9.53	7.14	33.32	19.05	11.91	9.53	12.70	19.05	1/4-28	16	11,297	27
SW-5	SG-5	7.938	11.10	8.74	34.93	22.23	12.70	11.10	15.88	19.05	5/16-24	14	13,934	42
SW-6	SG-6	9.525	12.70	10.31	41.28	25.40	17.45	14.27	18.26	23.80	3/8-24	12	17,416	69
SW-7	SG-7	11.113	14.27	11.10	46.02	28.58	19.05	15.88	20.62	26.97	7/16-20	14	18,759	90
SW-8	SG-8	12.700	15.88	12.70	53.98	33.32	22.23	19.05	23.80	30.15	1/2-20	12	29,624	149
SW-10	SG-10	15.875	19.05	14.27	63.50	38.10	25.40	22.23	28.58	38.10	5/8-18	16	32,752	216
SW-12	SG-12	19.050	22.23	17.45	73.03	44.45	28.58	25.40	33.32	44.45	3/4-16	14	51,237	328

Units are supplied without fitting is required, specify Z Zerk type fitting F Flush type fitting T PTFE liner

grease fittings. When a grease by adding suffix as designated.

Ex: SW-6Z

Ex: SW-6F

Ex: SW-6T

t Left hand units have identification groove near end of shank.
