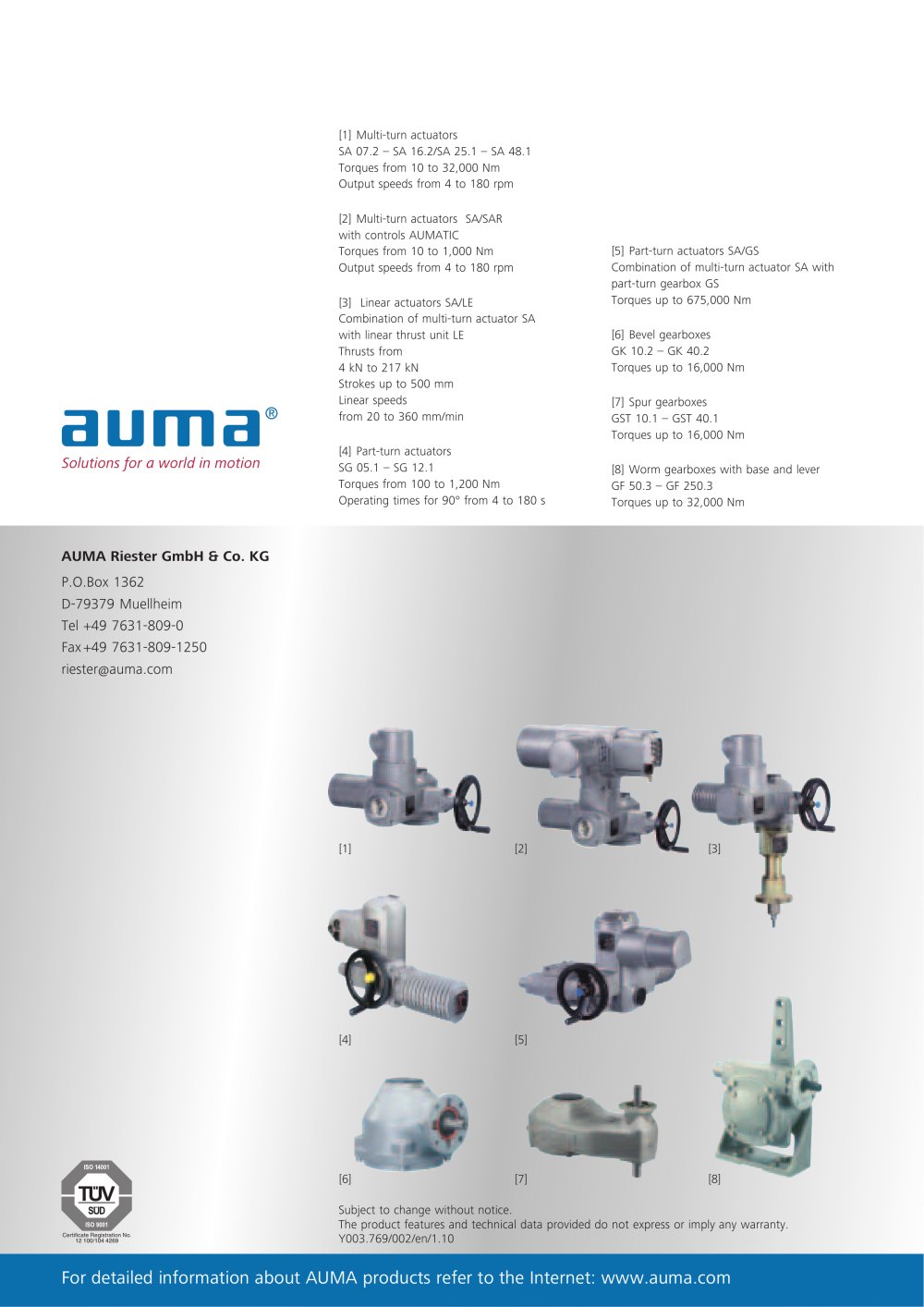

AUMA Riester GmbH & Co. KG [1] [2] [3] [4] [5] [6] [7] [8] [1] Multi-turn actuators SA 07.2 – SA 16.2/SA 25.1 – SA 48.1 Torques from 10 to 32,000 Nm Output speeds from 4 to 180 rpm [2] Multi-turn actuators SA/SAR with controls AUMATIC Torques from 10 to 1,000 Nm Output speeds from 4 to 180 rpm [3] Linear actuators SA/LE Combination of multi-turn actuator SA with linear thrust unit LE Thrusts from 4 kN to 217 kN Strokes up to 500 mm Linear speeds from 20 to 360 mm/min [4] Part-turn actuators SG 05.1 – SG 12.1 Torques from 100 to 1,200 Nm Operating times for 90° from 4 to 180 s [5] Part-turn actuators SA/GS Combination of multi-turn actuator SA with part-turn gearbox GS Torques up to 675,000 Nm [6] Bevel gearboxes GK 10.2 – GK 40.2 Torques up to 16,000 Nm [7] Spur gearboxes GST 10.1 – GST 40.1 Torques up to 16,000 Nm [8] Worm gearboxes with base and lever GF 50.3 – GF 250.3 Torques up to 32,000 Nm Subject to change without notice. The product features and technical data provided do not express or imply any warranty. Y003.769/002/en/1.10 Certificate Registration No. 12 100/104 4269 P.O.Box 1362 D-79379 Muellheim Tel +49 7631-809-0 Fax +49 7631-809-1250 riester@auma.com For detailed information about AUMA products refer to the Internet: www.auma.com
