Zertifikat-Registrier-Nr.
12 100/104 4269

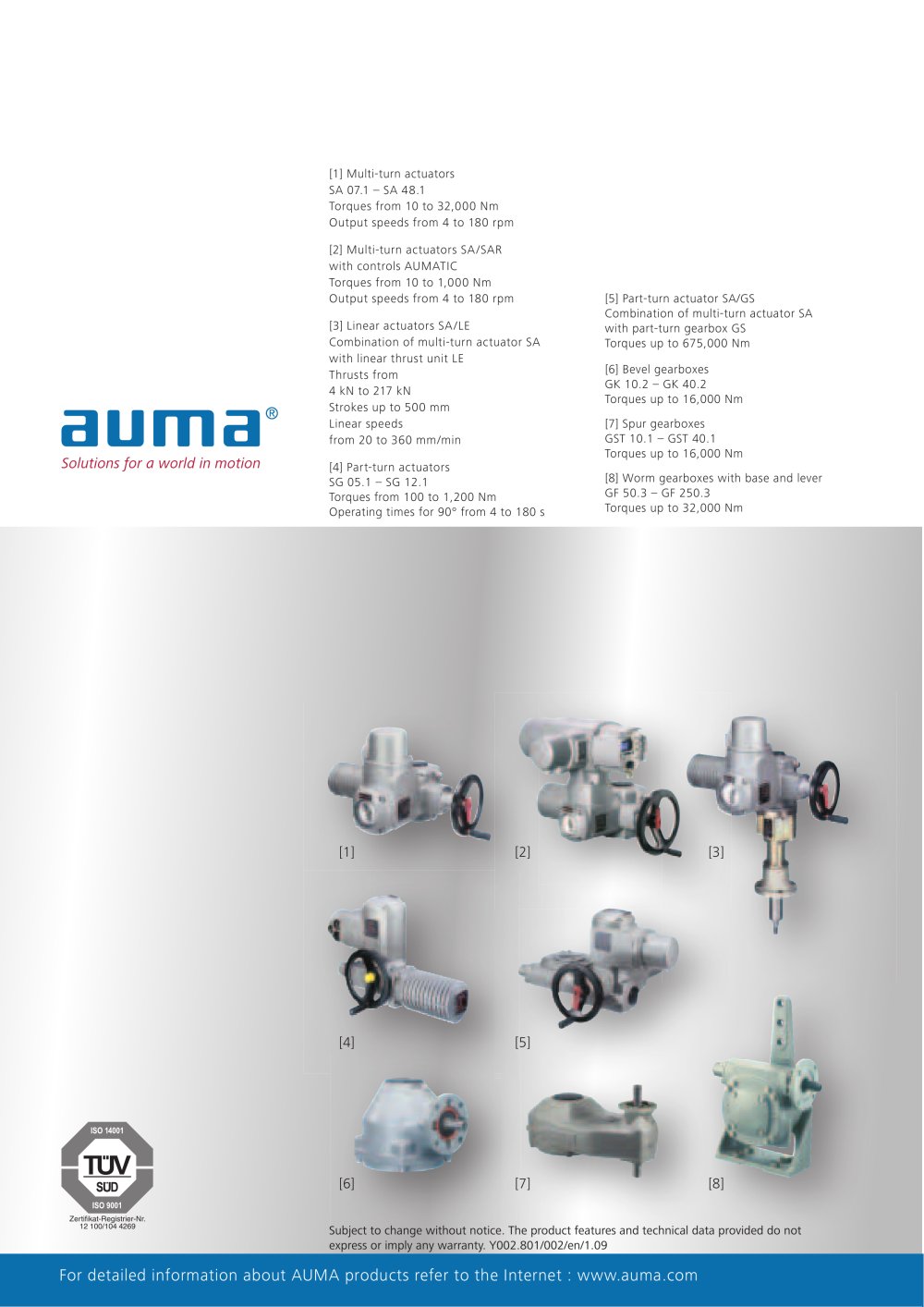

[1] Multi-turn actuators
SA 07.1 – SA 48.1
Torques from 10 to 32,000 Nm
Output speeds from 4 to 180 rpm
[2] Multi-turn actuators SA/SAR
with controls AUMATIC
Torques from 10 to 1,000 Nm
Output speeds from 4 to 180 rpm
[3] Linear actuators SA/LE
Combination of
multi-turn actuator SA
with linear thrust unit LE
Thrusts from
4 kN to 217 kN
Strokes up to 500 mm
Linear speeds
from 20 to 360 mm/min
[4] Part-turn actuators
SG 05.1 – SG 12.1
Torques from 100 to 1,200 Nm
Operating times for 90° from 4 to 180 s
[5] Part-turn actuator SA/GS
Combination of
multi-turn actuator SA
with part-turn gearbox GS
Torques up to 675,000 Nm
[6] Bevel gearboxes
GK 10.2 – GK 40.2
Torques up to 16,000 Nm
[7] Spur gearboxes
GST 10.1 – GST 40.1
Torques up to 16,000 Nm
[8] Worm gearboxes with base and lever
GF 50.3 – GF 250.3
Torques up to 32,000 Nm
Subject to change without notice. The product features and technical data provided do not
express or imply any warranty. Y002.801/002/en/1.09
For detailed information about AUMA products refer to the Internet : www.auma.com
