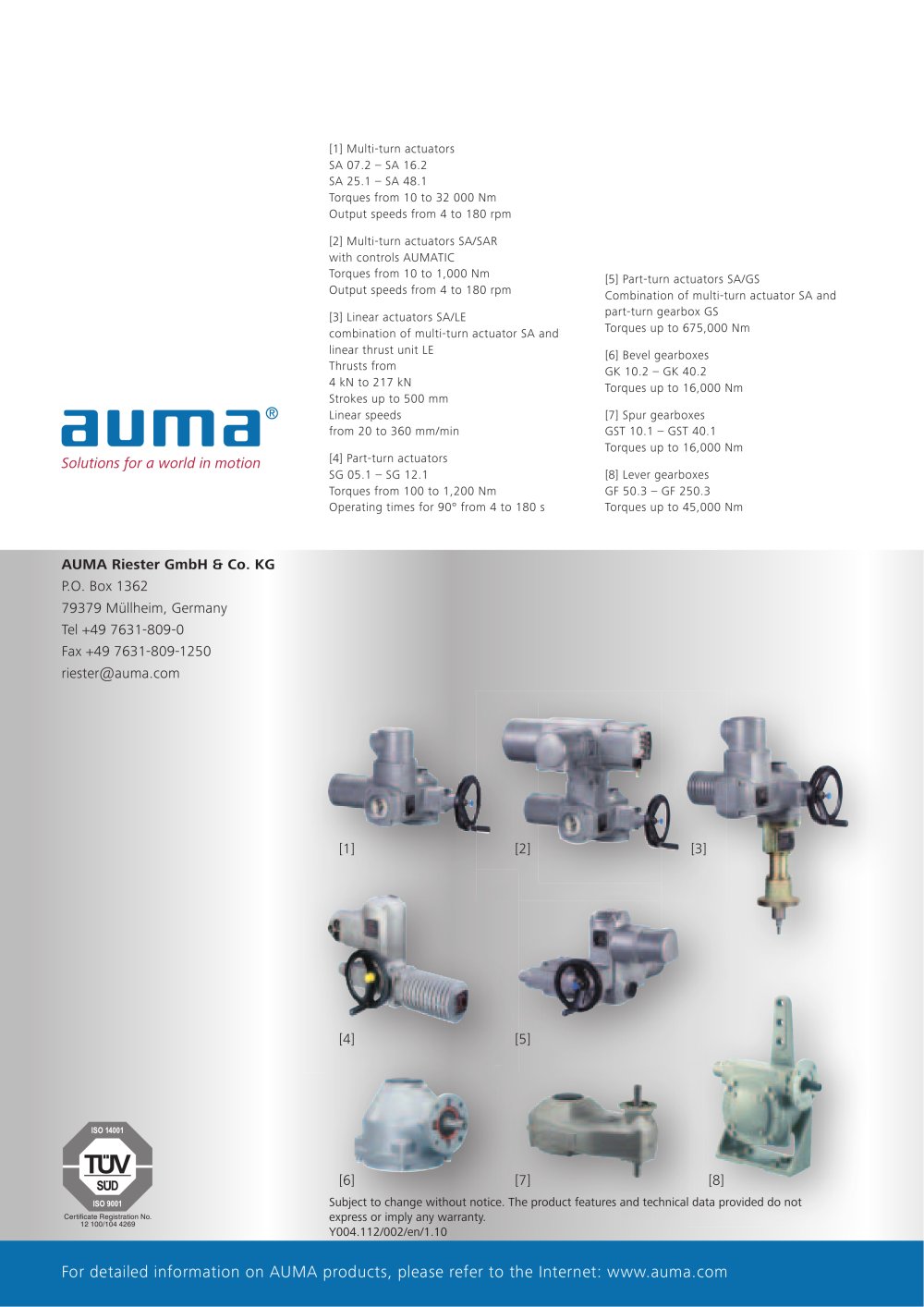

auma Solutions for a wotid in motion [1] MulUturn actuators SA 07.2-SA 16.2 SA 25.1 - SA 48.1 Torques from 10 10 32 000 Nm Ouï put speeds from 4 to 180 rpm [2| Multiturn actuators SA/SAR mth controls AUMATIC Torques from 10 to 1,000 Nm Output speeds from 4 to 180 rpm |3) i Inear actuators SA/IE :ombinat»on of multi-turn actuator SA and Imear thrust unit t£ Thrusts from *kN to217kN Strokes up to SO0 mm L«near speeds from 20 to 360 mm/mm [4] PanMum actuators SG 05.1 -SG 12.1 Torques from 100 to 1,200 Nm Dperating limes for 90* from 4 to 180 s (S) Part-turn actuators SA/GS Combination of mulli-turn actuator SA and parvtum gearbox GS Torques up to 6/b,000 Nm 61 Bevef gearboxes GK 10.2 -GK40.2 Torques up to 16,000 Nm [7| Spur gearboxes GST 10.1 -GST 40.1 Torques up to 16.000 Nm [B] lever gearboxes GF 50.3 - GF 2503 Torques up to 45,000 Nm AUMA Riester GmbH ô Co. KG P.O. Box 1362 79379 Mûllhelm, Germany Tel+49 7631-809-0 Fax +49 7631-809-1250 riester@auma.com 31 1 [7| Subject to change wtfhout notice. The product features and lechnical data provided do not express or impfy any warrant/. For detailed information on AUMA products, please refer to the Internet: www.auma.com
