| | | INANOPOSmONING Hsfs eh oof | | |
| | | |
| | | Issued 2008/9 | | |
| | | |

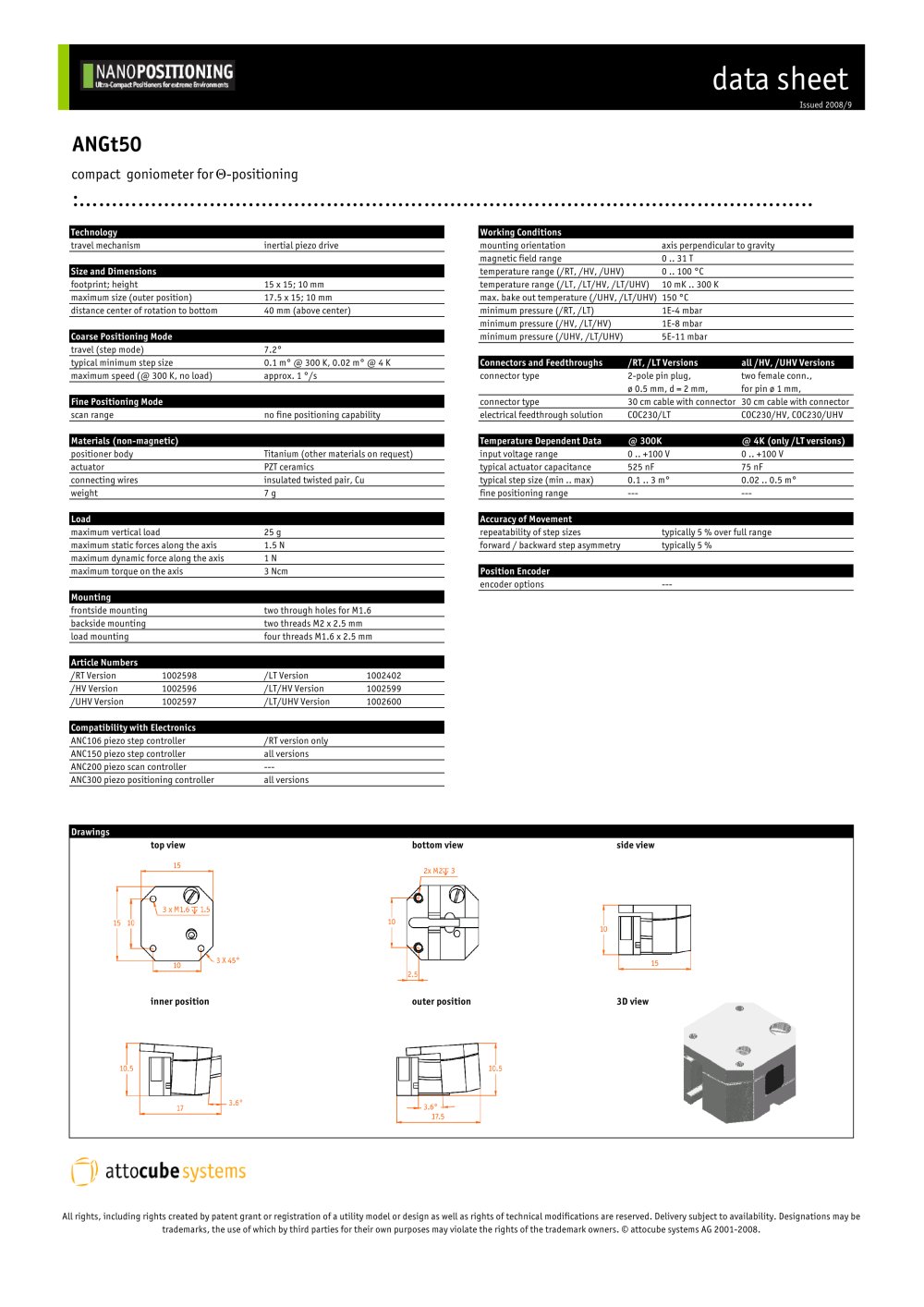

| | | ANGt50 compact goniometerfor©-positioning | | |
| | | |
| | | | | | | | | | | | | Technology | | Working Conditions | | | | travel mechanism | inertial piezo drive | mounting orientation axis perpendicularto gravity | | | | | | magneticfield range 0..31T | | | | | Size and Dimensions | temperature range (/RT, /HV, /UHV) 0 .. 100 °C | | | | | footprint; height | 15x15; 10 mm | temperature range (/LT, /LT/HV, /LT/UHV) 10 mK .. 300 K | | | | | maximum size (outer position) | 17.5xl5;10mm | max.bakeouttemperature(/UHV,/LT/UHV) 150 °C | | | | | distance centerof rotation to bottom | 40 mm (above center) | minimum pressure (/RT, /LT) 1E-4 mbar | | | | | | | minimum pressure (/HV, /LT/HV) 1E-8 mbar | | | | | Coarse Positioning Mode | minimum pressure(/UHV,/LT/UHV) 5E-11 mbar | | | | | travel (step mode) | 7.2° | | | | | | typical minimum step size | 0.1m°@300 K,0.02m°@4K | Connectors and Feedthroughs /RT, /LTVersions | all/HV,/UHVVersions | | | | maximum speed (@ 300 K, no load) | approx. 1 °/s | connectortype 2-pole pin plug, | two female conn., | | | | | | 0 0.5 mm, d = 2 mm, | for pin 0 1 mm, | | | | Fine Positioning Mode | connectortype 30 cm cable with connector | 30 cm cable with connector | | | | scan range | no fine positioning capability | electricalfeedthrough solution C0C230/LT | COC230/HV,COC230/UHV | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | Materials (non-magnetic) | | ^^^1 Temperature Dependent Data | @300K | @ 4K (only/LTversions) | | | | positionerbody | Titanium (other materials on request) | input voltage range | 0..+100V | 0..+100V | | | | actuator | PZT ceramics | typicalactuator capacitance | 525 nF | 75 nF | | | | connecting wires | insulated twisted pair, Cu | typicalstep size (min .. max) | 0.1 ..3m° | 0.02 0.5m° | | | | weight | 7q | fine positioning range | — | --- | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | Load | | Accuracy of Movement | | | | maximum vertical load | | repeatability ofstep sizes | typically 5 % over full range | | | | maximum staticforces along the axis | 1.5N | forward / backward step asymmetry | typically 5 % | | | | maximum dynamic force along the axis | 1 N | | | | | | maximum torque on the axis | 3Ncm | Position Encoder | | | | | | encoder options | — | | | | Mounting | | | | | | frontside mounting | two through holes for M1.6 | | | | | | backside mounting | two threads M2x2.5mm | | | | | | load mounting | fourthreads M1.6 x2.5mm | | | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | ArticleNumbers | | | | /RT Version | 1002598 | /LTVersion | 1002402 | | | | /HVVersion | 1002596 | /LT/HVVersion | 1002599 | | | | /UHVVersion | 1002597 | /LT/UHVVersion | 1002600 | | | | | | | | | | | |
| | | | | | | | | | | | | | CompatibilitywithElectronics | | | | | /RTversion only | | | | | allversions | | | | | — | | | | | allversions | | | | | | | | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | | | | |
