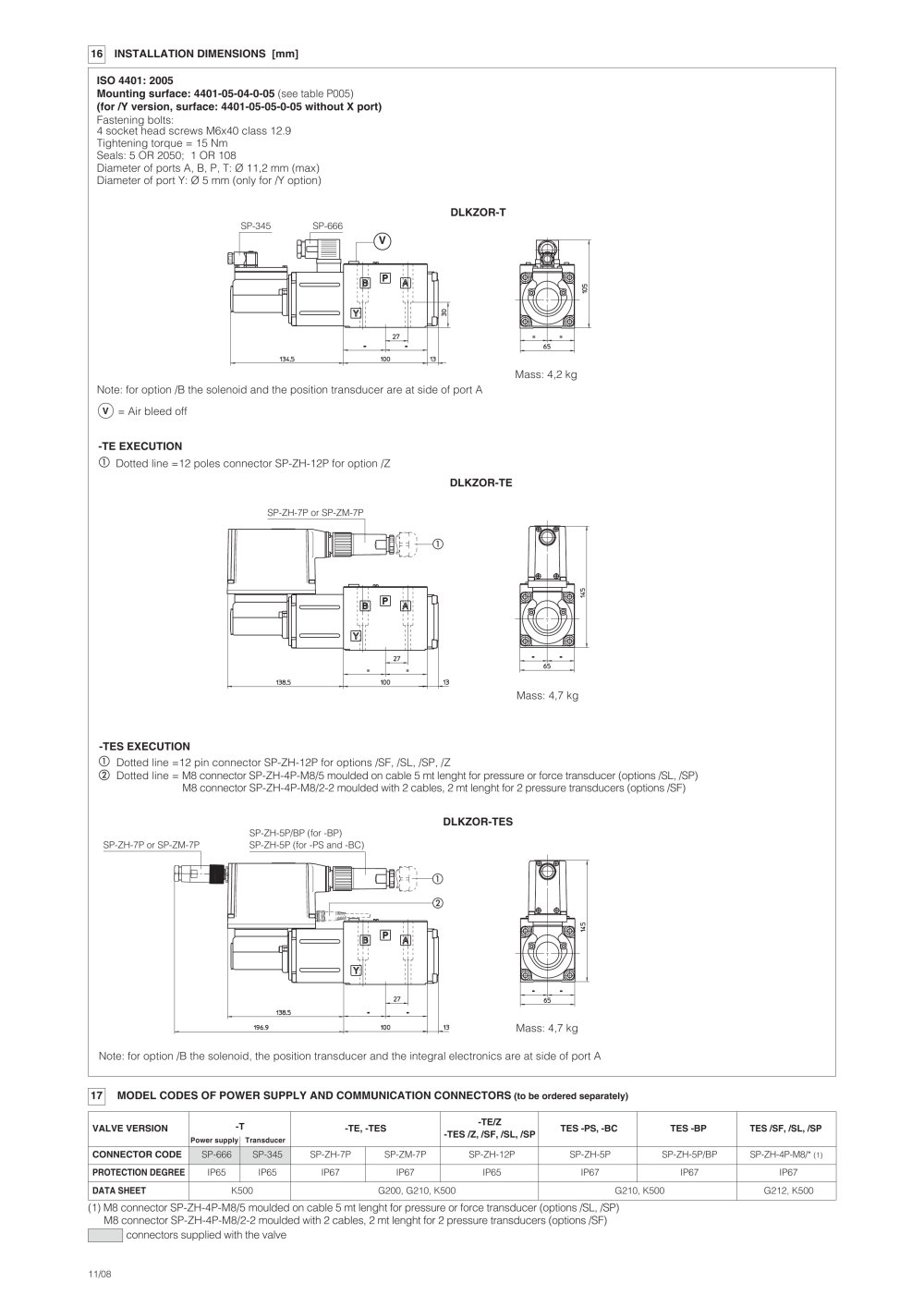

16 INSTALLATION DIMENSIONS [mm]

ISO 4401: 2005

Mounting surface: 4401-05-04-0-05 (see table P005) (for /Y version, surface: 4401-05-05-0-05 without X port)

Fastening bolts:

4 socket head screws M6x40 class 12.9

Tightening torque = 15 Nm

Seals: 5 OR 2050; 1 OR 108

Diameter of ports A, B, P, T: 0 11,2 mm (max)

Diameter of port Y: 0 5 mm (only for /Y option)

DLKZOR-T

SP-345

SP-666

1-1

Mass: 4,2 kg

Note: for option /B the solenoid and the position transducer are at side of port A ® = Air bleed off

-TE EXECUTION

DLKZOR-TE

SP-ZH-7P or SP-ZM-7P

Mass: 4,7 kg

-TES EXECUTION

@ Dotted line = M8 connector SP-ZH-4P-M8/5 moulded on cable 5 mt lenght for pressure or force transducer (options /SL, /SP) M8 connector SP-ZH-4P-M8/2-2 moulded with 2 cables, 2 mt lenght for 2 pressure transducers (options /SF)

DLKZOR-TES

SP-ZH-7P or SP-ZM-7P

SP-ZH-5P/BP (for -BP) SP-ZH-5P (for -PS and -BC)

rii E

Mass: 4,7 kg

Note: for option /B the solenoid, the position transducer and the integral electronics are at side of port A

[TT] MODEL CODES OF POWER SUPPLY AND COMMUNICATION CONNECTORS (to be ordered separately)


VALVE VERSION	Power supply	T Transducer	-TE, -TES		-TE/Z -TES /Z, /SF, /SL, /SP	TES -PS, -BC	TES -BP	TES /SF, /SL, /SP
CONNECTOR CODE	SP-666	SP-345	SP-ZH-7P	SP-ZM-7P	SP-ZH-12P	SP-ZH-5P	SP-ZH-5P/BP	SP-ZH-4P-M8/* (1)
PROTECTION DEGREE	IP65	IP65	IP67	IP67	IP65	IP67	IP67	IP67
DATA SHEET	K500		G200, G210, K500			G210, K500		G212, K500

(1) M8 connector SP-ZH-4P-M8/5 moulded on cable 5 mt lenght for pressure or force transducer (options /SL, /SP)

M8 connector SP-ZH-4P-M8/2-2 moulded with 2 cables, 2 mt lenght for 2 pressure transducers (options /SF) I I connectors supplied with the valve

11/08
