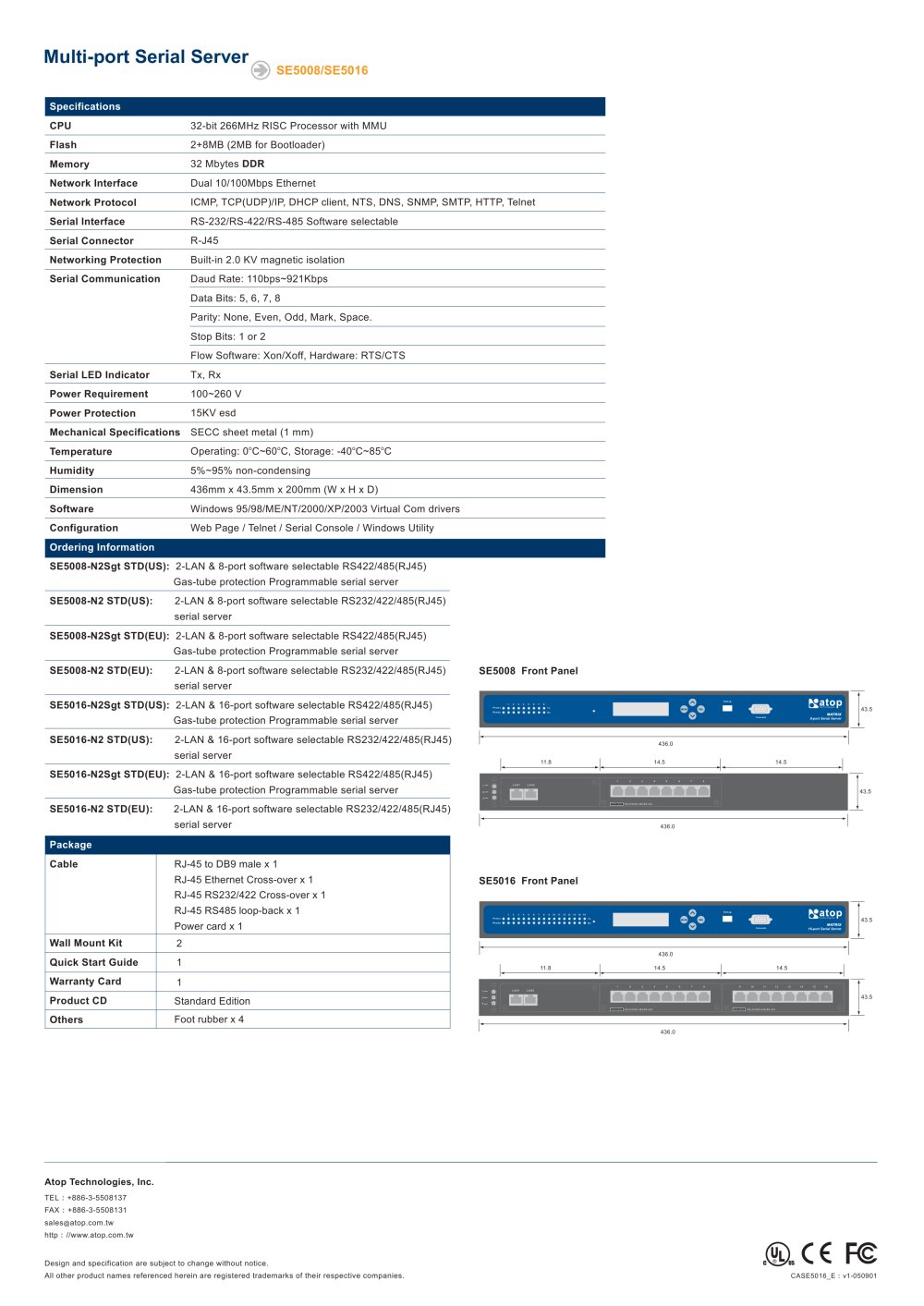

Multi-port Serial Server
№) SE5008/SE5016
Specifications
CPU
32-bit 266MHz RISC Processor with MMU
Flash
2+8MB (2MB for Bootloader)
Memory
32 Mbytes DDR
Network Interface
Dual 10/100Mbps Ethernet
Network Protocol
ICMP, TCP(UDP)/IP, DHCP client, NTS, DNS, SNMP, SMTP, HTTP, Telnet
Serial Interface
RS-232/RS-422/RS-485 Software selectable
Serial Connector
R-J45
Networking Protection
Built-in 2.0 KV magnetic isolation
Serial Communication
Daud Rate: 110bps~921Kbps
Data Bits: 5, 6, 7, 8
Parity: None, Even, Odd, Mark, Space.
Stop Bits: 1 or 2
Flow Software: Xon/Xoff, Hardware: RTS/CTS
Serial LED Indicator
Tx, Rx
Power Requirement
100-260V
Power Protection
15KV esd
Mechanical Specifications
SECC sheet metal (1 mm)
Temperature
Operating: 0oC-60oC, Storage: -40oC-85oC
Humidity
5%~95% non-condensing
Dimension
436mm x 43.5mm x 200mm (W x H x D)
Software
Windows 95/98/ME/NT/2000/XP/2003 Virtual Com drivers
Configuration
Web Page / Telnet / Serial Console / Windows Utility
Ordering Information
SE5008-N2Sgt STD(US):
2-LAN & 8-port software selectable RS422/485(RJ45) Gas-tube protection Programmable serial server
SE5008-N2 STD(US):
2-LAN & 8-port software selectable RS232/422/485(RJ45) serial server
SE5008-N2Sgt STD(EU):
2-LAN & 8-port software selectable RS422/485(RJ45) Gas-tube protection Programmable serial server
SE5008-N2 STD(EU):
2-LAN & 8-port software selectable RS232/422/485(RJ45) serial server
SE5008 Front Panel
SE5016-N2Sgt STD(US):
2-LAN & 16-port software selectable RS422/485(RJ45) Gas-tube protection Programmable serial server
43.5
SE5016-N2 STD(US):
2-LAN & 16-port software selectable RS232/422/485(RJ45) serial server
436.0 14.5
14.5
SE5016-N2Sgt STD(EU):
2-LAN & 16-port software selectable RS422/485(RJ45) Gas-tube protection Programmable serial server
43.5
SE5016-N2 STD(EU):
2-LAN & 16-port software selectable RS232/422/485(RJ45) serial server
436.0
Package
Cable
RJ-45 to DB9 male x 1 RJ-45 Ethernet Cross-over x 1 RJ-45 RS232/422 Cross-over x 1 RJ-45 RS485 loop-back x 1 Power card x 1
Wall Mount Kit
2
Quick Start Guide
1
Warranty Card
1
Product CD
Standard Edition
Others
Foot rubber x 4
SE5016 Front Panel
Atop Technologies, Inc.
TEL : +886-3-5508137 FAX : +886-3-5508131 sales@atop.com.tw http : //www.atop.com.tw
i(BC€ F@
Design and specification are subject to change without notice.
All other product names referenced herein are registered trademarks of their respective companies. CASE5016E : v1-050901
