AT77C102B

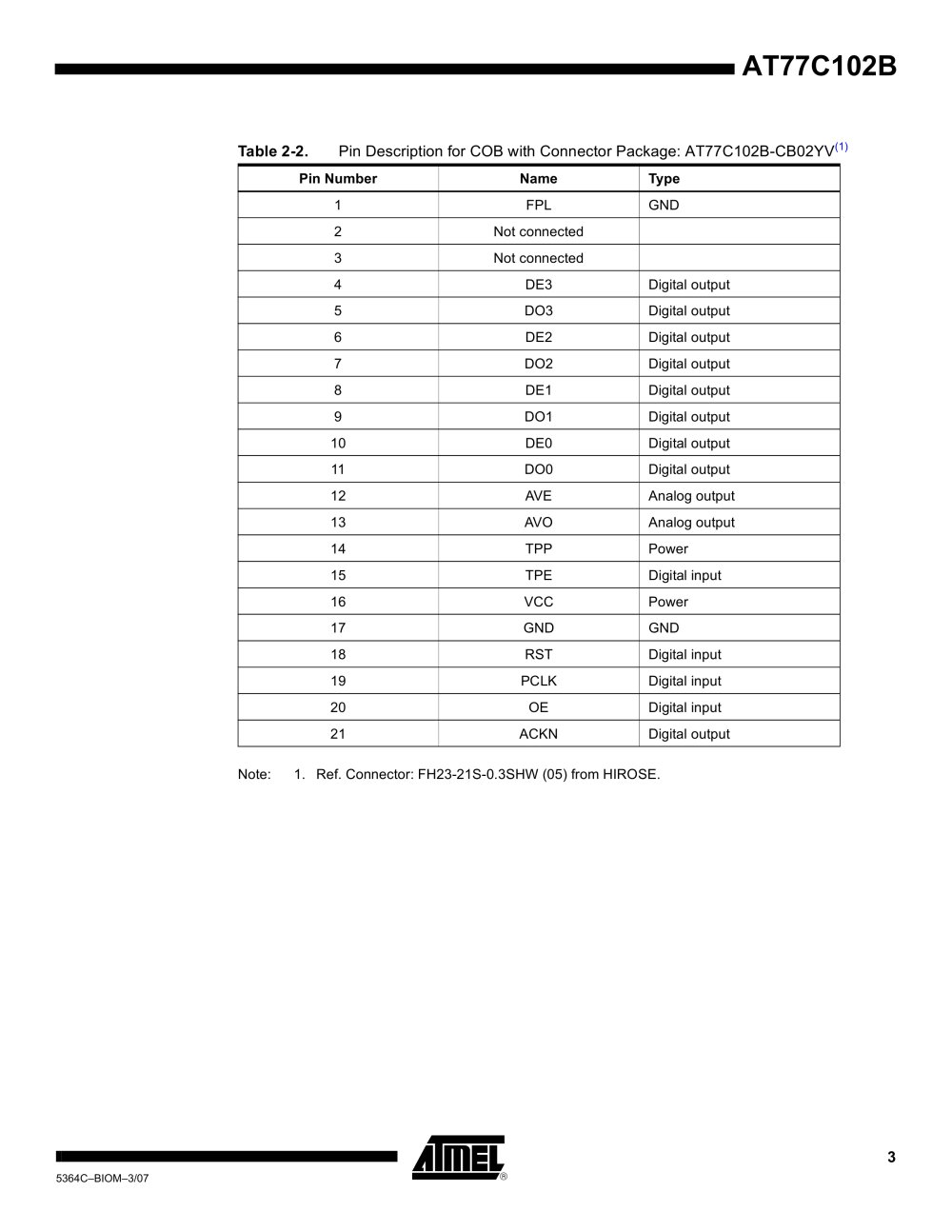

Table 2-2. Pin Description for COB with Connector Package: AT77C102B-CB02YV
(1) Pin NumberNameType 1FPLGND2Not connected3Not connected4DE3Digital output
5DO3Digital output6DE2Digital output7DO2Digital output
8DE1Digital output9DO1Digital output10DE0Digital output11DO0Digital output12AVEAnalog output13AVOAnalog output14TPPPower15TPEDigital input16VCCPower
17GNDGND18RSTDigital input19PCLKDigital input20OEDigital input21ACKNDigital output Note:1.Ref. Connector: FH23-21S-0.3SHW (05) from HIROSE.
