AT77C102B

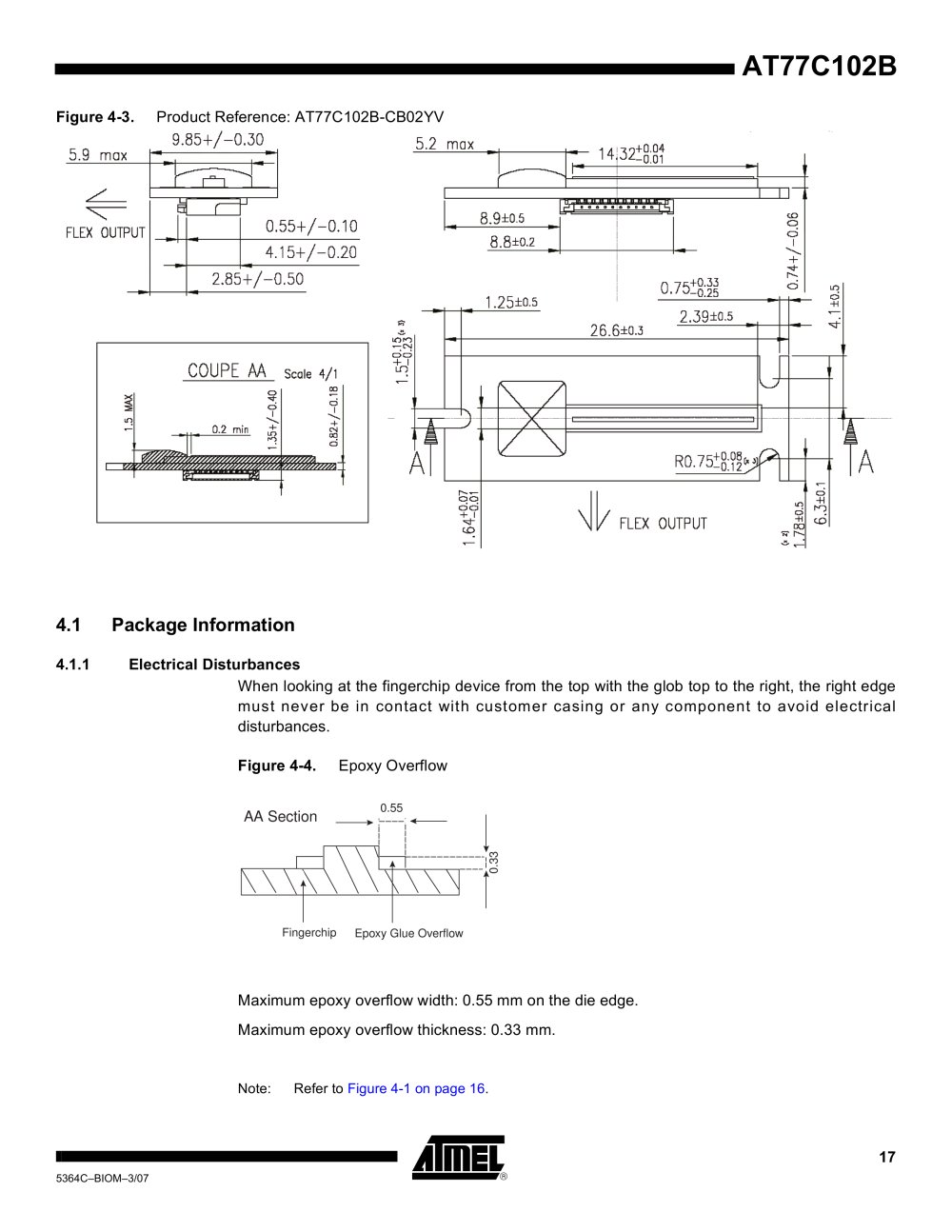

Figure 4-3. Product Reference: AT77C102B-CB02YV
4.1Package Information
4.1.1Electrical Disturbances When looking at the fingerchip device from the top with the glob top to the right, the right edge must never be in contact with customer casing or any component to avoid electrical disturbances. Figure 4-4. Epoxy Overflow
Maximum epoxy overflow width: 0.55 mm on the die edge.Maximum epoxy overflow thickness: 0.33 mm.
AA Section 0.55 0.33 FingerchipEpoxy Glue Overflow Note:Refer to Figure 4-1 on page 16. 17
5364C–BIOM–3/07
