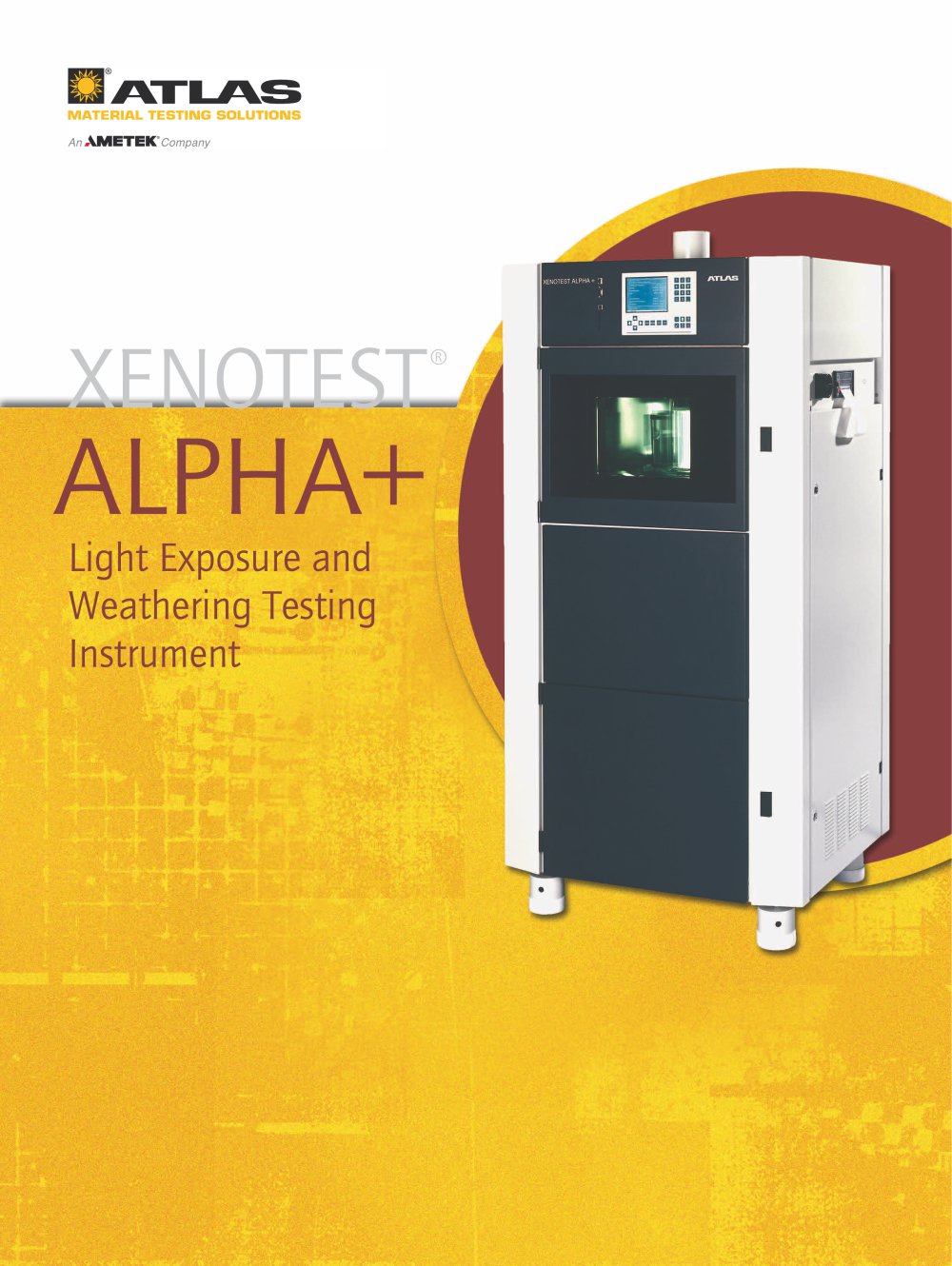

Xenotest Alpha+ Brochure - Atlas Material Testing Technology - #1

Text version of the page

Utility Requirements Electrical 230 V ±10 %, 50/60 Hz (1P,N,PE) AC or (2P,PE) AC | CEE (32 A, 3-pin. 6h) Amperage 16 A Maximum power consumption approx. 5 kVA Cooling air requirement for xenon lamp 200 m3/h Cooling air requirement for test chamber 100 m3/h Water consumption for spray system 0.7 l/min Water consumption for humidity max. 0.033 l/min Sample Capacity Sample holders 11* Sample dimensions L x W (max.) 135 x 46 mm Exposure Area 1320 cm2 *without additional sensor (22 samples during turning mode) Physical Specifications Width x Depth x Height 900 x 780 x 1800 mm Weight approx. 280 kg Atlas Material Testing Technology GmbH (p) +49.60 51.707.140 (f) +49.60 51.707.149 Atlas Material Testing Technology LLC (p) +1.773.327.4520 (f) +1.773.327.5787 www.atlas-mts.com We reserve the right to make technical changes to the instruments and systems. ©2006 Atlas Material Testing Technology GmbH All rights reserved. Printed in Germany. BV Pub. No. 56352317 US Pub. No. 2025 Xenotest® Alpha+ Features Air-cooled xenon lamp providing a maximum of 2.2 KW 1 XENOSENSIV sensor to measure and control irradiance from 300 to 400 nm and the Black Standard Temperature at sample level 1 Temperature control selectable either by test chamber temperature (up to 70° C) or both test chamber temperature and Black Standard Temperature simultaneously (up to 130° C) 1 Air volume control to influence the temperature difference between test chamber and Black Standard Temperature 1 Ultrasonic humidification system 1 Specimen spray system 1 Microprocessor control 1 Parameter check 1 User guided operation by color graphic display 1 Touch screen and I/O board using optical fiber waveguide technology 1 Data output via memory card or RS232 / USB interface 1 Instrument-internal memory chip to store instrument data 1 Thermoprinter 1 XenoCal BST Black Standard Thermometer 1 XenoCal WST White Standard Thermometer 1 XenoCal BB 300–400 Irradiance Sensor 1 XenoCal WB 300–800 Irradiance Sensor 1 XenoCal NB 340 Irradiance Sensor 1 1Standard 1Optional Xenotest® Alpha+ Specifications Irradiance range: 300–400 nm at sample level (in W/m2) Filter system Turning Mode Non-turning Mode XENOCHROME 300 21–114 W/m2 40–220 W/m2 XENOCHROME 320 21–93 W/m2 40–180 W/m2 10 window glass 21–57 W/m2 40–110 W/m2 Absorption filter lantern with: 6 IR +1 UV 21–72 W/m2 40–140 W/m2 7 IR segments 21–72 W/m2 40–140 W/m2 4 IR +3 window segments 21–72 W/m2 40–140 W/m2 Daylight extended IR 21–65 W/m2 40–125 W/m2 IR absorption filter system 16H 21–72 W/m2 40–140 W/m2 Temperature and Humidity Range Test chamber temperature: 30° C to 70° C* Black Standard Temperature: 40° C to 130° C* Relative humidity: 10 to 95%* *Depending on the selected filter combination and irradiance as well as the ambient laboratory conditions Experience. The Atlas Difference. Light Exposure and Weathering Testing Instrument XENOTEST® ALPHA+
