GA 200-500 / GA 315 VSD / GR 110-200 Atlas Copco Oil-injected rotary screw compressors 50-60 Hz - 16 Pages

4
4

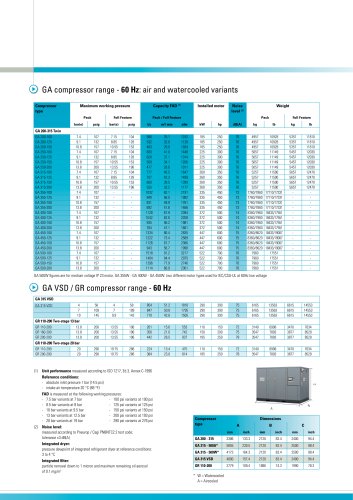

GA compressor range - 60 Hz: air and watercooled variants
GA 500W figures are for medium voltage IP 23 motor. GA 355W - GA 400W - GA 450W: two different motor types used for IEC/CSA-UL at 60Hz low voltage
Compressor
type
Maximum working pressure Capacity FAD (1) Installed motor Noise
level (2)
Weight
Pack Full Feature Pack / Full Feature Pack Full Feature
bar(e) psig bar(e) psig l/s m3/ min cfm kW hp dB(A) kg lb kg lb
GA 200-315 Twin
GA 200-100 7.4 107 7.15 104 586 35.1 1242 185 250 76 4957 10928 5357 11810
GA 200-125 9.1 132 8.85 128 532 32.0 1128 185 250 76 4957 10928 5357 11810
GA 200-150 10.8 157 10.55 153 483 29.0 1024 185 250 76 4957 10928 5357 11810
GA 250-100 7.4 107 7.15 104 683 41.0 1448 225 300 76 5057 11149 5457 12030
GA 250-125 9.1 132 8.85 128 620 37.1 1314 225 300 76 5057 11149 5457 12030
GA 250-150 10.8 157 10.55 153 569 34.1 1206 225 300 76 5057 11149 5457 12030
GA 250-200 13.8 200 13.55 196 477 28.6 1011 225 300 76 5057 11149 5457 12030
GA 315-100 7.4 107 7.15 104 777 46.5 1647 260 350 76 5257 11590 5657 12470
GA 315-125 9.1 132 8.85 128 707 42.3 1499 260 350 76 5257 11590 5657 12470
GA 315-150 10.8 157 10.55 153 660 39.5 1399 260 350 76 5257 11590 5657 12470
GA 315-200 13.8 200 13.55 196 555 33.2 1177 260 350 76 5257 11590 5657 12470
GA 355-100 7.4 107 - - 1032 62.1 2191 335 450 73 7760/7860 17110/17331 - -
GA 355-125 9.1 132 - - 940 56.5 1992 335 450 73 7760/7860 17110/17331 - -
GA 355-150 10.8 157 - - 831 49.9 1761 335 450 73 7760/7860 17110/17331 - -
GA 355-200 13.8 200 - - 692 41.6 1466 335 450 73 7760/7860 17110/17331 - -
GA 400-100 7.4 107 - - 1128 67.9 2394 372 500 74 8360/7960 18433/17551 - -
GA 400-125 9.1 132 - - 1042 62.6 2208 372 500 74 8360/7960 18433/17551 - -
GA 400-150 10.8 157 - - 935 56.2 1981 372 500 74 8360/7960 18433/17551 - -
GA 400-200 13.8 200 - - 784 47.1 1661 372 500 74 8360/7960 18433/17551 - -
GA 450-100 7.4 107 - - 1334 80.4 2835 447 600 75 8360/8620 18433/19007 - -
GA 450-125 9.1 132 - - 1222 73.4 2589 447 600 75 8360/8620 18433/19007 - -
GA 450-150 10.8 157 - - 1126 67.7 2386 447 600 75 8360/8620 18433/19007 - -
GA 450-200 13.8 200 - - 943 56.7 1998 447 600 75 8360/8620 18433/19007 - -
GA 500-100 7.4 107 - - 1518 91.2 3217 522 700 76 7960 17551 - -
GA 500-125 9.1 132 - - 1404 84.4 2975 522 700 76 7960 17551 - -
GA 500-150 10.8 157 - - 1296 77.9 2746 522 700 76 7960 17551 - -
GA 500-200 13.8 200 - - 1114 66.9 2361 522 700 76 7960 17551 - -
GA 315 VSD
GA 315 VSD 4 58 4 58 854 51.2 1810 290 390 75 6165 13563 6615 14553
7 109 7 109 847 50.8 1795 290 390 75 6165 13563 6615 14553
10 145 9.9 143 710 42.6 1505 290 390 75 6165 13563 6615 14553
GR 110-200 Two-stage 13 bar
GR 110-200 13.8 200 13.55 196 261 15.6 553 110 150 72 3140 6908 3470 7634
GR 160-200 13.8 200 13.55 196 350 21.0 742 150 200 75 3547 7803 3877 8529
GR 200-200 13.8 200 13.55 196 442 26.5 937 185 250 78 3547 7803 3877 8529
GR 110-200 Two-stage 20 bar
GR 110-290 20 290 19.75 286 224 13.4 475 110 150 72 3140 6908 3470 7634
GR 200-290 20 290 19.75 286 384 23.0 814 185 250 78 3547 7803 3877 8529
(1) Unit performance measured according to ISO 1217, Ed.3, Annex C-1996
Reference conditions:
- absolute inlet pressure 1 bar (14.5 psi)
- intake air temperature 20 °C (68 °F)
FAD is measured at the following working pressures:
- 7.5 bar variants at 7 bar - 100 psi variants at 100 psi
- 8.5 bar variants at 8 bar - 125 psi variants at 125 psi
- 10 bar variants at 9.5 bar - 150 psi variants at 150 psi
- 13 bar variants at 12.5 bar - 200 psi variants at 193 psi
- 20 bar variants at 19 bar - 290 psi variants at 276 psi
(2) Noise level:
measured according to Pneurop / Cagi PN8NTC2.2 test code;
tolerance ±3 dB(A)
Integrated dryer:
pressure dewpoint of integrated refrigerant dryer at reference conditions:
3 to 4 °C
Integrated filter:
particle removal down to 1 micron and maximum remaining oil aerosol
of 0.1 mg/m3
Compressor
type
Dimensions
A B C
mm inch mm inch mm inch
GA 200 - 315 3386 133.3 2120 83.4 2400 94.4
GA 315 - 500A* 5855 230.5 2120 83.4 2500 98.4
GA 315 - 500W* 4173 164.3 2120 83.4 2500 98.4
GA 315 VSD 4000 157.4 2120 83.4 2400 94.4
GR 110-200 2779 109.4 1886 74.3 1990 78.3
* W = Watercooled
A = Aircooled
GA VSD / GR compressor range - 60 Hz
A
B
C
