GA 15-22/GA 11+-30/GA 15-30 VSD Atlas Copco Oil-injected Rotary Screw Compressors 11-30 kW/15-40 hp - 15 / 20 Pages

* Unit performance measured according to ISO 1217, Ed. 3, Annex C-1996.
Reference conditions:
- Absolute inlet pressure 1 bar (14.5 psi)
- Intake air temperature 20°C, 68°F
FAD is measured at the following working pressures:
- 7.5 bar versions at 7 bar
- 8,5 bar versions at 8 bar
- 10 bar versions at 9.5 bar
- 13 bar versions at 12.5 bar
** Mean noise level measured according to ISO
2151/Pneuro/Cagi PN8NTC2 test code; tolerance 2 dB(A).
Pressure dew point of integrated refrigerant dryer
of GA 15 - GA 18 - GA 22 at reference conditions 5°C, 41°F.
Air receiver size of GA 15-22 tank-mounted variants: 500L.
Added weight: 125 kg.

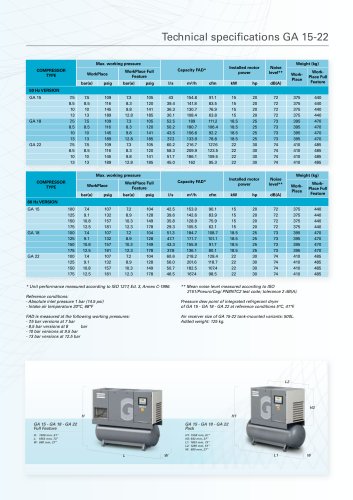

Technical specifications GA 15-22
COMPRESSOR
TYPE
Max. working pressure
Capacity FAD*
Installed motor
power
Noise
level**
Weight (kg)
WorkPlace
WorkPlace Full
Feature Work-
Place
Work-
Place Full
bar(e) psig bar(e) psig l/s m³/h cfm kW hp dB(A) Feature
50 Hz VERSION
GA 15 7.5 7.5 109 7.3 105 43 154.8 91.1 15 20 72 375 440
8.5 8.5 116 8.3 120 39.4 141.8 83.5 15 20 72 375 440
10 10 145 9.8 141 36.3 130.7 76.9 15 20 72 375 440
13 13 189 12.8 185 30.1 108.4 63.8 15 20 72 375 440
GA 18 7.5 7.5 109 7.3 105 52.5 189 111.2 18.5 25 73 395 470
8.5 8.5 116 8.3 120 50.2 180.7 106.4 18.5 25 73 395 470
10 10 145 9.8 141 43.5 156.6 92.2 18.5 25 73 395 470
13 13 189 12.8 185 37.2 133.9 78.8 18.5 25 73 395 470
GA 22 7.5 7.5 109 7.3 105 60.2 216.7 127.6 22 30 74 410 485
8.5 8.5 116 8.3 120 58.3 209.9 123.5 22 30 74 410 485
10 10 145 9.8 141 51.7 186.1 109.5 22 30 74 410 485
13 13 189 12.8 185 45.0 162 95.3 22 30 74 410 485
COMPRESSOR
TYPE
Max. working pressure
Capacity FAD*
Installed motor
power
Noise
level**
Weight (kg)
WorkPlace
WorkPlace Full
Feature Work-
Place
Work-
Place Full
bar(e) psig bar(e) psig l/s m³/h cfm kW hp dB(A) Feature
60 Hz VERSION
GA 15 100 7.4 107 7.2 104 42.5 153.0 90.1 15 20 72 375 440
125 9.1 132 8.9 128 39.6 142.6 83.9 15 20 72 375 440
150 10.8 157 10.3 149 35.8 128.9 75.9 15 20 72 375 440
175 12.5 181 12.3 178 29.3 105.5 62.1 15 20 72 375 440
GA 18 100 7.4 107 7.2 104 51.3 184.7 108.7 18.5 25 73 395 470
125 9.1 132 8.9 128 47.7 171.7 101.1 18.5 25 73 395 470
150 10.8 157 10.3 149 43.3 155.9 91.7 18.5 25 73 395 470
175 12.5 181 12.3 178 37.8 136.1 80.1 18.5 25 73 395 470
GA 22 100 7.4 107 7.2 104 60.6 218.2 128.4 22 30 74 410 485
125 9.1 132 8.9 128 56.0 201.6 118.7 22 30 74 410 485
150 10.8 157 10.3 149 50.7 182.5 107.4 22 30 74 410 485
175 12.5 181 12.3 178 46.5 167.4 98.5 22 30 74 410 485
GA 15 - GA 18 - GA 22
Pack
H1: 1558 mm, 61”
H2: 932 mm, 37”
L1: 1853 mm, 73”
L2: 1285 mm, 51”
W: 680 mm, 27”
H1
H2
L1
L2
W
GA 15 - GA 18 - GA 22
Full Feature
H: 1558 mm, 61”
L: 1853 mm, 73”
W: 680 mm, 27”
H
W L
