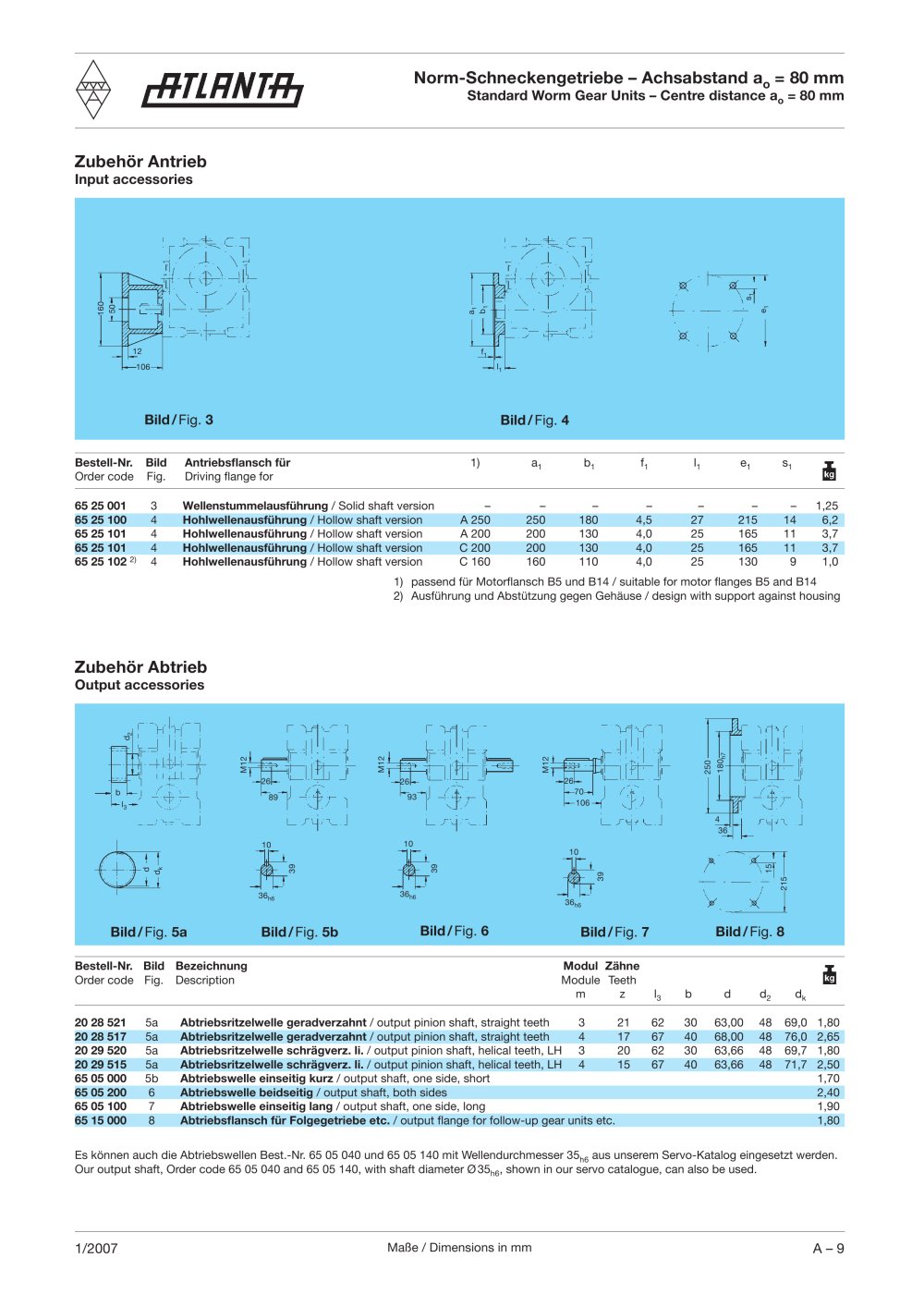

Norm-Schneckengetriebe – Achsabstand a

o

= 80 mm

Standard Worm Gear Units – Centre distance a

o

= 80 mm

Zubehör Antrieb

Input accessories

1 s 1 1 1 e 50160 b a 12 f 1 106 l 1

Fig. 3Bild / Fig. 4 Bild /

Bestell-Nr. Bild Antriebsflansch für 1) a
1 b
1 f
1 l
1 e
1 s
1 Order code Fig. Driving flange for 65 25 001 3 Wellenstummelausführung / Solid shaft version – – – – – – – 1,25 65 25 100 4 Hohlwellenausführung / Hollow shaft version A 250 250 180 4,5 27 215 14 6,2 65 25 101 4 Hohlwellenausführung / Hollow shaft version A 200 200 130 4,0 25 165 11 3,7 65 25 101 4 Hohlwellenausführung / Hollow shaft version C 200 200 130 4,0 25 165 11 3,7 65 25 102
2) 4 Hohlwellenausführung / Hollow shaft version C 160 160 110 4,0 25 130 9 1,0 1) passend für Motorflansch B5 und B14 / suitable for motor flanges B5 and B142) Ausführung und Abstützung gegen Gehäuse / design with support against housing

Zubehör Abtrieb

Output accessories Bild /

2 d h7 M12 M12 M12 250180 2626 bl 89 93 3 1067026 364 1036 10 10 k dd 39 39 39 h6 36 21515 h6 36 h6

Fig. 5aBild / Fig. 5bBild / Fig. 6 Fig. 7Bild / Fig. 8Bild /

Bestell-Nr. Bild Bezeichnung Modul Zähne Order code Fig. Description Module Teeth m z l
3 b d d
2 d
k 20 28 521 5a Abtriebsritzelwelle geradverzahnt / output pinion shaft, straight teeth 3 21 62 30 63,00 48 69,0 1,80 20 28 517 5a Abtriebsritzelwelle geradverzahnt / output pinion shaft, straight teeth 4 17 67 40 68,00 48 76,0 2,65 20 29 520 5a Abtriebsritzelwelle schrägverz. li. / output pinion shaft, helical teeth, LH 3 20 62 30 63,66 48 69,7 1,80 20 29 515 5a Abtriebsritzelwelle schrägverz. li. / output pinion shaft, helical teeth, LH 4 15 67 40 63,66 48 71,7 2,50 65 05 000 5b Abtriebswelle einseitig kurz / output shaft, one side, short 1,70 65 05 200 6 Abtriebswelle beidseitig / output shaft, both sides 2,40 65 05 100 7 Abtriebswelle einseitig lang / output shaft, one side, long 1,90 65 15 000 8 Abtriebsflansch für Folgegetriebe etc. / output flange for follow-up gear units etc. 1,80 Es können auch die Abtriebswellen Best.-Nr. 65 05 040 und 65 05 140 mit Wellendurchmesser 35
h6 aus unserem Servo-Katalog eingesetzt werden.Our output shaft, Order code 65 05 040 and 65 05 140, with shaft diameter Ø 35
h6 , shown in our servo catalogue, can also be used.

Maße / Dimensions in mm
