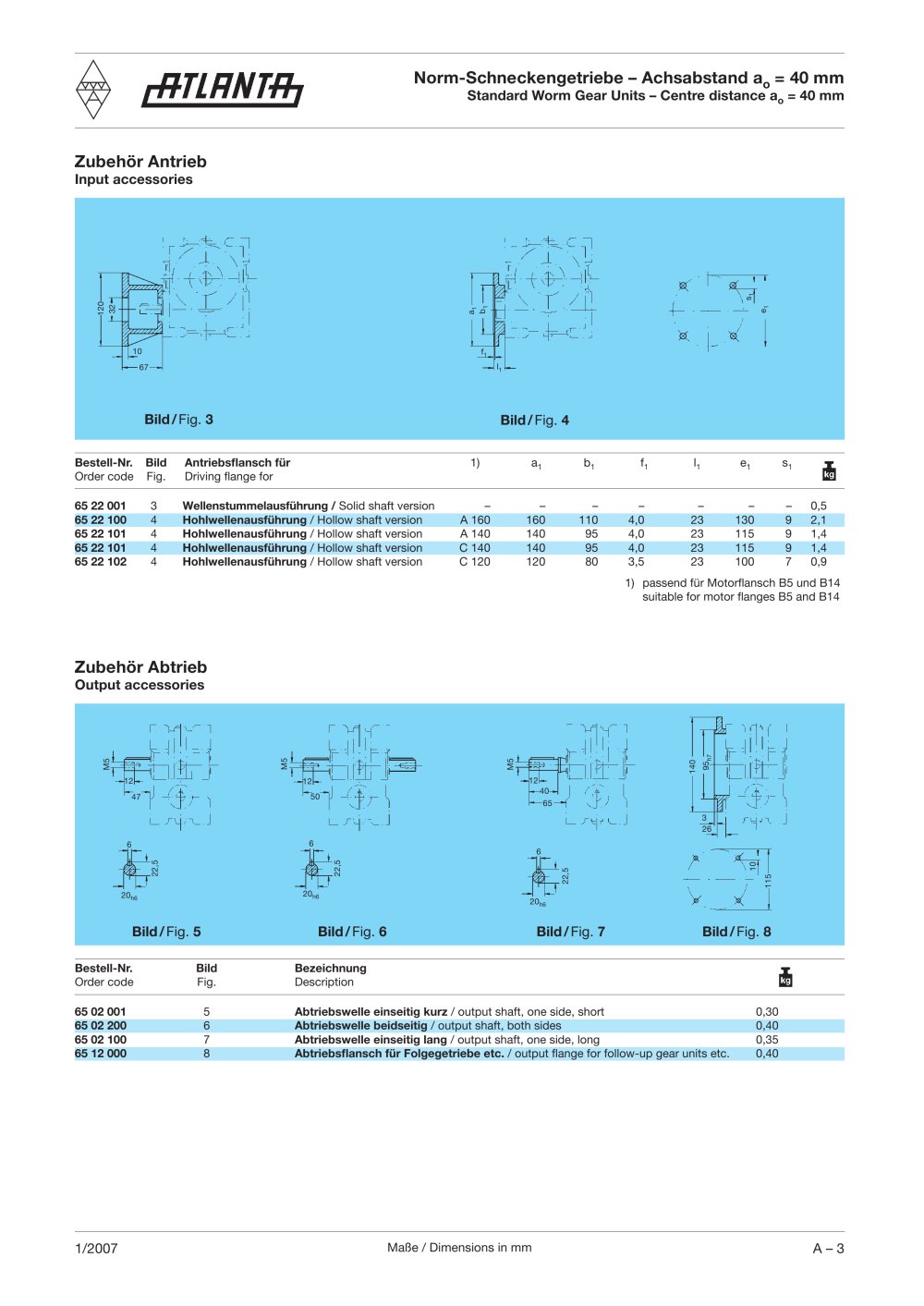

Norm-Schneckengetriebe – Achsabstand a

o

= 40 mm

Standard Worm Gear Units – Centre distance a

o

= 40 mm

Zubehör Antrieb

Input accessories

1 s 1 1 1 e 32120 b a f 1 6710 l 1

Bild / Fig. 3 Bild / Fig. 4

Bestell-Nr. Bild Antriebsflansch für 1) a
1 b
1 f
1 l
1 e
1 s
1 Order code Fig. Driving flange for 65 22 001 3 Wellenstummelausführung / Solid shaft version – – – – – – – 0,5 65 22 100 4 Hohlwellenausführung / Hollow shaft version A 160 160 110 4,0 23 130 9 2,1 65 22 101 4 Hohlwellenausführung / Hollow shaft version A 140 140 95 4,0 23 115 9 1,4 65 22 101 4 Hohlwellenausführung / Hollow shaft version C 140 140 95 4,0 23 115 9 1,4 65 22 102 4 Hohlwellenausführung / Hollow shaft version C 120 120 80 3,5 23 100 7 0,9 1) passend für Motorflansch B5 und B14 suitable for motor flanges B5 and B14

Zubehör Abtrieb

Output accessories

h7 M5 M5 M5 14095 1247 1250 124065 326 620 6 6 10115 22,5 22,5 22,5 h6 20 h6 20 h6

Fig. 5 Bild / Fig. 6Bild / Fig. 7Bild / Bild / Fig. 8

Bestell-Nr. Bild Bezeichnung Order code Fig. Description 65 02 001 5 Abtriebswelle einseitig kurz / output shaft, one side, short 0,30 65 02 200 6 Abtriebswelle beidseitig / output shaft, both sides 0,40 65 02 100 7 Abtriebswelle einseitig lang / output shaft, one side, long 0,35 65 12 000 8 Abtriebsflansch für Folgegetriebe etc. / output flange for follow-up gear units etc. 0,40

Maße / Dimensions in mm
