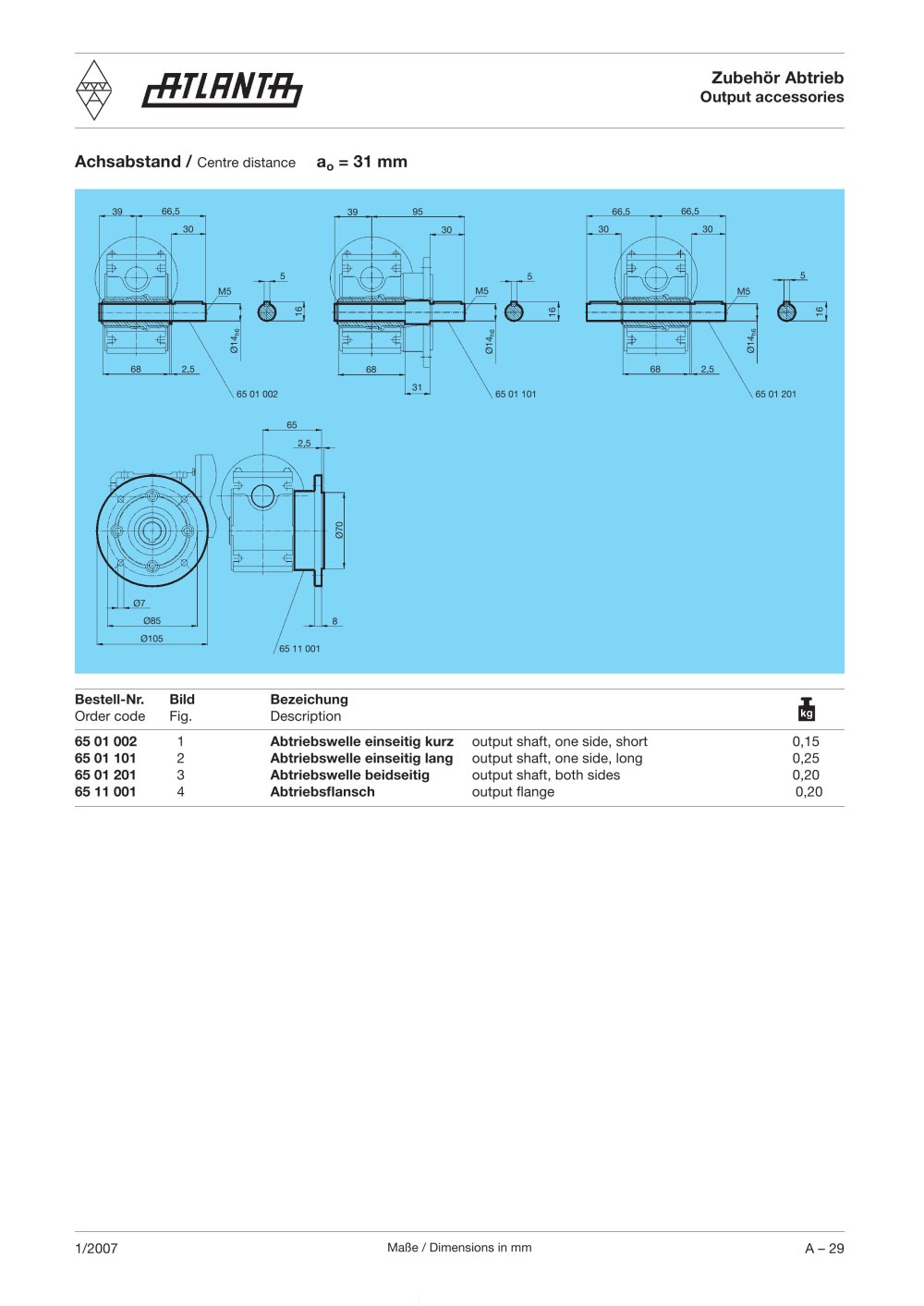

Zubehör Abtrieb
Output accessories
Achsabstand /
Centre distancea
o= 31 mm
3966,530 682,5M55 399530 6831 M55 66,566,530 682,5M55 30 65 Ø105Ø85Ø78 2,5 16 Ø14 16 16 Ø14 h6 h6 h6 Ø14 65 01 00265 01 10165 01 201 65 11 001 Ø70 Bestell-Nr. Bild Bezeichung Order code Fig. Description 65 01 002 1 Abtriebswelle einseitig kurz output shaft, one side, short 0,15 65 01 101 2 Abtriebswelle einseitig lang output shaft, one side, long 0,25 65 01 201 3 Abtriebswelle beidseitig output shaft, both sides 0,20 65 11 001 4 Abtriebsflansch output flange 0,20Maße / Dimensions in mm A – 291/2007
