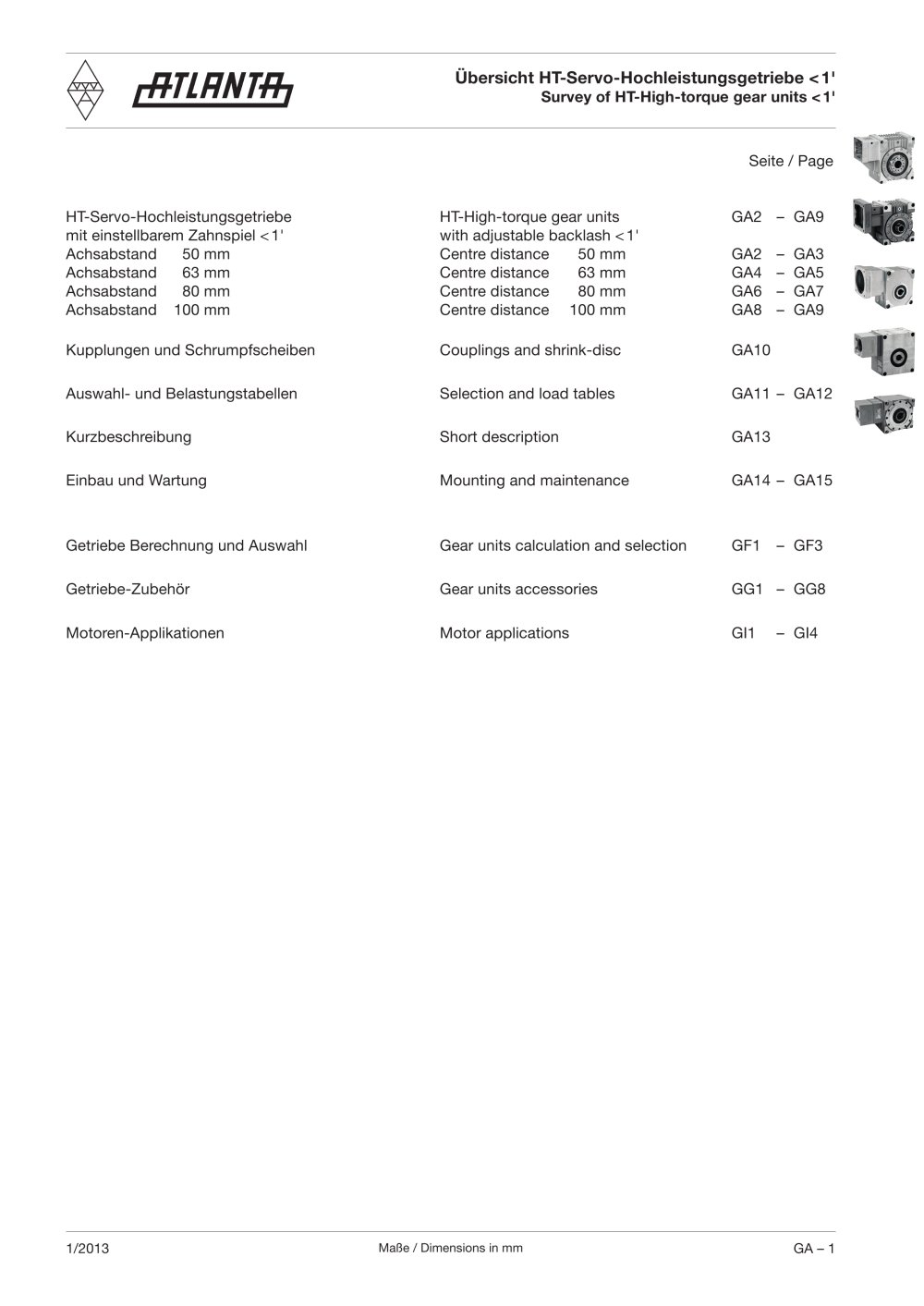

Ůbersicht HT-Servo-Hochleistungsgetriebe < 1' Survey of HT-High-torque gear units < 1' HT-Servo-Hochleistungsgetriebe mit einstellbarem Zahnspiel < 1' Achsabstand 50 mm Achsabstand 63 mm Achsabstand 80 mm Achsabstand 100 mm Kupplungen und Schrumpfscheiben Auswahl- und Belastungstabellen Kurzbeschreibung HT-High-torque gear units with adjustable backlash < 1' Centre distance 50 mm Centre distance 63 mm Centre distance 80 mm Centre distance 100 mm Couplings and shrink-disc Selection and load tables Short description Seite / Page GA2 - GA9 GA2 - GA3 GA4 - GA5 GA6 - GA7 GA8 - GA9 GA10 GA11 - GA12 GA13 Einbau und Wartung Mounting and maintenance GA14 - GA15 Getriebe Berechnung und Auswahl Gear units calculation and selection GF1 - GF3 Getriebe-Zubehôr Gear units accessories GG1 - GG8 GI1 - GI4 Motoren-Applikationen Motor applications 1/2012 MaBe / Dimensions in mm GA - 1
