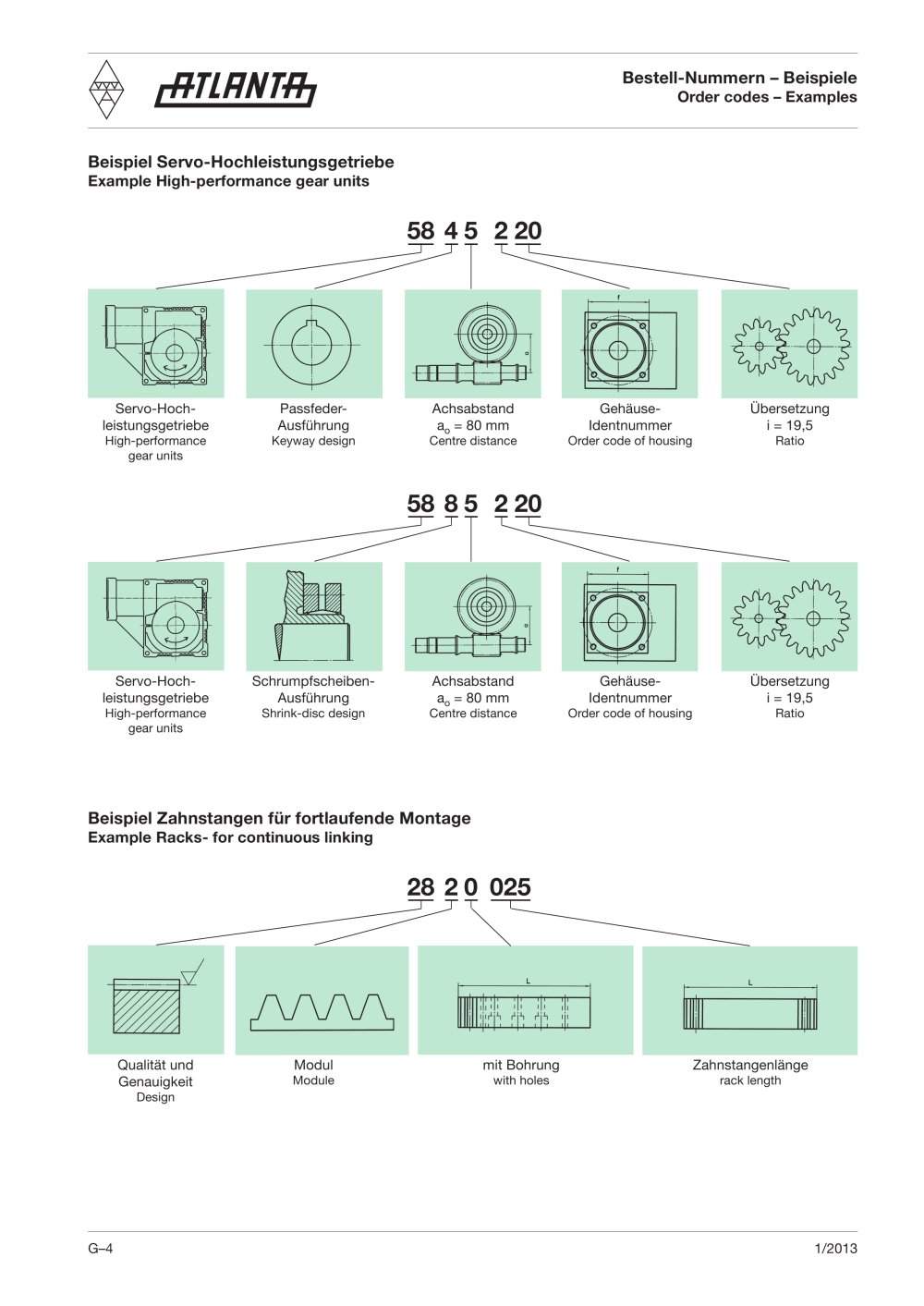

rRTLRNTfh Bestell-Nummern - Beîspieie Order codes * Examples Beispiel Servo-Hochleistungsgetriebe Example Hrgh-performance gear units 58 4 5 2 20 Servo-Hoch-leistungsgetriebe High-pertomiance gear unrts Passfeder- Ausfiihrung Keyway design Achsabstand a^ = 80 mm Centre distance Gehâuse- Identnummer Order code of r>ousing Ûbersetzung I -19,5 Ratio 58 85 220 Servo-Hoch- lelstungsgethebe H igh - perform ance gear unrts Schrumpfschelben- AusfUhrung Shnnk-disc design Achsabstand a0 = 80 mm Centre distance Gehâuse- Identnummer Ordor code of housing Ubersetzung I = 19.5 Ratio Beispiel Zahnstangen fur fortlaufende Montage Example Racks- for continuous linking 28 2 0 025 mît Bohrung with hôtes n——1 Ouailtât und Genauigkert Zahnstangen fange rack length Modul Module 1/2012
