49 0,015 A 0,015 B -0,018 34 39

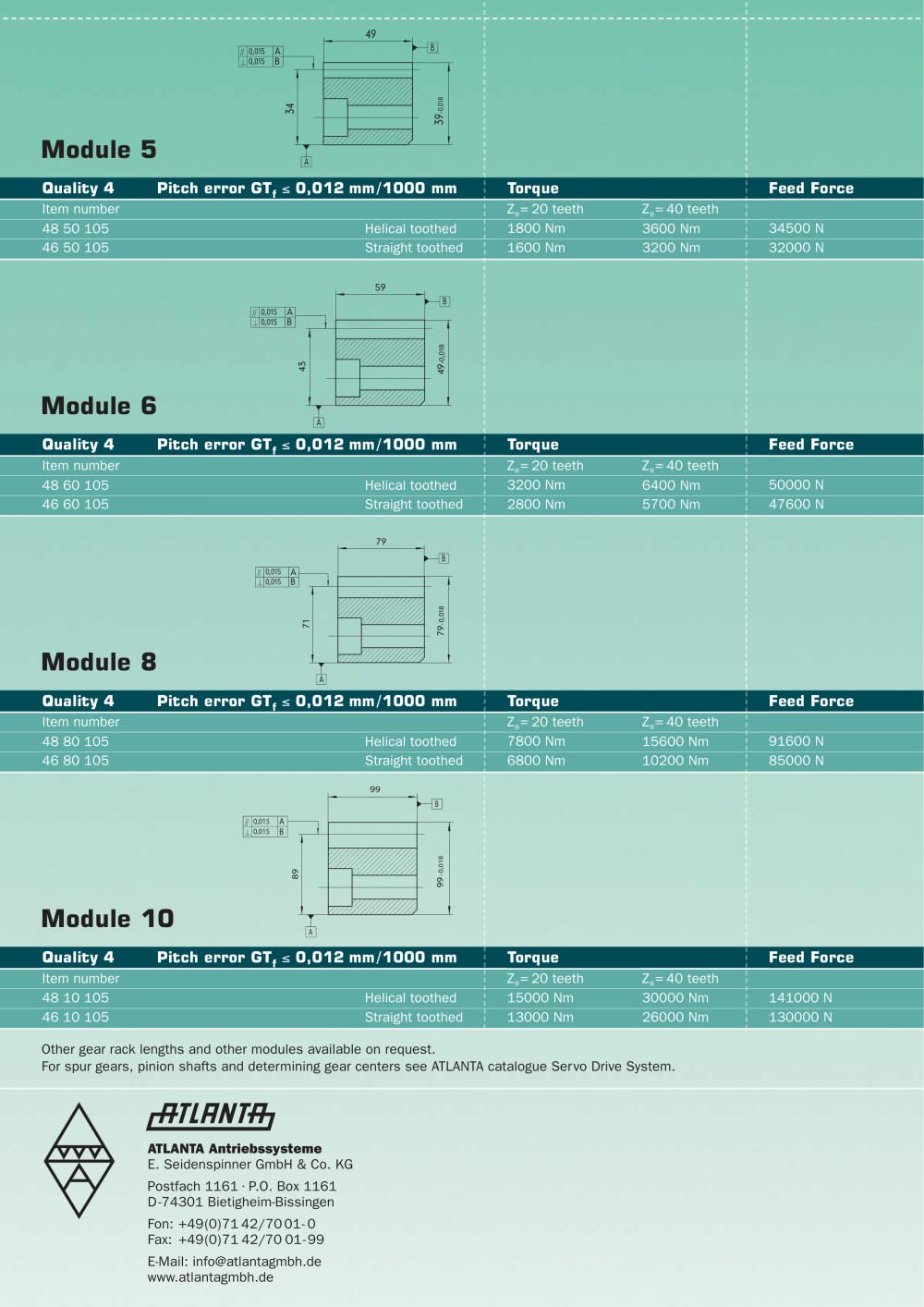

Precision-racks quality 4 - 19987 Module 5

A B

Quality 4 Pitch error GT

f

0,012 mm/1000 mm TorqueFeed Force

Item number Z
R =20 teethZ
R =40 teeth48 50 105 Helical toothed1800 Nm3600 Nm34500 N46 50 105 Straight toothed1600 Nm3200 Nm32000 N
59 0,015 AB 0,015 -0,018 43 49

Module 6

A B

Quality 4 Pitch error GT

f

0,012 mm/1000 mm TorqueFeed Force

Item number Z
R =20 teethZ
R =40 teeth48 60 105 Helical toothed3200 Nm6400 Nm50000 N46 60 105 Straight toothed2800 Nm5700 Nm47600 N
79 0,015 0,015 BA -0,018 71 79

Module 8

A B

Quality 4 Pitch error GT

f

0,012 mm/1000 mm TorqueFeed Force

Item number Z
R =20 teethZ
R =40 teeth48 80 105 Helical toothed7800 Nm15600 Nm91600 N46 80 105 Straight toothed6800 Nm10200 Nm85000 N
99 0,015 AB 0,015 -0,018 89 99

Module 10

A B

Quality 4 Pitch error GT

f

0,012 mm/1000 mm TorqueFeed Force

Item number Z
R =20 teethZ
R =40 teeth48 10 105 Helical toothed15000 Nm30000 Nm141000 N46 10 105 Straight toothed13000 Nm26000 Nm130000 N Other gear rack lengths and other modules available on request.For spur gears, pinion shafts and determining gear centers see ATLANTA catalogue Servo Drive System. ATLANTA Antriebssysteme E. Seidenspinner GmbH & Co. KG Postfach 1161
