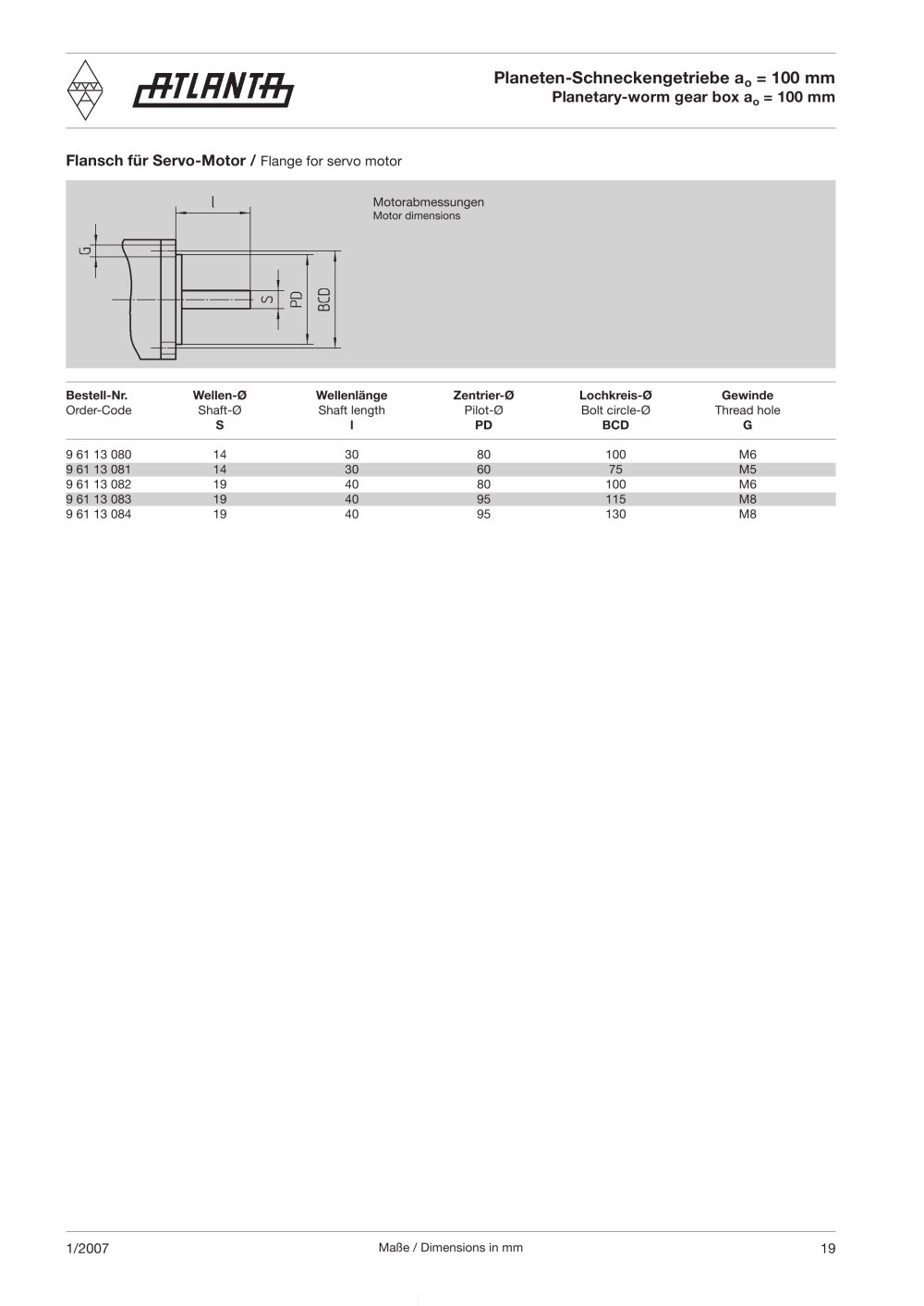

Planeten-Schneckengetriebe a
o= 100 mm
Planetary-worm gear box a
o= 100 mmFlansch für Servo-Motor /
Flange for servo motor
MotorabmessungenMotor dimensions Bestell-Nr. Wellen-Ø Wellenlänge Zentrier-Ø Lochkreis-Ø Gewinde Order-Code Shaft-Ø Shaft length Pilot-Ø Bolt circle-Ø Thread hole S l PD BCD G 9 61 13 080 14 30 80 100 M69 61 13 081 14 30 60 75 M5 9 61 13 082 19 40 80 100 M6 9 61 13 083 19 40 95 115 M8 9 61 13 084 19 40 95 130 M8
