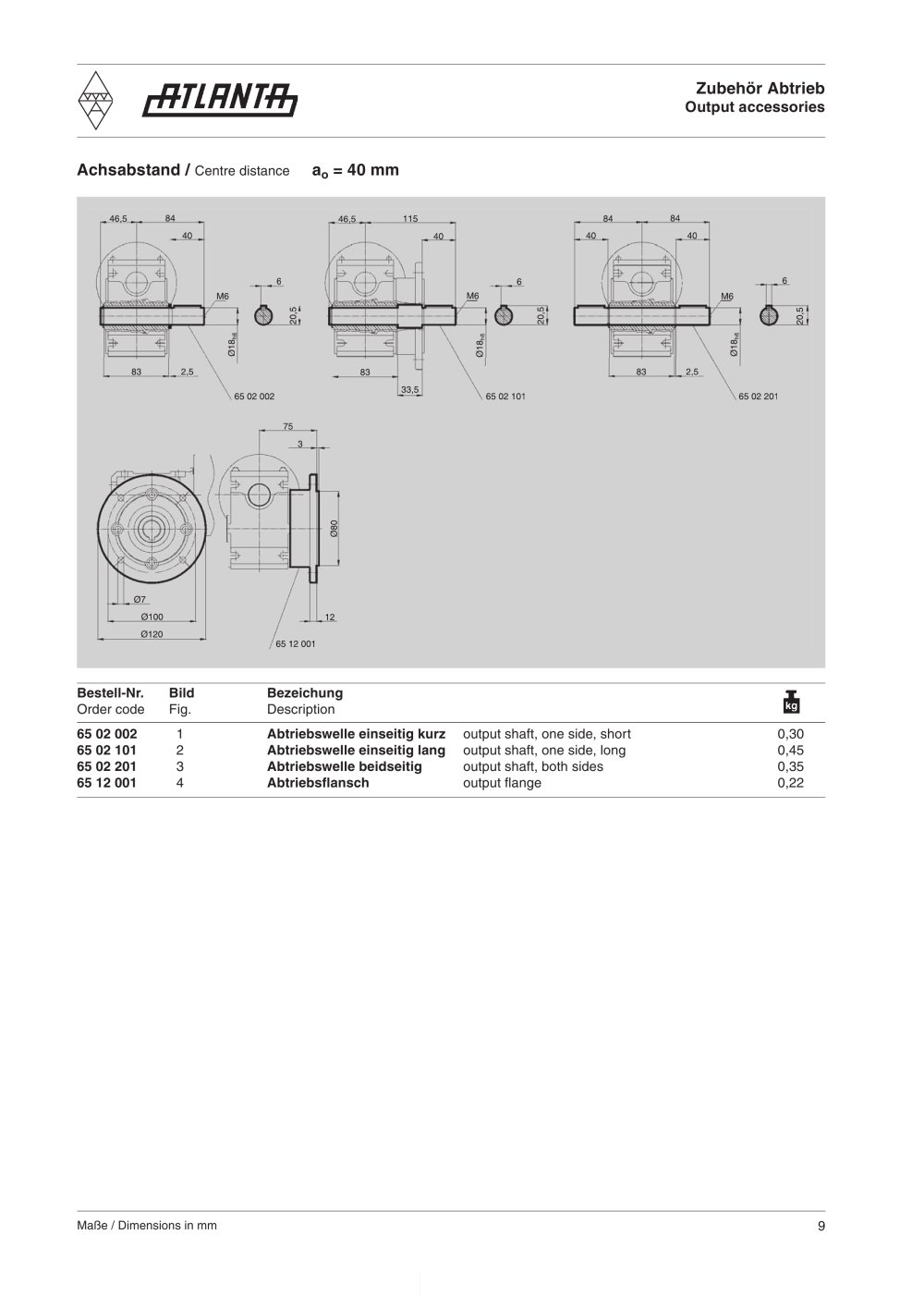

Bestell-Nr.
Order code
Fig.
Bezeichung
Description
i
65 02 002
1
Abtriebswelle einseitig kurz
output shaft, one side, short
0,30
65 02 101
2
Abtriebswelle einseitig lang
output shaft, one side, long
0,45
65 02 201
3
Abtriebswelle beidseitig
output shaft, both sides
0,35
65 12 001
4
Abtriebsflansch
output fl ange
0,22
