PITOT STATIC TESTER - ADSE 745 - 1 Pages

  1. P. 1

Catalogue excerpts

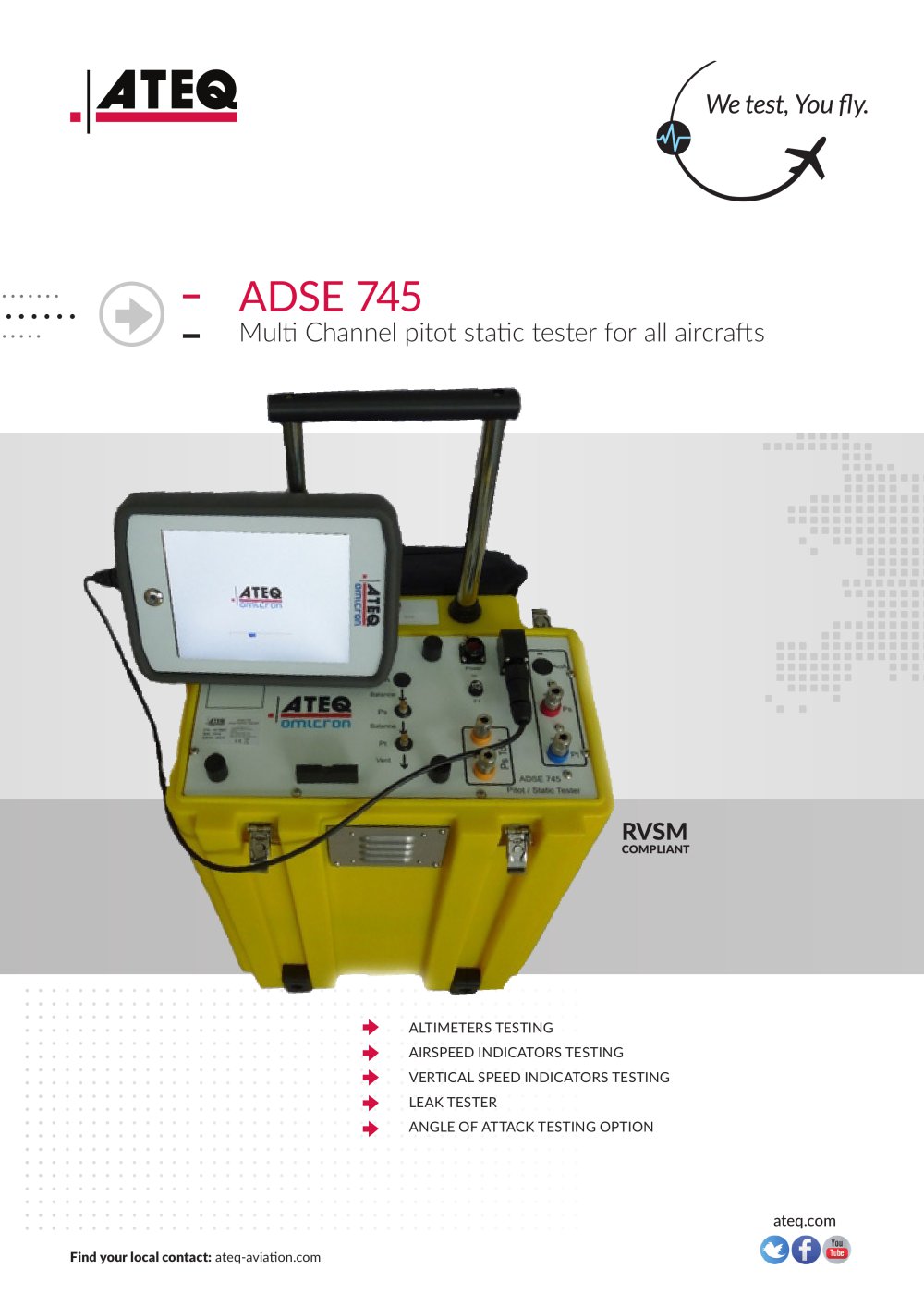

H A N G A R / TA R M A C ADSE 745 PITOT / STATIC TESTER MULTI CHANNEL PITOT STATIC TESTER FOR ALL AIRCRAFTS → → → → → → → Main Features ALTIMETERS TESTING AIRSPEED INDICATORS TESTING VERTICAL SPEED INDICATORS TESTING AIR DATA COMPUTERS TESTING PRESSURE SENSORS TESTING LEAK TESTER ANGLE OF ATTACK TESTING OPTION • Built-in pressure and vacuum pumps • Liquid crystal colour display with touch sensitive screen for operator instructions/help • Remote control unit based on Windows CE tablet PC • Complete self check of set before use • High accuracy, high resolution • RVSM compliant • Programmable leak test • Programmable flight envelope to protect equipment under test • All four primary flight parameters display ed simultaneously • Programmable (password write protected) test schedules – 24 programmes available • Selectable pressure units: hPa; mb; in Hg; mmHg; ft; m; kts; km/h, ft/min; hm/min, Mach number RVSM COMPLIANT General details Temperature range Power supply Case Physical Calibration Ease of Use Ease of maintenance Operating -10° to 50°C (14° to 122°F) Storage -20° to +60°C (–4° to 140°F) 90/240V, 50 to 400Hz AC, 150VA Completely weatherproof, meets EMC requirements MIL STD 462D 320x270x715mm (12.5 x 10.6 x 28.1 inch) (case) 440x420x715mm (17.3 x 16.5 x 28.1 inch) (overall) - 32kg (71 lbs) Recommended period 12 months Remote touch screen Wheeled case for manoeuvrability Integrated bag for cables and hoses Maintenance limited to calibration, regular external cleaning and exchange of filters (with the calibration) Optional Multi-pressure outlet (2 Ps & 2 Pt) variant DC Power supply: 17 to 32V DC Rechargeable 24V battery pack (2h) Bigger Pumps: 80,000ft - 15,000ft/min (up to 100,000ft - 60,000ft/min (Volume dependant) Low range Pt sensor: 350 kts max for better accuracy Remote Control Software for PC (Windows CE) AoA option The ADSE 745 caters fully for all aircraft types and the different electrical power supplies. It can be used for testing high performance civil and military aircraft, fix and rotary wing. The multi-pressure outlets option can suit the more complex pilot-static-systems. This Pitot Static tester is designed primarily for flightline use to cover the testing of all barometric and manometric pressure instrument systems. The large touch screen display, with on-screen help, enables all checks to be carried out easily on the flight deck or in the cockpit, by a single operator. The test set is robust and housed in a mobile weatherproof case fitted with rugged tyre wheels. An attached bag contains the pressure hoses and electrical cables. Accessories to suit specific applications may be supplied. ATEQ Omicron - Test instruments for all aircrafts Measurement specification in standards conditions Function Altitude Range -2,300 to 60,000ft (up to -4,000ft to 100,000ft optional) Altitude rate + 0 to 6,000ft/min — (up to + 60,000m/min optional) — 10 to 800 kts (up to 1000 kts optional) Indicated airspeed Mach N° 0.1 to 4.0 Mach (0.1 to 10 Mach optional) Static sensor 30 to 1200 mbar Pitot sensor 30 to 3000 mbar Accuracy + 1.5ft at 0ft — + 4ft at 30,000ft — + 16ft at 60,000ft — + 1% — + 1% — + 1kt at 50kts (+ 0.5kts at 50kts optional) — — + 0.2kt at 350kts (+ 0.1kts at 350kts opt.) — — + 0.04kt at 650kts — + 0.001M at 0,8M/25,000ft — + 0.002M at 1,7M/30,000ft — 0,01% FS 0,01% FS - Continuiting development sometimes necessitates specification changes without notice. - Special options can be analyzed and developped on request. 6 ADSE 745 Typical screen display
